Provides a hash table of BUCKETs as an implementation for a timer queue. More...

#include <Timer_Hash_T.h>

Inheritance diagram for ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >:

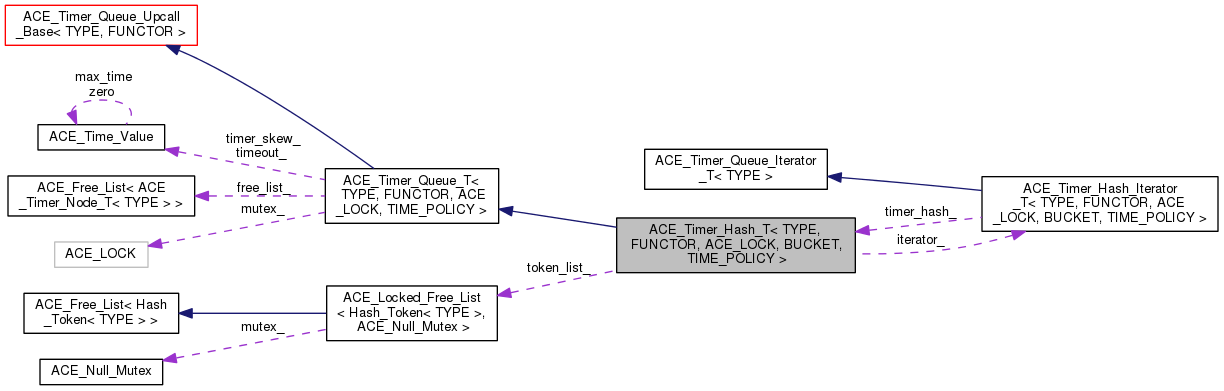

Collaboration diagram for ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >:

Public Types
typedef ACE_Timer_Hash_Iterator_T < TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >	HASH_ITERATOR
	Type of iterator.
typedef ACE_Timer_Queue_T < TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >	Base_Timer_Queue
	Type inherited from.
Public Member Functions
	ACE_Timer_Hash_T (size_t table_size, FUNCTOR upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())
	ACE_Timer_Hash_T (FUNCTOR upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())
virtual	~ACE_Timer_Hash_T (void)
	Destructor.
virtual bool	is_empty (void) const
	True if queue is empty, else false.
virtual const ACE_Time_Value &	earliest_time (void) const
virtual int	reset_interval (long timer_id, const ACE_Time_Value &interval)
virtual int	cancel (const TYPE &type, int dont_call_handle_close=1)
virtual int	cancel (long timer_id, const void **act=0, int dont_call_handle_close=1)
virtual int	close (void)
virtual int	expire (void)
virtual int	expire (const ACE_Time_Value &current_time)
virtual ACE_Timer_Queue_Iterator_T < TYPE > &	iter (void)
	Returns a pointer to this ACE_Timer_Queue's iterator.
virtual ACE_Timer_Node_T< TYPE > *	remove_first (void)
	Removes the earliest node from the queue and returns it.
virtual void	dump (void) const
	Dump the state of an object.
virtual ACE_Timer_Node_T< TYPE > *	get_first (void)
	Reads the earliest node from the queue and returns it.
Protected Member Functions
virtual void	free_node (ACE_Timer_Node_T< TYPE > *)
	Factory method that frees a previously allocated node.
Private Member Functions
virtual long	schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)
virtual int	dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
	Non-locking version of dispatch_info ()
virtual void	reschedule (ACE_Timer_Node_T< TYPE > *)
	Reschedule an "interval" ACE_Timer_Node.
void	find_new_earliest (void)
	Finds the earliest node.
	ACE_Timer_Hash_T (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)
void	operator= (const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > &)
Private Attributes
size_t	size_
	Keeps track of the size of the queue.
BUCKET **	table_
	Table of BUCKETS.
size_t	table_size_
	Keeps track of the size of table_.
ACE_Timer_Hash_Upcall< TYPE, FUNCTOR, ACE_LOCK >	table_functor_
	Functor used for the table's timer queues.
size_t	earliest_position_
	Index to the position with the earliest entry.
HASH_ITERATOR *	iterator_
	Iterator used to expire timers.
ACE_Locked_Free_List < Hash_Token< TYPE > , ACE_Null_Mutex >	token_list_
Friends
class	ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >
	Iterator is a friend.

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET, typename TIME_POLICY = ACE_Default_Time_Policy>
class ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >

Provides a hash table of BUCKETs as an implementation for a timer queue.

This implementation uses a hash table of BUCKETs. The hash is based on the time_value of the event. Unlike other Timer Queues, ACE_Timer_Hash does not expire events in strict order, i.e., all events are expired after their deadline. But two events may expired out of order as defined by their deadlines.

Member Typedef Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

typedef ACE_Timer_Queue_T<TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::Base_Timer_Queue

Type inherited from.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

typedef ACE_Timer_Hash_Iterator_T<TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::HASH_ITERATOR

Type of iterator.

Constructor & Destructor Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::ACE_Timer_Hash_T	(	size_t	table_size,
		FUNCTOR *	upcall_functor = `0`,
		ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	freelist = `0`,
		TIME_POLICY const &	time_policy = `TIME_POLICY()`
	)

Default constructor. table_size determines the size of the hash table. upcall_functor is the instance of the FUNCTOR to be used by the buckets. If upcall_functor is 0, a default FUNCTOR will be created.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::ACE_Timer_Hash_T	(	FUNCTOR *	upcall_functor = `0`,
		ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	freelist = `0`,
		TIME_POLICY const &	time_policy = `TIME_POLICY()`
	)

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the queue. If upcall_functor is 0, Timer Hash will create a default FUNCTOR. freelist the freelist of timer nodes. If 0, then a default freelist will be created. The default size will be ACE_DEFAULT_TIMERS and there will be no preallocation.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::~ACE_Timer_Hash_T ( void )

virtual

Destructor.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::ACE_Timer_Hash_T ( const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > & )

private

Member Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::cancel	(	const TYPE &	type,
		int	dont_call_handle_close = `1`
	)

virtual

Cancel all timer associated with type. If <dont_call> is 0 then the <functor> will be invoked. Returns number of timers cancelled. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::cancel	(	long	timer_id,
		const void **	act = `0`,
		int	dont_call_handle_close = `1`
	)

virtual

Cancel the single timer that matches the timer_id value (which was returned from the <schedule> method). If act is non-NULL then it will be set to point to the ``magic cookie'' argument passed in when the timer was registered. This makes it possible to free up the memory and avoid memory leaks. If <dont_call> is 0 then the <functor> will be invoked. Returns 1 if cancellation succeeded and 0 if the timer_id wasn't found. If any valid timer is not cancelled before destruction of this instance of ACE_Timer_Hash_T then user will get a memory leak.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::close ( void )

virtual

Destroy timer queue. Cancels all timers.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::dispatch_info_i	(	const ACE_Time_Value &	current_time,
		ACE_Timer_Node_Dispatch_Info_T< TYPE > &	info
	)

privatevirtual

Non-locking version of dispatch_info ()

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::dump ( void ) const

virtual

Dump the state of an object.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

const ACE_Time_Value & ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::earliest_time ( void ) const

virtual

Returns the time of the earlier node in the <ACE_Timer_Hash>. Must be called on a non-empty queue.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::expire ( void )

virtual

Run the <functor> for all timers whose values are <= gettimeofday. Also accounts for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::expire ( const ACE_Time_Value & current_time )

virtual

Run the <functor> for all timers whose values are <= current_time. This does not account for <timer_skew>. Returns the number of timers canceled.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::find_new_earliest ( void )

private

Finds the earliest node.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::free_node ( ACE_Timer_Node_T< TYPE > * node )

protectedvirtual

Factory method that frees a previously allocated node.

Reimplemented from ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::get_first ( void )

virtual

Reads the earliest node from the queue and returns it.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

bool ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::is_empty ( void ) const

virtual

True if queue is empty, else false.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

ACE_Timer_Queue_Iterator_T< TYPE > & ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::iter ( void )

virtual

Returns a pointer to this ACE_Timer_Queue's iterator.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::operator= ( const ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET > & )

private

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

ACE_Timer_Node_T< TYPE > * ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::remove_first ( void )

virtual

Removes the earliest node from the queue and returns it.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

void ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::reschedule ( ACE_Timer_Node_T< TYPE > * expired )

privatevirtual

Reschedule an "interval" ACE_Timer_Node.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

int ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::reset_interval	(	long	timer_id,
		const ACE_Time_Value &	interval
	)

virtual

Resets the interval of the timer represented by timer_id to interval, which is specified in relative time to the current <gettimeofday>. If interval is equal to ACE_Time_Value::zero, the timer will become a non-rescheduling timer. Returns 0 if successful, -1 if not.

Implements ACE_Abstract_Timer_Queue< TYPE >.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY >

long ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::schedule_i	(	const TYPE &	type,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval
	)

privatevirtual

Schedule type that will expire at future_time, which is specified in absolute time. If it expires then act is passed in as the value to the <functor>. If interval is != to ACE_Time_Value::zero then it is used to reschedule the type automatically, using relative time to the current <gettimeofday>. This method returns a <timer_id> that is a pointer to a token which stores information about the event. This <timer_id> can be used to cancel the timer before it expires. Returns -1 on failure.

Implements ACE_Timer_Queue_T< TYPE, FUNCTOR, ACE_LOCK, TIME_POLICY >.

Friends And Related Function Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

friend class ACE_Timer_Hash_Iterator_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >

friend

Iterator is a friend.

Member Data Documentation

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::earliest_position_

private

Index to the position with the earliest entry.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

HASH_ITERATOR* ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::iterator_

private

Iterator used to expire timers.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::size_

private

Keeps track of the size of the queue.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

BUCKET** ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::table_

private

Table of BUCKETS.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

ACE_Timer_Hash_Upcall<TYPE, FUNCTOR, ACE_LOCK> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::table_functor_

private

Functor used for the table's timer queues.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

size_t ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::table_size_

private

Keeps track of the size of table_.

template<class TYPE , class FUNCTOR , class ACE_LOCK , class BUCKET , typename TIME_POLICY = ACE_Default_Time_Policy>

ACE_Locked_Free_List<Hash_Token<TYPE>, ACE_Null_Mutex> ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >::token_list_

private

Hash_Token is usually allocated in schedule but its deallocation is problematic and token_list_ helps with this.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET, typename TIME_POLICY = ACE_Default_Time_Policy> class ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<class TYPE, class FUNCTOR, class ACE_LOCK, class BUCKET, typename TIME_POLICY = ACE_Default_Time_Policy>
class ACE_Timer_Hash_T< TYPE, FUNCTOR, ACE_LOCK, BUCKET, TIME_POLICY >
