ACE_Framework_Repository Class Reference

Contains all framework components used by an application. More...

#include <Framework_Component.h>

Inheritance diagram for ACE_Framework_Repository:

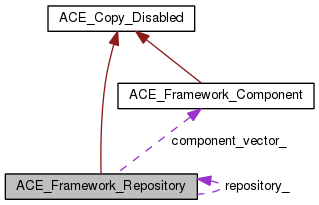

Collaboration diagram for ACE_Framework_Repository:

List of all members.

Public Types
enum	{ DEFAULT_SIZE = ACE_DEFAULT_FRAMEWORK_REPOSITORY_SIZE }
Public Member Functions
	~ACE_Framework_Repository (void)
int	open (int size=DEFAULT_SIZE)
	Initialize the repository.
int	close (void)
int	register_component (ACE_Framework_Component *fc)
int	remove_component (const ACE_TCHAR *name)
int	remove_dll_components (const ACE_TCHAR *dll_name)
	Remove all components associated with a particular dll.
int	current_size (void) const
	Return the current size of the repository.
int	total_size (void) const
	Return the total size of the repository.
void	dump (void) const
	Dump the state of an object.
Static Public Member Functions
static ACE_Framework_Repository *	instance (int size=ACE_Framework_Repository::DEFAULT_SIZE)
	Get pointer to a process-wide ACE_Framework_Repository.
static void	close_singleton (void)
	Delete the dynamically allocated Singleton.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
	ACE_Framework_Repository (int size=ACE_Framework_Repository::DEFAULT_SIZE)
	Initialize the repository.
Private Member Functions
int	remove_dll_components_i (const ACE_TCHAR *dll_name)
	Actually removes the dll components, must be called with locks held.
void	compact (void)
Private Attributes
ACE_Framework_Component **	component_vector_
	Contains all the framework components.
int	current_size_
	Current number of components.
int	total_size_
	Maximum number of components.
ACE_SYNCH_MUTEX	lock_
	Synchronization variable for the repository.
Static Private Attributes
static ACE_Framework_Repository *	repository_ = 0
	Pointer to a process-wide ACE_Framework_Repository.
static sig_atomic_t	shutting_down_ = 0
Friends
class	ACE_Framework_Component

---

Detailed Description

Contains all framework components used by an application.

This class contains a vector of ACE_Framework_Component *'s. On destruction, framework components are destroyed in the reverse order that they were added originally.

---

Member Enumeration Documentation

anonymous enum

Enumerator:

DEFAULT_SIZE

---

Constructor & Destructor Documentation

ACE_Framework_Repository::~ACE_Framework_Repository

(

void

)

Close down the repository and free up dynamically allocated resources.

ACE_Framework_Repository::ACE_Framework_Repository ( int  size = ACE_Framework_Repository::DEFAULT_SIZE )

protected

Initialize the repository.

---

Member Function Documentation

int ACE_Framework_Repository::close

(

void

)

Close down the repository and free up dynamically allocated resources, also called by dtor.

void ACE_Framework_Repository::close_singleton ( void  )

static

Delete the dynamically allocated Singleton.

void ACE_Framework_Repository::compact ( void  )

private

Compact component_vector_ after components have been removed__maintains order.

int ACE_Framework_Repository::current_size ( void  ) const

inline

Return the current size of the repository.

void ACE_Framework_Repository::dump

(

void

)

const

Dump the state of an object.

ACE_Framework_Repository * ACE_Framework_Repository::instance ( int  size = ACE_Framework_Repository::DEFAULT_SIZE )

static

Get pointer to a process-wide ACE_Framework_Repository.

int ACE_Framework_Repository::open

(

int

size = DEFAULT_SIZE

)

Initialize the repository.

int ACE_Framework_Repository::register_component

(

ACE_Framework_Component *

fc

)

Insert a new component. Returns -1 when the repository is full and 0 on success.

int ACE_Framework_Repository::remove_component

(

const ACE_TCHAR *

name

)

Remove a component. Returns -1 on error or if component not found and 0 on success.

int ACE_Framework_Repository::remove_dll_components

(

const ACE_TCHAR *

dll_name

)

Remove all components associated with a particular dll.

int ACE_Framework_Repository::remove_dll_components_i ( const ACE_TCHAR *  dll_name )

private

Actually removes the dll components, must be called with locks held.

int ACE_Framework_Repository::total_size ( void  ) const

inline

Return the total size of the repository.

---

Friends And Related Function Documentation

friend class ACE_Framework_Component

friend

---

Member Data Documentation

ACE_Framework_Repository::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

ACE_Framework_Component** ACE_Framework_Repository::component_vector_

private

Contains all the framework components.

int ACE_Framework_Repository::current_size_

private

Current number of components.

ACE_SYNCH_MUTEX ACE_Framework_Repository::lock_

private

Synchronization variable for the repository.

ACE_Framework_Repository * ACE_Framework_Repository::repository_ = 0

staticprivate

Pointer to a process-wide ACE_Framework_Repository.

sig_atomic_t ACE_Framework_Repository::shutting_down_ = 0

staticprivate

Flag set when repository is the process of shutting down. This is necessary to keep from self-deadlocking since some of the components might make calls back to the repository to unload their components, e.g., ACE_DLL_Manager.

int ACE_Framework_Repository::total_size_

private

Maximum number of components.

---

The documentation for this class was generated from the following files:

• Framework_Component.h
• Framework_Component.cpp
• Framework_Component.inl
