#include <Request.h>

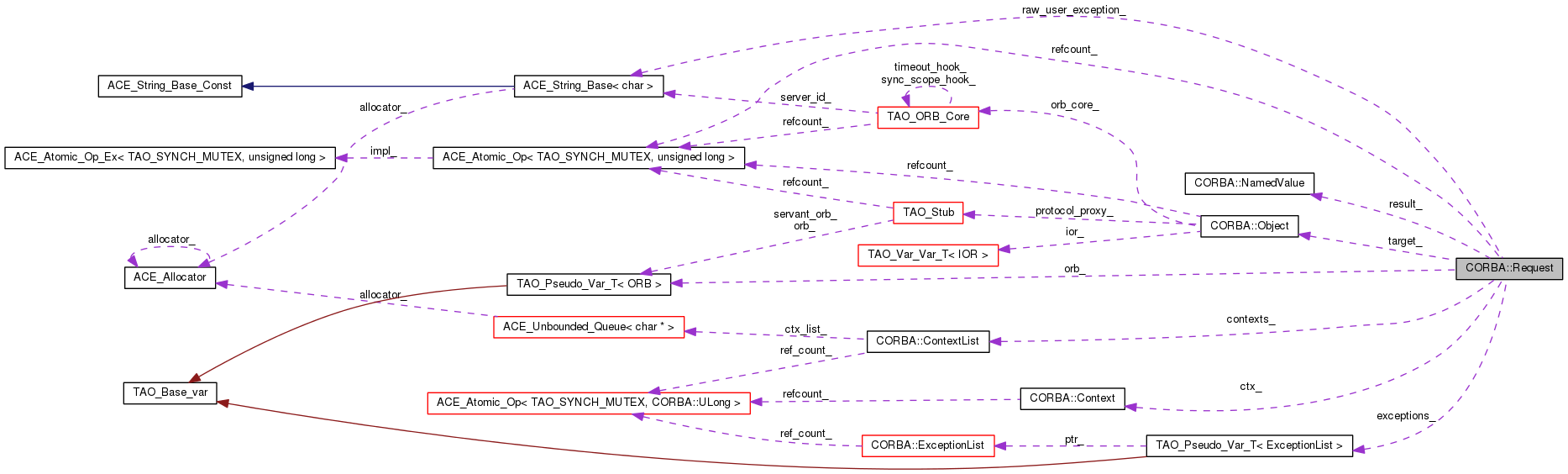

Collaboration diagram for CORBA::Request:

Public Types
typedef CORBA::Request_ptr	_ptr_type
typedef CORBA::Request_var	_var_type
typedef CORBA::Request_out	_out_type
Public Member Functions
CORBA::Object_ptr	target (void) const
	Return the target of this request.
const CORBA::Char *	operation (void) const
	Return the operation name for the request.
CORBA::NVList_ptr	arguments (void)
	Return the arguments for the request.
CORBA::NamedValue_ptr	result (void)
	Return the result for the request.
CORBA::ExceptionList_ptr	exceptions (void)
	Return the exceptions resulting from this request.
CORBA::Context_ptr	ctx (void) const
	Accessor for the Context member.
void	ctx (CORBA::Context_ptr)
	Mutator for the Context member.
CORBA::ContextList_ptr	contexts (void)
void	set_return_type (CORBA::TypeCode_ptr tc)
	Initialize the return type.
CORBA::Any &	return_value (void)
	Returns reference to Any for extraction using >>=.
void	invoke (void)
	Perform method resolution and invoke an appropriate method.
void	send_oneway (void)
	Send a oneway request.
void	handle_response (TAO_InputCDR &incoming, GIOP::ReplyStatusType reply_status)
	Callback method for deferred synchronous requests.
void	sendc (CORBA::Object_ptr handler)
CORBA::ULong	_incr_refcount (void)
CORBA::ULong	_decr_refcount (void)
void	_tao_lazy_evaluation (bool lazy_evaluation)
	Set the lazy evaluation flag.
int	_tao_byte_order (void) const
	Get the byte order member.
void	_tao_byte_order (int byte_order)
	Set the byte order member.
void	raw_user_exception (TAO_InputCDR &cdr)
ACE_CString &	raw_user_exception (void)
	Accessor for the input stream containing the exception.
CORBA::Boolean	response_received (void)
Argument manipulation helper functions.
Arg adders, one for each type of parameter, with and without optional name. Returns reference to Any for insertion using <<=.
CORBA::Any &	add_in_arg (void)
CORBA::Any &	add_in_arg (const char *name)
CORBA::Any &	add_inout_arg (void)
CORBA::Any &	add_inout_arg (const char *name)
CORBA::Any &	add_out_arg (void)
CORBA::Any &	add_out_arg (const char *name)
The 'deferred synchronous' methods.
The 'deferred synchronous' methods.
void	send_deferred (void)
void	get_response (void)
CORBA::Boolean	poll_response (void)
Static Public Member Functions
static void	_tao_reply_stub (TAO_InputCDR &_tao_reply_cdr, Messaging::ReplyHandler_ptr _tao_reply_handler, CORBA::ULong reply_status)
static CORBA::Request *	_duplicate (CORBA::Request *)
	Pseudo object methods.
static CORBA::Request *	_nil (void)
Private Member Functions
	Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op, CORBA::NVList_ptr args, CORBA::NamedValue_ptr result, CORBA::Flags flags, CORBA::ExceptionList_ptr exceptions)
	Request (CORBA::Object_ptr obj, CORBA::ORB_ptr orb, const CORBA::Char *op)
	~Request (void)
Private Attributes
CORBA::Object_ptr	target_
	Target object.
CORBA::ORB_var	orb_
	Pointer to our ORB.
const char *	opname_
	Operation name.
CORBA::NVList_ptr	args_
	Parameter list.
CORBA::NamedValue_ptr	result_
	Result of the operation.
CORBA::Flags	flags_
	Invocation flags.
CORBA::ExceptionList_var	exceptions_
	List of exceptions raised by the operation.
CORBA::ContextList_ptr	contexts_
	List of the request's result's contexts.
CORBA::Context_ptr	ctx_
	Context associated with this request.
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	refcount_
	Reference counting.
TAO_SYNCH_MUTEX	lock_
	Protect the response_received_.
bool	lazy_evaluation_
	If not zero then the NVList is not evaluated by default.
CORBA::Boolean	response_received_
	Set to true upon completion of invoke() or handle_response().
int	byte_order_
	Can be reset by a gateway when passing along a request.
ACE_CString	raw_user_exception_
Friends
class	::TAO_Dynamic_Adapter_Impl

Detailed Description

CORBA::Request.

Provides a way to create requests and populate it with parameters for use in the Dynamic Invocation Interface.

Member Typedef Documentation

typedef CORBA::Request_out CORBA::Request::_out_type

typedef CORBA::Request_ptr CORBA::Request::_ptr_type

typedef CORBA::Request_var CORBA::Request::_var_type

Constructor & Destructor Documentation

CORBA::Request::Request	(	CORBA::Object_ptr	obj,
		CORBA::ORB_ptr	orb,
		const CORBA::Char *	op,
		CORBA::NVList_ptr	args,
		CORBA::NamedValue_ptr	result,
		CORBA::Flags	flags,
		CORBA::ExceptionList_ptr	exceptions
	)		`[private]`

CORBA::Request::Request	(	CORBA::Object_ptr	obj,
		CORBA::ORB_ptr	orb,
		const CORBA::Char *	op
	)		`[private]`

CORBA::Request::~Request ( void ) [private]

Member Function Documentation

CORBA::ULong CORBA::Request::_decr_refcount ( void )

CORBA::Request_ptr CORBA::Request::_duplicate ( CORBA::Request * ) [static]

Pseudo object methods.

CORBA::ULong CORBA::Request::_incr_refcount ( void )

CORBA::Request_ptr CORBA::Request::_nil ( void ) [static]

int CORBA::Request::_tao_byte_order ( void ) const

Get the byte order member.

void CORBA::Request::_tao_byte_order ( int byte_order )

Set the byte order member.

void CORBA::Request::_tao_lazy_evaluation ( bool lazy_evaluation )

Set the lazy evaluation flag.

void CORBA::Request::_tao_reply_stub	(	TAO_InputCDR &	_tao_reply_cdr,
		Messaging::ReplyHandler_ptr	_tao_reply_handler,
		CORBA::ULong	reply_status
	)		`[static]`

CORBA::Any & CORBA::Request::add_in_arg ( void )

CORBA::Any & CORBA::Request::add_in_arg ( const char * name )

CORBA::Any & CORBA::Request::add_inout_arg ( void )

CORBA::Any & CORBA::Request::add_inout_arg ( const char * name )

CORBA::Any & CORBA::Request::add_out_arg ( void )

CORBA::Any & CORBA::Request::add_out_arg ( const char * name )

CORBA::NVList_ptr CORBA::Request::arguments ( void )

Return the arguments for the request.

CORBA::ContextList_ptr CORBA::Request::contexts ( void )

Return a list of the request's result's contexts. Since TAO does not implement Contexts, this will always be 0.

CORBA::Context_ptr CORBA::Request::ctx ( void ) const

Accessor for the Context member.

void CORBA::Request::ctx ( CORBA::Context_ptr ctx )

Mutator for the Context member.

CORBA::ExceptionList_ptr CORBA::Request::exceptions ( void )

Return the exceptions resulting from this request.

void CORBA::Request::get_response ( void )

void CORBA::Request::handle_response	(	TAO_InputCDR &	incoming,
		GIOP::ReplyStatusType	reply_status
	)

Callback method for deferred synchronous requests.

void CORBA::Request::invoke ( void )

Perform method resolution and invoke an appropriate method.

If the method returns successfully, its result is placed in the result argument specified on create_request. The behavior is undefined if this Request has already been used with a previous call to invoke, send, or send_multiple_requests.
