Base class from which the template monitor point class is derived. More...

#include <Monitor_Base.h>

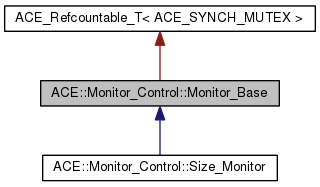

Inheritance diagram for ACE::Monitor_Control::Monitor_Base:

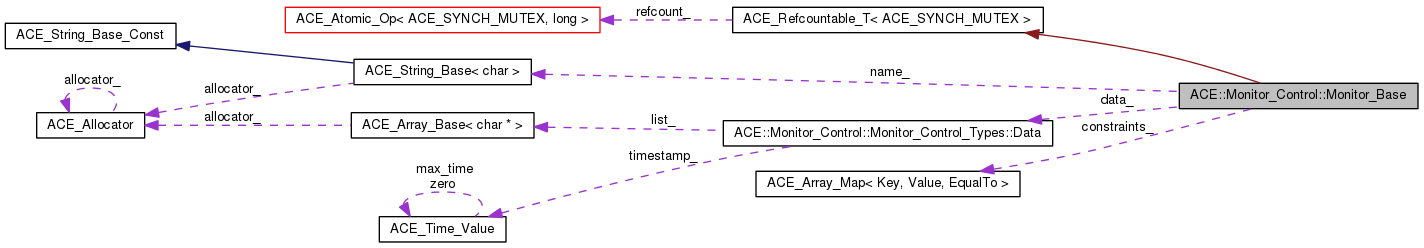

Collaboration diagram for ACE::Monitor_Control::Monitor_Base:

Public Types
typedef Monitor_Control_Types::ConstraintList	CONSTRAINTS
typedef CONSTRAINTS::const_iterator	CONSTRAINT_ITERATOR
Public Member Functions
	Monitor_Base (const char *name, Monitor_Control_Types::Information_Type type)
virtual	~Monitor_Base (void)
virtual void	update (void)
virtual void	receive (double data)
	Updates the monitor's data if it is a numeric floating point.
virtual void	receive (size_t data)
	Updates the monitor's data if it is an integer size.
virtual void	receive (const Monitor_Control_Types::NameList &data)
	Updates the monitor's data if it is a string type.
long	add_constraint (const char expression, Control_Action action=0)
	Add a constraint, returns a unique constraint id.
Control_Action *	remove_constraint (const long constraint_id)
CONSTRAINTS &	constraints (void)
	Get all constraints.
virtual void	clear (void)
	Reset function.
void	retrieve (Monitor_Control_Types::Data &data) const
	Data accessors.
void	retrieve_and_clear (Monitor_Control_Types::Data &data)
void	add_to_registry (const ACE_Time_Value &time=ACE_Time_Value::zero)
	Common to all monitors.
void	remove_from_registry (void)
const char *	name (void) const
void	name (const char *new_name)
void	add_ref (void)
void	remove_ref (void)
double	average (void) const
	Calculate the average of the accumulated samples.
double	sum_of_squares (void) const
	Calculate the sum of the squares of the samples.
size_t	count (void) const
	Returns the number of samples.
double	minimum_sample (void) const
	Returns the minimum sample value.
double	maximum_sample (void) const
	Returns the maximum sample value.
double	last_sample (void) const
	Returns the most recent sample value.
Monitor_Control_Types::Information_Type	type (void) const
	Return the type of this statistic.
Monitor_Control_Types::NameList	get_list (void) const
	Return the list or error msg if wrong type.
Protected Member Functions
virtual void	clear_i (void)
Protected Attributes
Monitor_Control_Types::Data	data_
ACE_SYNCH_MUTEX	mutex_
CONSTRAINTS	constraints_
Private Attributes
ACE_CString	name_

Detailed Description

Base class from which the template monitor point class is derived.

Member Typedef Documentation

typedef CONSTRAINTS::const_iterator ACE::Monitor_Control::Monitor_Base::CONSTRAINT_ITERATOR

typedef Monitor_Control_Types::ConstraintList ACE::Monitor_Control::Monitor_Base::CONSTRAINTS

Constructor & Destructor Documentation

ACE::Monitor_Control::Monitor_Base::Monitor_Base	(	const char *	name,
		Monitor_Control_Types::Information_Type	type
	)

ACE::Monitor_Control::Monitor_Base::~Monitor_Base ( void ) [virtual]

Member Function Documentation

long ACE::Monitor_Control::Monitor_Base::add_constraint	(	const char *	expression,
		Control_Action *	action = `0`
	)

Add a constraint, returns a unique constraint id.

Thread-safe and guaranteed to be unique.

This is thread-safe on its own so we don't have to guard it here.

Since we know external key is unique, we don't check for failure.

void ACE::Monitor_Control::Monitor_Base::add_ref ( void ) [inline]

void ACE::Monitor_Control::Monitor_Base::add_to_registry ( const ACE_Time_Value & time = ACE_Time_Value::zero )

Common to all monitors.

double ACE::Monitor_Control::Monitor_Base::average ( void ) const

Calculate the average of the accumulated samples.

void ACE::Monitor_Control::Monitor_Base::clear ( void ) [virtual]

Reset function.

Reimplemented in ACE::Monitor_Control::Size_Monitor.

void ACE::Monitor_Control::Monitor_Base::clear_i ( void ) [protected, virtual]

Overridden in some monitors (for example the OS monitors) where clearing requires monitor-specific actions.

Monitor_Base::CONSTRAINTS & ACE::Monitor_Control::Monitor_Base::constraints ( void ) [inline]

Get all constraints.

size_t ACE::Monitor_Control::Monitor_Base::count ( void ) const

Returns the number of samples.

Monitor_Control_Types::NameList ACE::Monitor_Control::Monitor_Base::get_list ( void ) const

Return the list or error msg if wrong type.

double ACE::Monitor_Control::Monitor_Base::last_sample ( void ) const

Returns the most recent sample value.

double ACE::Monitor_Control::Monitor_Base::maximum_sample ( void ) const

Returns the maximum sample value.

double ACE::Monitor_Control::Monitor_Base::minimum_sample ( void ) const

Returns the minimum sample value.

const char * ACE::Monitor_Control::Monitor_Base::name ( void ) const [inline]

void ACE::Monitor_Control::Monitor_Base::name ( const char * new_name ) [inline]

void ACE::Monitor_Control::Monitor_Base::receive ( double data ) [virtual]

Updates the monitor's data if it is a numeric floating point.

void ACE::Monitor_Control::Monitor_Base::receive ( size_t data ) [virtual]

Updates the monitor's data if it is an integer size.

void ACE::Monitor_Control::Monitor_Base::receive ( const Monitor_Control_Types::NameList & data ) [virtual]

Updates the monitor's data if it is a string type.

Control_Action * ACE::Monitor_Control::Monitor_Base::remove_constraint ( const long constraint_id )

Remove a constraint and return the associated control action, which may be shared, for deletion or further use.

void ACE::Monitor_Control::Monitor_Base::remove_from_registry ( void )

void ACE::Monitor_Control::Monitor_Base::remove_ref ( void ) [inline]

void ACE::Monitor_Control::Monitor_Base::retrieve ( Monitor_Control_Types::Data & data ) const

Data accessors.

void ACE::Monitor_Control::Monitor_Base::retrieve_and_clear ( Monitor_Control_Types::Data & data )

double ACE::Monitor_Control::Monitor_Base::sum_of_squares ( void ) const

Calculate the sum of the squares of the samples.

Monitor_Control_Types::Information_Type ACE::Monitor_Control::Monitor_Base::type ( void ) const [inline]

Return the type of this statistic.

void ACE::Monitor_Control::Monitor_Base::update ( void ) [virtual]

Implemented by the most-derived class. Does the actual work of fetching the monitored value.

Overridden in derived classes.

Reimplemented in ACE::Monitor_Control::Size_Monitor.

Member Data Documentation

CONSTRAINTS ACE::Monitor_Control::Monitor_Base::constraints_ [protected]

Monitor_Control_Types::Data ACE::Monitor_Control::Monitor_Base::data_ [protected]

ACE_SYNCH_MUTEX ACE::Monitor_Control::Monitor_Base::mutex_ [mutable, protected]

ACE_CString ACE::Monitor_Control::Monitor_Base::name_ [private]

The documentation for this class was generated from the following files:
