ACE_Pagefile_Memory_Pool Class Reference

Make a memory pool that is based on "anonymous" memory regions allocated from the Win32 page file. More...

#include <Pagefile_Memory_Pool.h>

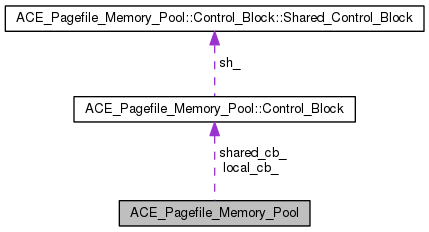

Collaboration diagram for ACE_Pagefile_Memory_Pool:
Collaboration graph
[legend]

List of all members.

Classes

class  Control_Block
 Attributes that are meaningful in local storage only. More...

Public Types

typedef
ACE_Pagefile_Memory_Pool_Options
OPTIONS

Public Member Functions

 ACE_Pagefile_Memory_Pool (const ACE_TCHAR *backing_store_name=0, const OPTIONS *options=0)
 Initialize the pool.
virtual ~ACE_Pagefile_Memory_Pool (void)
 Destructor.
void * init_acquire (size_t nbytes, size_t &rounded_bytes, int &first_time)
 Ask system for initial chunk of shared memory.
void * acquire (size_t nbytes, size_t &rounded_bytes)
int release (int destroy=1)
 Instruct the memory pool to release all of its resources.
virtual int seh_selector (void *)
int remap (void *addr)
size_t round_to_page_size (size_t nbytes)
 Round up to system page size.
size_t round_to_chunk_size (size_t nbytes)
 Round up to the chunk size required by the operation system.
int sync (ssize_t=-1, int=MS_SYNC)
int sync (void *, size_t, int=MS_SYNC)
int protect (ssize_t=-1, int=PROT_RDWR)
int protect (void *, size_t, int=PROT_RDWR)
virtual void * base_addr (void) const
void dump (void) const

Protected Member Functions

int map (int &firstTime, size_t appendBytes=0)
int unmap (void)
 Release the mapping.

Private Attributes

Control_Block local_cb_
 Description of what our process mapped.
Control_Blockshared_cb_
 Shared memory pool statistics.
ACE_HANDLE object_handle_
 File mapping handle.
size_t page_size_
 System page size.
ACE_TCHAR backing_store_name_ [MAXPATHLEN]
 Name of the backing store where the shared memory pool is kept.

Detailed Description

Make a memory pool that is based on "anonymous" memory regions allocated from the Win32 page file.


Member Typedef Documentation


Constructor & Destructor Documentation

ACE_Pagefile_Memory_Pool::ACE_Pagefile_Memory_Pool ( const ACE_TCHAR backing_store_name = 0,
const OPTIONS options = 0
)

Initialize the pool.

Destructor.


Member Function Documentation

void * ACE_Pagefile_Memory_Pool::acquire ( size_t  nbytes,
size_t &  rounded_bytes
)

Acquire at least nbytes from the memory pool. <rounded_bytes> is the actual number of bytes allocated.

void * ACE_Pagefile_Memory_Pool::base_addr ( void  ) const [inline, virtual]

Return the base address of this memory pool, 0 if base_addr never changes.

void ACE_Pagefile_Memory_Pool::dump ( void  ) const [inline]
void * ACE_Pagefile_Memory_Pool::init_acquire ( size_t  nbytes,
size_t &  rounded_bytes,
int &  first_time
)

Ask system for initial chunk of shared memory.

int ACE_Pagefile_Memory_Pool::map ( int &  firstTime,
size_t  appendBytes = 0
) [protected]

Map portions or the entire pool into the local virtual address space. To do this, we compute the new file_offset of the backing store and commit the memory.

int ACE_Pagefile_Memory_Pool::protect ( ssize_t  = -1,
int  = PROT_RDWR
) [inline]
int ACE_Pagefile_Memory_Pool::protect ( void *  ,
size_t  ,
int  = PROT_RDWR
) [inline]
int ACE_Pagefile_Memory_Pool::release ( int  destroy = 1)

Instruct the memory pool to release all of its resources.

int ACE_Pagefile_Memory_Pool::remap ( void *  addr)

Try to extend the virtual address space so that addr is now covered by the address mapping. The method succeeds and returns 0 if the backing store has adequate memory to cover this address. Otherwise, it returns -1. This method is typically called by an exception handler for a Win32 structured exception when another process has grown the backing store (and its mapping) and our process now incurs a fault because our mapping isn't in range (yet).

size_t ACE_Pagefile_Memory_Pool::round_to_chunk_size ( size_t  nbytes) [inline]

Round up to the chunk size required by the operation system.

size_t ACE_Pagefile_Memory_Pool::round_to_page_size ( size_t  nbytes) [inline]

Round up to system page size.

int ACE_Pagefile_Memory_Pool::seh_selector ( void *  ep) [virtual]

Win32 Structural exception selector. The return value decides how to handle memory pool related structural exceptions. Returns 1, 0, or , -1.

int ACE_Pagefile_Memory_Pool::sync ( ssize_t  = -1,
int  = MS_SYNC
) [inline]
int ACE_Pagefile_Memory_Pool::sync ( void *  ,
size_t  ,
int  = MS_SYNC
) [inline]
int ACE_Pagefile_Memory_Pool::unmap ( void  ) [protected]

Release the mapping.


Member Data Documentation

Name of the backing store where the shared memory pool is kept.

Description of what our process mapped.

File mapping handle.

System page size.

Shared memory pool statistics.


The documentation for this class was generated from the following files:
