TAO_SCIOP_Profile Class Reference

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network. More...

#include <SCIOP_Profile.h>

Inheritance diagram for TAO_SCIOP_Profile:
Inheritance graph
[legend]

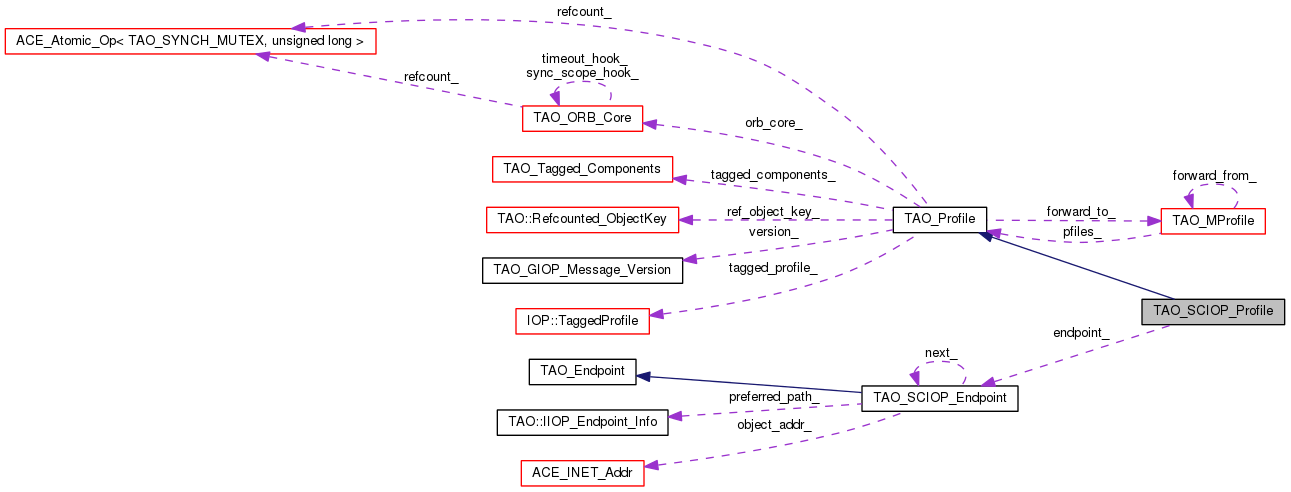

Collaboration diagram for TAO_SCIOP_Profile:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual char object_key_delimiter (void) const
 TAO_SCIOP_Profile (const ACE_INET_Addr &addr, const TAO::ObjectKey &object_key, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)
 TAO_SCIOP_Profile (const char *host, CORBA::UShort port, const TAO::ObjectKey &object_key, const ACE_INET_Addr &addr, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)
 TAO_SCIOP_Profile (TAO_ORB_Core *orb_core)
 Profile constructor, default.
 ~TAO_SCIOP_Profile (void)
 Destructor is to be called only through <_decr_refcnt>.
virtual char * to_string (void)
 Template methods. Please see Profile.h for documentation.
virtual int encode_endpoints (void)
virtual TAO_Endpointendpoint (void)
virtual CORBA::ULong endpoint_count (void) const
virtual CORBA::ULong hash (CORBA::ULong max)
void add_endpoint (TAO_SCIOP_Endpoint *endp)

Static Public Member Functions

static const char * prefix (void)
 Return the char string prefix.

Static Public Attributes

static const char object_key_delimiter_ = '/'
 The object key delimiter that SCIOP uses or expects.

Protected Member Functions

virtual int decode_profile (TAO_InputCDR &cdr)
 Template methods. Please see Profile.h for the documentation.
virtual int decode_endpoints (void)
virtual void parse_string_i (const char *string)
virtual void create_profile_body (TAO_OutputCDR &cdr) const
virtual CORBA::Boolean do_is_equivalent (const TAO_Profile *other_profile)

Protected Attributes

TAO_SCIOP_Endpoint endpoint_
CORBA::ULong count_
 Number of endpoints in the list headed by <endpoint_>.

Detailed Description

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network.

This class defines the SCIOP profile as specified in the CORBA specification.


Constructor & Destructor Documentation

TAO_SCIOP_Profile::TAO_SCIOP_Profile ( const ACE_INET_Addr addr,
const TAO::ObjectKey &  object_key,
const TAO_GIOP_Message_Version version,
TAO_ORB_Core orb_core
)

Profile constructor, same as above except the object_key has already been marshaled.

TAO_SCIOP_Profile::TAO_SCIOP_Profile ( const char *  host,
CORBA::UShort  port,
const TAO::ObjectKey &  object_key,
const ACE_INET_Addr addr,
const TAO_GIOP_Message_Version version,
TAO_ORB_Core orb_core
)

Profile constructor, this is the most efficient since it doesn't require any address resolution processing.

TAO_SCIOP_Profile::TAO_SCIOP_Profile ( TAO_ORB_Core orb_core)

Profile constructor, default.

TAO_SCIOP_Profile::~TAO_SCIOP_Profile ( void  )

Destructor is to be called only through <_decr_refcnt>.


Member Function Documentation

void TAO_SCIOP_Profile::add_endpoint ( TAO_SCIOP_Endpoint endp)

Add <endp> to this profile's list of endpoints (it is inserted next to the head of the list). This profiles takes ownership of <endp>.

void TAO_SCIOP_Profile::create_profile_body ( TAO_OutputCDR cdr) const [protected, virtual]

Implements TAO_Profile.

int TAO_SCIOP_Profile::decode_endpoints ( void  ) [protected, virtual]

Implements TAO_Profile.

int TAO_SCIOP_Profile::decode_profile ( TAO_InputCDR cdr) [protected, virtual]

Template methods. Please see Profile.h for the documentation.

Implements TAO_Profile.

CORBA::Boolean TAO_SCIOP_Profile::do_is_equivalent ( const TAO_Profile other_profile) [protected, virtual]

Implements TAO_Profile.

int TAO_SCIOP_Profile::encode_endpoints ( void  ) [virtual]

Implements TAO_Profile.

TAO_Endpoint * TAO_SCIOP_Profile::endpoint ( void  ) [virtual]

Implements TAO_Profile.

CORBA::ULong TAO_SCIOP_Profile::endpoint_count ( void  ) const [virtual]

Implements TAO_Profile.

CORBA::ULong TAO_SCIOP_Profile::hash ( CORBA::ULong  max) [virtual]

Implements TAO_Profile.

char TAO_SCIOP_Profile::object_key_delimiter ( void  ) const [virtual]

Implements TAO_Profile.

void TAO_SCIOP_Profile::parse_string_i ( const char *  string) [protected, virtual]

Implements TAO_Profile.

const char * TAO_SCIOP_Profile::prefix ( void  ) [static]

Return the char string prefix.

char * TAO_SCIOP_Profile::to_string ( void  ) [virtual]

Template methods. Please see Profile.h for documentation.

Implements TAO_Profile.


Member Data Documentation

Number of endpoints in the list headed by <endpoint_>.

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint.

Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only for two cases (1) when RTCORBA is enabled and (2) the ORB is initialized with -ORBPreferredInterfaces option. However, in the near future, this will be used in for mode as well, e.g., to support TAG_ALTERNATE_IIOP_ADDRESS feature.

This is probably as good a place to discuss how the list of endpoints is used for #2. If the ORB is configured to use preferred interfaces for invocation, TAO creates an endpoint per preferred interface. To be clear, every tuple <destination:target> will have an endpoint. What TAO essentially does is that creates it multiple endpoints so that the invocation code path can use existing iterating techniques to try one preferred interface after another (if the first did not work). If the ORB is configured with -ORBEnforcePreferredInterface set to false in addition to the ORBPreferredInterfaces option , TAO creates another endpoint with the preferred bit set to null, so that the invocation code can fall back to a SCTP stack returned local address. Addressing info of the default endpoint, i.e., head of the list, is transmitted using standard SCIOP ProfileBody components. See <encode_endpoints> method documentation above for how the rest of the endpoint list is transmitted.

const char TAO_SCIOP_Profile::object_key_delimiter_ = '/' [static]

The object key delimiter that SCIOP uses or expects.


The documentation for this class was generated from the following files:
