TAO_Strategies  2.0.8
Public Member Functions | Protected Member Functions | Protected Attributes
TAO_OC_Endpoint_Selector_Factory Class Reference

Factory for initializing <Endpoint_Selection_State> and obtaining appropriate <Invocation_Endpoint_Selector>. More...

#include <OC_Endpoint_Selector_Factory.h>

Inheritance diagram for TAO_OC_Endpoint_Selector_Factory:
Inheritance graph
[legend]

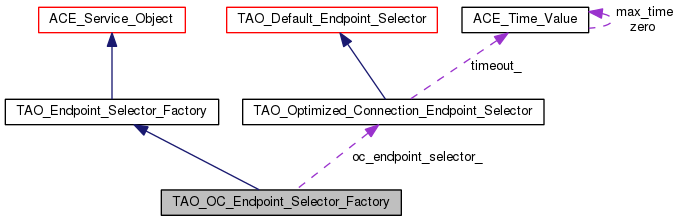

Collaboration diagram for TAO_OC_Endpoint_Selector_Factory:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_OC_Endpoint_Selector_Factory (void)
 Constructor.
virtual ~TAO_OC_Endpoint_Selector_Factory (void)
 Destructor.
virtual int init (int argc, ACE_TCHAR *argv[])
virtual
TAO_Invocation_Endpoint_Selector
get_selector (void)

Protected Member Functions

int register_orb_initializer (void)

Protected Attributes

TAO_Optimized_Connection_Endpoint_Selectoroc_endpoint_selector_

Detailed Description

Factory for initializing <Endpoint_Selection_State> and obtaining appropriate <Invocation_Endpoint_Selector>.

Used by Invocation classes to initialize its endpoint selection strategy and state based on the effective policies. Endpoint selection strategies are stateless objects - all the state they need is contained by Invocation in <Endpoint_Selection_State>. Thus, rather than allocating an endpoint selection strategy object for each Invocation, the factory simply returns the appropriate one from the set preallocated in the ORB_Core. One endpoint selection strategy object can be used by many invocations concurrently.


Constructor & Destructor Documentation

TAO_OC_Endpoint_Selector_Factory::TAO_OC_Endpoint_Selector_Factory ( void  )

Constructor.

TAO_OC_Endpoint_Selector_Factory::~TAO_OC_Endpoint_Selector_Factory ( void  ) [virtual]

Destructor.


Member Function Documentation

TAO_Invocation_Endpoint_Selector * TAO_OC_Endpoint_Selector_Factory::get_selector ( void  ) [virtual]

Get an Invocation's endpoint selection strategy and initialize the endpoint selection state instance.

Implements TAO_Endpoint_Selector_Factory.

int TAO_OC_Endpoint_Selector_Factory::init ( int  argc,
ACE_TCHAR argv[]
) [virtual]

Reimplemented from ACE_Shared_Object.

int TAO_OC_Endpoint_Selector_Factory::register_orb_initializer ( void  ) [protected]

Register the RTCORBA ORBInitializer.


Member Data Documentation

The possible endpoint selector strategies that can be returned by this factory


The documentation for this class was generated from the following files:
