TAO_DIOP_Acceptor Class Reference

TAO_DIOP_Acceptor. More...

#include <DIOP_Acceptor.h>

Inheritance diagram for TAO_DIOP_Acceptor:
Inheritance graph
[legend]

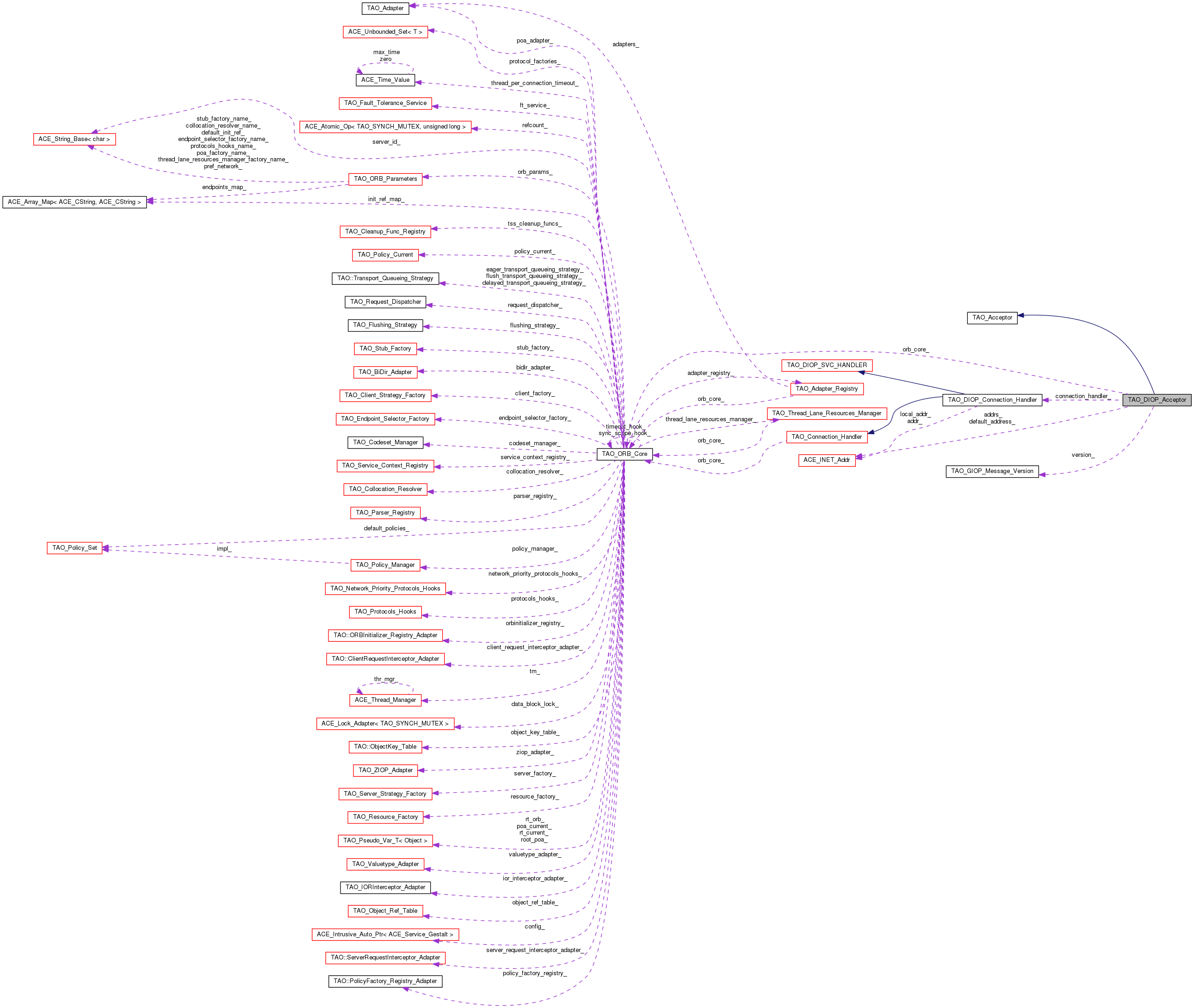

Collaboration diagram for TAO_DIOP_Acceptor:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_DIOP_Acceptor (void)
 Constructor.
 ~TAO_DIOP_Acceptor (void)
 Destructor.
const ACE_INET_Addraddress (void) const
const ACE_INET_Addrendpoints (void)
 Returns the array of endpoints in this acceptor.
const ACE_INET_Addrdefault_address (void) const
 Returns address for default endpoint.
void set_default_address (const ACE_INET_Addr &addr)
 Set address for default endpoint.
virtual int hostname (TAO_ORB_Core *orb_core, ACE_INET_Addr &addr, char *&host, const char *specified_hostname=0)
int dotted_decimal_address (ACE_INET_Addr &addr, char *&host)
The TAO_Acceptor Methods

Please check the documentation in Transport_Acceptor.h for details.

virtual int open (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *address, const char *options=0)
virtual int open_default (TAO_ORB_Core *orb_core, ACE_Reactor *reactor, int version_major, int version_minor, const char *options=0)
virtual int close (void)
virtual int create_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
virtual int is_collocated (const TAO_Endpoint *endpoint)
virtual CORBA::ULong endpoint_count (void)
virtual int object_key (IOP::TaggedProfile &profile, TAO::ObjectKey &key)

Protected Member Functions

int parse_address (const char *address, ACE_INET_Addr &addr, ACE_CString &specified_hostname, int *def_type=0)
virtual int open_i (const ACE_INET_Addr &addr, ACE_Reactor *reactor)
int probe_interfaces (TAO_ORB_Core *orb_core, int def_type=AF_UNSPEC)
virtual int parse_options (const char *options)
 Parse protocol specific options.
int create_new_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)
int create_shared_profile (const TAO::ObjectKey &object_key, TAO_MProfile &mprofile, CORBA::Short priority)

Protected Attributes

ACE_INET_Addraddrs_
char ** hosts_
CORBA::ULong endpoint_count_
TAO_GIOP_Message_Version version_
TAO_ORB_Coreorb_core_
 ORB Core.
ACE_INET_Addr default_address_
 Address for default endpoint.

Private Attributes

TAO_DIOP_Connection_Handlerconnection_handler_

Detailed Description

TAO_DIOP_Acceptor.

The DIOP-specific bridge class for the concrete acceptor.


Constructor & Destructor Documentation

TAO_DIOP_Acceptor::TAO_DIOP_Acceptor ( void  )

Constructor.

TAO_DIOP_Acceptor::~TAO_DIOP_Acceptor ( void  )

Destructor.


Member Function Documentation

const ACE_INET_Addr & TAO_DIOP_Acceptor::address ( void  ) const [inline]

@ Helper method for the implementation repository, should go away

int TAO_DIOP_Acceptor::close ( void  ) [virtual]

Implements TAO_Acceptor.

int TAO_DIOP_Acceptor::create_new_profile ( const TAO::ObjectKey &  object_key,
TAO_MProfile mprofile,
CORBA::Short  priority
) [protected]

Helper method to add a new profile to the mprofile for each endpoint.

int TAO_DIOP_Acceptor::create_profile ( const TAO::ObjectKey &  object_key,
TAO_MProfile mprofile,
CORBA::Short  priority
) [virtual]

Implements TAO_Acceptor.

int TAO_DIOP_Acceptor::create_shared_profile ( const TAO::ObjectKey &  object_key,
TAO_MProfile mprofile,
CORBA::Short  priority
) [protected]

Helper method to create a profile that contains all of our endpoints.

const ACE_INET_Addr & TAO_DIOP_Acceptor::default_address ( void  ) const [inline]

Returns address for default endpoint.

int TAO_DIOP_Acceptor::dotted_decimal_address ( ACE_INET_Addr addr,
char *&  host
)

Set the host name for the given address using the dotted decimal format.

CORBA::ULong TAO_DIOP_Acceptor::endpoint_count ( void  ) [virtual]

Implements TAO_Acceptor.

const ACE_INET_Addr * TAO_DIOP_Acceptor::endpoints ( void  ) [inline]

Returns the array of endpoints in this acceptor.

int TAO_DIOP_Acceptor::hostname ( TAO_ORB_Core orb_core,
ACE_INET_Addr addr,
char *&  host,
const char *  specified_hostname = 0
) [virtual]

Set the host name for the given addr. A hostname may be forced by using specified_hostname. This is useful if the given address corresponds to more than one hostname and the desired one cannot be determined in any other way.

int TAO_DIOP_Acceptor::is_collocated ( const TAO_Endpoint endpoint) [virtual]

Implements TAO_Acceptor.

int TAO_DIOP_Acceptor::object_key ( IOP::TaggedProfile profile,
TAO::ObjectKey &  key
) [virtual]

Implements TAO_Acceptor.

int TAO_DIOP_Acceptor::open ( TAO_ORB_Core orb_core,
ACE_Reactor reactor,
int  version_major,
int  version_minor,
const char *  address,
const char *  options = 0
) [virtual]

Implements TAO_Acceptor.

int TAO_DIOP_Acceptor::open_default ( TAO_ORB_Core orb_core,
ACE_Reactor reactor,
int  version_major,
int  version_minor,
const char *  options = 0
) [virtual]

Implements TAO_Acceptor.

int TAO_DIOP_Acceptor::open_i ( const ACE_INET_Addr addr,
ACE_Reactor reactor
) [protected, virtual]

Implement the common part of the open*() methods. This method is virtual to allow a derived class implementation to be invoked instead.

int TAO_DIOP_Acceptor::parse_address ( const char *  address,
ACE_INET_Addr addr,
ACE_CString specified_hostname,
int *  def_type = 0
) [protected]

Helper method Clear out 'addr' & 'specified_hostname' and initialize them based upon 'address'. If a non-zero pointer is passed in for def_type, this will be set to AF_INET6 if IPv6 support is enabled and supplied hostname is either [] or [::]. It will be set to AF_INET if the hostname is 0.0.0.0, otherwise it is set to AF_UNSPEC. This value is then passed to probe_interfaces by open.

int TAO_DIOP_Acceptor::parse_options ( const char *  options) [protected, virtual]

Parse protocol specific options.

int TAO_DIOP_Acceptor::probe_interfaces ( TAO_ORB_Core orb_core,
int  def_type = AF_UNSPEC
) [protected]

Probe the system for available network interfaces, and initialize the <addrs_> array with an ACE_INET_Addr for each network interface. The port for each initialized ACE_INET_Addr will be set in the open_i() method. This method only gets invoked when no explicit hostname is provided in the specified endpoint.

The optional argument def_type is used to constrain the resulting list of interfaces to be either only IPv6 or IPv4, or both, when ACE_HAS_IPV6 is enabled and the source endpoint was an explicitly declared wildcard.

void TAO_DIOP_Acceptor::set_default_address ( const ACE_INET_Addr addr) [inline]

Set address for default endpoint.


Member Data Documentation

Array of ACE_INET_Addr instances, each one corresponding to a given network interface.

Address for default endpoint.

The number of host names cached in the hosts_ array (equivalent to the number of endpoints opened by this Acceptor).

char** TAO_DIOP_Acceptor::hosts_ [protected]

Cache the information about the endpoints serviced by this acceptor. There may in fact be multiple hostnames for this endpoint. For example, if the IP address is INADDR_ANY (0.0.0.0) then there will be possibly a different hostname for each interface.

ORB Core.

The GIOP version for this endpoint @ Theoretically they shouldn't be here!! We need to look at a way to move this out


The documentation for this class was generated from the following files:
