TAO_ECG_UDP_EH Class Reference

Event Handler for UDP messages. More...

#include <ECG_UDP_EH.h>

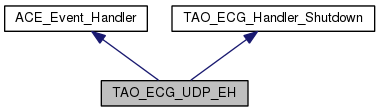

Inheritance diagram for TAO_ECG_UDP_EH:
Inheritance graph
[legend]

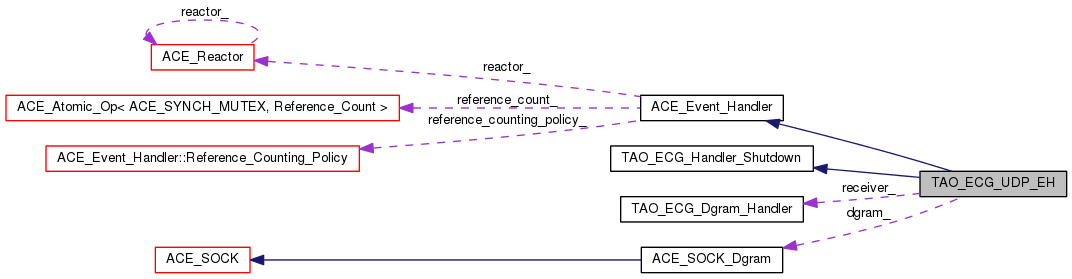

Collaboration diagram for TAO_ECG_UDP_EH:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual int handle_input (ACE_HANDLE fd)
ACE_SOCK_Dgramdgram (void)
 TAO_ECG_UDP_EH (TAO_ECG_Dgram_Handler *recv)
 Initialization and termination methods.
virtual ~TAO_ECG_UDP_EH (void)
 Destructor.
int open (const ACE_INET_Addr &ipaddr, int reuse_addr=0)
virtual int shutdown (void)

Private Attributes

ACE_SOCK_Dgram dgram_
 The datagram used to receive the data.
TAO_ECG_Dgram_Handlerreceiver_
 We callback to this object when a message arrives.

Detailed Description

Event Handler for UDP messages.

Listens for messages on a UDP socket. When there is a message, calls handle_input () on a specified TAO_ECG_Dgram_Handler to inform it about message arrival.

NOT THREAD-SAFE.


Constructor & Destructor Documentation

TAO_ECG_UDP_EH::TAO_ECG_UDP_EH ( TAO_ECG_Dgram_Handler recv)

Initialization and termination methods.

Constructor. Messages received by this EH will be forwarded to the <recv>.

TAO_ECG_UDP_EH::~TAO_ECG_UDP_EH ( void  ) [virtual]

Destructor.


Member Function Documentation

ACE_SOCK_Dgram& TAO_ECG_UDP_EH::dgram ( void  )

Obtain the dgram, this is one of those "controlled violations of type safety", allowing the user to setup options and gain access to low-level features.

int TAO_ECG_UDP_EH::handle_input ( ACE_HANDLE  fd) [virtual]

Main method - reactor callback. Notify <receiver_> that <dgram_> is ready for reading.

Reimplemented from ACE_Event_Handler.

int TAO_ECG_UDP_EH::open ( const ACE_INET_Addr ipaddr,
int  reuse_addr = 0
)

Open the datagram and register itself with this->reactor(). To insure proper resource clean up, if open () is successful, the user MUST call shutdown () when handler is no longer needed (and its reactor still exists).

int TAO_ECG_UDP_EH::shutdown ( void  ) [virtual]

TAO_ECG_Handler_Shutdown method. Unsubscribe from the reactor and close the datagram.

Implements TAO_ECG_Handler_Shutdown.


Member Data Documentation

The datagram used to receive the data.

We callback to this object when a message arrives.


The documentation for this class was generated from the following files:
