TAO_ServantBase Class Reference

Base class for skeletons and servants. More...

#include <Servant_Base.h>

Inheritance diagram for TAO_ServantBase:

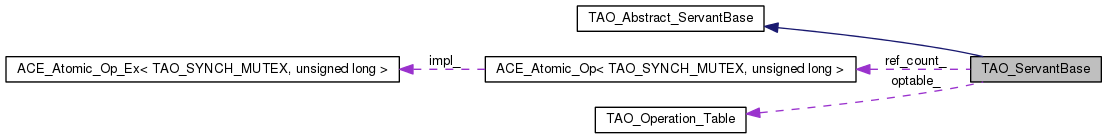

Collaboration diagram for TAO_ServantBase:

List of all members.

Public Types
typedef CORBA::Object	_stub_type
	Useful for template programming.
typedef CORBA::Object_ptr	_stub_ptr_type
typedef CORBA::Object_var	_stub_var_type
Public Member Functions
virtual	~TAO_ServantBase (void)
	Destructor.
virtual PortableServer::POA_ptr	_default_POA (void)
	Returns the default POA for this servant.
virtual CORBA::Boolean	_is_a (const char *logical_type_id)
	Local implementation of the CORBA::Object::_is_a method.
virtual CORBA::Boolean	_non_existent (void)
	Default _non_existent: always returns false.
virtual CORBA::InterfaceDef_ptr	_get_interface (void)
	Query the Interface Repository for the interface definition.
virtual CORBA::Object_ptr	_get_component (void)
	Default _get_component: always returns CORBA::Object::_nil().
virtual char *	_repository_id (void)
	Get the repository id.
virtual TAO_Stub *	_create_stub (void)
	This is an auxiliary method for _this() and _narrow().
virtual void	_dispatch (TAO_ServerRequest &request, TAO::Portable_Server::Servant_Upcall *servant_upcall)=0
virtual int	_find (const char *opname, TAO_Skeleton &skelfunc, const size_t length=0)
virtual int	_find (const char *opname, TAO_Collocated_Skeleton &skelfunc, TAO::Collocation_Strategy st, const size_t length=0)
virtual const char *	_interface_repository_id (void) const =0
	Get this interface's repository id (TAO specific).
virtual void	_collocated_dispatch (::CORBA::Object_ptr obj,::CORBA::Object_out forward_obj, bool &is_forwarded, TAO::Argument **args, int num_args, const char *op, size_t op_len, TAO::Collocation_Strategy strategy)
Reference Counting Operations
virtual void	_add_ref (void)
	Increase reference count by one.
virtual void	_remove_ref (void)
virtual CORBA::ULong	_refcount_value (void) const
Static Public Member Functions
static void	_is_a_skel (TAO_ServerRequest &req, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_is_a_thru_poa_skel (TAO_ServerRequest &server_request, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_non_existent_skel (TAO_ServerRequest &req, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_non_existent_thru_poa_skel (TAO_ServerRequest &server_request, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_interface_skel (TAO_ServerRequest &req, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_component_skel (TAO_ServerRequest &req, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_component_thru_poa_skel (TAO_ServerRequest &server_request, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_repository_id_skel (TAO_ServerRequest &req, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
static void	_repository_id_thru_poa_skel (TAO_ServerRequest &server_request, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *servant)
Protected Member Functions
	TAO_ServantBase (void)
	Default constructor, only derived classes can be created.
	TAO_ServantBase (const TAO_ServantBase &)
	Copy constructor, protected so no instances can be created.
TAO_ServantBase &	operator= (const TAO_ServantBase &)
	Assignment operator.
void	synchronous_upcall_dispatch (TAO_ServerRequest &req, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *derived_this)
void	asynchronous_upcall_dispatch (TAO_ServerRequest &req, TAO::Portable_Server::Servant_Upcall *servant_upcall, TAO_ServantBase *derived_this)
Protected Attributes
ACE_Atomic_Op< TAO_SYNCH_MUTEX, unsigned long >	ref_count_
	Reference counter.
TAO_Operation_Table *	optable_

---

Detailed Description

Base class for skeletons and servants.

The POA spec requires that all servants inherit from this class' base class.

An instance of a servant class derived from ServantBase initially has a reference count of one. Invoking _add_ref on the servant instance increases its reference count by one. Invoking _remove_ref on the servant instance decreases its reference count by one; if the resulting reference count equals zero, _remove_ref invokes delete on its this pointer in order to destroy the servant. For ORBs that operate in multi-threaded environments, the implementations of _add_ref and _remove_ref that the ServantBase class provides shall be thread-safe.

Like ServantBase supports copy construction and the default assignment operation. Copy construction always sets the reference count of the new servant instance to one. The default assignment implementation merely returns *this and does not affect the reference count.

---

Member Typedef Documentation

typedef CORBA::Object_ptr TAO_ServantBase::_stub_ptr_type

Reimplemented in POA_CORBA::Policy.

typedef CORBA::Object TAO_ServantBase::_stub_type

Useful for template programming.

Reimplemented in POA_CORBA::Policy.

typedef CORBA::Object_var TAO_ServantBase::_stub_var_type

Reimplemented in POA_CORBA::Policy.

---

Constructor & Destructor Documentation

TAO_ServantBase::~TAO_ServantBase

(

void

)

[virtual]

Destructor.

TAO_ServantBase::TAO_ServantBase

(

void

)

[protected]

Default constructor, only derived classes can be created.

TAO_ServantBase::TAO_ServantBase

(

const TAO_ServantBase &

rhs

)

[protected]

Copy constructor, protected so no instances can be created.

---

Member Function Documentation

void TAO_ServantBase::_add_ref

(

void

)

[virtual]

Increase reference count by one.

Implements TAO_Abstract_ServantBase.

void TAO_ServantBase::_collocated_dispatch	(	::CORBA::Object_ptr	obj,
		::CORBA::Object_out	forward_obj,
		bool &	is_forwarded,
		TAO::Argument **	args,
		int	num_args,
		const char *	op,
		size_t	op_len,
		TAO::Collocation_Strategy	strategy
	)		[virtual]

Implements TAO_Abstract_ServantBase.

void TAO_ServantBase::_component_skel	(	TAO_ServerRequest &	req,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

void TAO_ServantBase::_component_thru_poa_skel	(	TAO_ServerRequest &	server_request,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

TAO_Stub * TAO_ServantBase::_create_stub

(

void

)

[virtual]

This is an auxiliary method for _this() and _narrow().

Implements TAO_Abstract_ServantBase.

PortableServer::POA_ptr TAO_ServantBase::_default_POA

(

void

)

[virtual]

Returns the default POA for this servant.

Reimplemented in POA_CORBA::Policy_tie< T >.

virtual void TAO_ServantBase::_dispatch	(	TAO_ServerRequest &	request,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall
	)		[pure virtual]

Dispatches a request to the object: find the operation, cast the type to the most derived type, demarshall all the parameters from the request and finally invokes the operation, storing the results and out parameters (if any) or the exceptions thrown into request.

Implements TAO_Abstract_ServantBase.

Implemented in POA_CORBA::Policy.

int TAO_ServantBase::_find	(	const char *	opname,
		TAO_Skeleton &	skelfunc,
		const size_t	length = 0
	)		[virtual]

Please see documentation in tao/Abstract_Servant_Base.h for details.

Implements TAO_Abstract_ServantBase.

int TAO_ServantBase::_find	(	const char *	opname,
		TAO_Collocated_Skeleton &	skelfunc,
		TAO::Collocation_Strategy	st,
		const size_t	length = 0
	)		[virtual]

Implements TAO_Abstract_ServantBase.

CORBA::Object_ptr TAO_ServantBase::_get_component

(

void

)

[virtual]

Default _get_component: always returns CORBA::Object::_nil().

Implements TAO_Abstract_ServantBase.

CORBA::InterfaceDef_ptr TAO_ServantBase::_get_interface

(

void

)

[virtual]

Query the Interface Repository for the interface definition.

Implements TAO_Abstract_ServantBase.

virtual const char* TAO_ServantBase::_interface_repository_id

(

void

)

const [pure virtual]

Get this interface's repository id (TAO specific).

Implements TAO_Abstract_ServantBase.

Implemented in POA_CORBA::Policy.

void TAO_ServantBase::_interface_skel	(	TAO_ServerRequest &	req,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

CORBA::Boolean TAO_ServantBase::_is_a

(

const char *

logical_type_id

)

[virtual]

Local implementation of the CORBA::Object::_is_a method.

Implements TAO_Abstract_ServantBase.

Reimplemented in POA_CORBA::Policy.

void TAO_ServantBase::_is_a_skel	(	TAO_ServerRequest &	req,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

void TAO_ServantBase::_is_a_thru_poa_skel	(	TAO_ServerRequest &	server_request,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

CORBA::Boolean TAO_ServantBase::_non_existent

(

void

)

[virtual]

Default _non_existent: always returns false.

Implements TAO_Abstract_ServantBase.

void TAO_ServantBase::_non_existent_skel	(	TAO_ServerRequest &	req,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

void TAO_ServantBase::_non_existent_thru_poa_skel	(	TAO_ServerRequest &	server_request,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

CORBA::ULong TAO_ServantBase::_refcount_value

(

void

)

const [virtual]

Returns the current reference count value.

Implements TAO_Abstract_ServantBase.

void TAO_ServantBase::_remove_ref

(

void

)

[virtual]

Decreases reference count by one; if the resulting reference count equals zero, _remove_ref invokes delete on its this pointer in order to destroy the servant.

Implements TAO_Abstract_ServantBase.

char * TAO_ServantBase::_repository_id

(

void

)

[virtual]

Get the repository id.

Implements TAO_Abstract_ServantBase.

void TAO_ServantBase::_repository_id_skel	(	TAO_ServerRequest &	req,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

void TAO_ServantBase::_repository_id_thru_poa_skel	(	TAO_ServerRequest &	server_request,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	servant
	)		[static]

void TAO_ServantBase::asynchronous_upcall_dispatch	(	TAO_ServerRequest &	req,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	derived_this
	)		[protected]

TAO_ServantBase & TAO_ServantBase::operator=

(

const TAO_ServantBase &

rhs

)

[protected]

Assignment operator.

void TAO_ServantBase::synchronous_upcall_dispatch	(	TAO_ServerRequest &	req,
		TAO::Portable_Server::Servant_Upcall *	servant_upcall,
		TAO_ServantBase *	derived_this
	)		[protected]

---

Member Data Documentation

TAO_Operation_Table* TAO_ServantBase::optable_ [protected]

The operation table for this servant. It is initialized by the most derived class.

ACE_Atomic_Op<TAO_SYNCH_MUTEX, unsigned long> TAO_ServantBase::ref_count_ [protected]

Reference counter.

---

The documentation for this class was generated from the following files:

• Servant_Base.h
• Servant_Base.cpp
