ACE_POSIX_Asynch_Connect_Result Class Reference

This is that class which will be passed back to the completion handler when the asynchronous connect completes. More...

#include <POSIX_Asynch_IO.h>

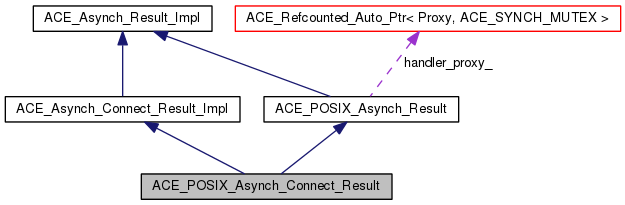

Inheritance diagram for ACE_POSIX_Asynch_Connect_Result:
Inheritance graph
[legend]

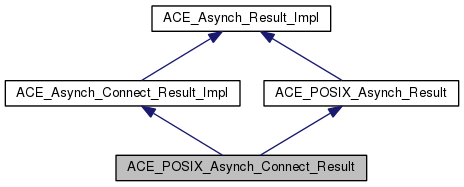

Collaboration diagram for ACE_POSIX_Asynch_Connect_Result:
Collaboration graph
[legend]

List of all members.

Public Member Functions

ACE_HANDLE connect_handle (void) const
 I/O handle for the connection.

Protected Member Functions

 ACE_POSIX_Asynch_Connect_Result (const ACE_Handler::Proxy_Ptr &handler_proxy, ACE_HANDLE connect_handle, const void *act, ACE_HANDLE event, int priority, int signal_number)
virtual void complete (size_t bytes_transferred, int success, const void *completion_key, u_long error)
 ACE_Proactor will call this method when the accept completes.
virtual ~ACE_POSIX_Asynch_Connect_Result (void)
 Destructor.
void connect_handle (ACE_HANDLE handle)

Friends

class ACE_POSIX_Asynch_Connect
 Factory classes will have special permissions.
class ACE_POSIX_Proactor
 The Proactor constructs the Result class for faking results.

Detailed Description

This is that class which will be passed back to the completion handler when the asynchronous connect completes.

This class has all the information necessary for a completion handler to uniquely identify the completion of the asynchronous connect.


Constructor & Destructor Documentation

ACE_POSIX_Asynch_Connect_Result::ACE_POSIX_Asynch_Connect_Result ( const ACE_Handler::Proxy_Ptr handler_proxy,
ACE_HANDLE  connect_handle,
const void *  act,
ACE_HANDLE  event,
int  priority,
int  signal_number
) [protected]

Constructor is protected since creation is limited to ACE_Asynch_Connect factory.

ACE_POSIX_Asynch_Connect_Result::~ACE_POSIX_Asynch_Connect_Result ( void  ) [protected, virtual]

Destructor.


Member Function Documentation

void ACE_POSIX_Asynch_Connect_Result::complete ( size_t  bytes_transferred,
int  success,
const void *  completion_key,
u_long  error
) [protected, virtual]

ACE_Proactor will call this method when the accept completes.

Implements ACE_Asynch_Result_Impl.

ACE_HANDLE ACE_POSIX_Asynch_Connect_Result::connect_handle ( void  ) const [virtual]

I/O handle for the connection.

Implements ACE_Asynch_Connect_Result_Impl.

void ACE_POSIX_Asynch_Connect_Result::connect_handle ( ACE_HANDLE  handle) [protected]

Friends And Related Function Documentation

friend class ACE_POSIX_Asynch_Connect [friend]

Factory classes will have special permissions.

friend class ACE_POSIX_Proactor [friend]

The Proactor constructs the Result class for faking results.


The documentation for this class was generated from the following files:
