ACE_Ping_Socket Class Reference

This class is useful to perform ICMP echo checks (pinging) on the party of your interest. It may be used as well to check LAN-adapters against 3rd parties. More...

#include <Ping_Socket.h>

Inheritance diagram for ACE_Ping_Socket:

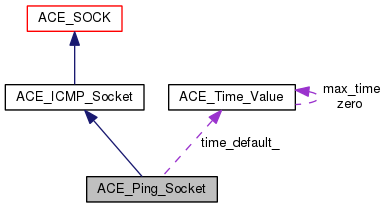

Collaboration diagram for ACE_Ping_Socket:

List of all members.

Public Types
enum	{ PING_BUFFER_SIZE = (1024 * 2) }
Public Member Functions
	ACE_Ping_Socket (void)
	Default constructor.
	ACE_Ping_Socket (ACE_Addr const &local, int protocol=IPPROTO_ICMP, int reuse_addr=0)
	~ACE_Ping_Socket (void)
	Destructor.
int	open (ACE_Addr const &local=ACE_Addr::sap_any, int protocol=IPPROTO_ICMP, int reuse_addr=0)
	Wrapper around the BSD-style socket system call (no QoS).
int	send_echo_check (ACE_INET_Addr &remote_addr, bool to_connect=false)
	to_connect = true - makes connect to remote address
int	process_incoming_dgram (char *ptr, ssize_t len)
int	make_echo_check (ACE_INET_Addr &remote_addr, bool to_connect=false, ACE_Time_Value const *timeout=&time_default_)
	to_connect = true - makes connect to remote address
char *	icmp_recv_buff (void)
void	dump (void) const
	Dump the state of an object.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Static Public Attributes
static ACE_Time_Value const	time_default_
Private Types
typedef ACE_ICMP_Socket	inherited
Private Member Functions
int	receive_echo_reply (ACE_Time_Value const *timeout)
int	get_remote_addr (ACE_INET_Addr &addr) const
	Do not allow this function to percolate up to this interface.
Private Attributes
char	icmp_send_buff_ [PING_BUFFER_SIZE]
char	icmp_recv_buff_ [PING_BUFFER_SIZE]
ACE_UINT16	sequence_number_
bool	connected_socket_

---

Detailed Description

This class is useful to perform ICMP echo checks (pinging) on the party of your interest. It may be used as well to check LAN-adapters against 3rd parties.

---

Member Typedef Documentation

typedef ACE_ICMP_Socket ACE_Ping_Socket::inherited [private]

---

Member Enumeration Documentation

anonymous enum

Enumerator:

PING_BUFFER_SIZE

---

Constructor & Destructor Documentation

ACE_Ping_Socket::ACE_Ping_Socket

(

void

)

Default constructor.

ACE_Ping_Socket::ACE_Ping_Socket	(	ACE_Addr const &	local,
		int	protocol = IPPROTO_ICMP,
		int	reuse_addr = 0
	)

ACE_Ping_Socket::~ACE_Ping_Socket

(

void

)

Destructor.

---

Member Function Documentation

void ACE_Ping_Socket::dump

(

void

)

const

Dump the state of an object.

Reimplemented from ACE_ICMP_Socket.

int ACE_Ping_Socket::get_remote_addr

(

ACE_INET_Addr &

addr

)

const [private]

Do not allow this function to percolate up to this interface.

char * ACE_Ping_Socket::icmp_recv_buff

(

void

)

[inline]

int ACE_Ping_Socket::make_echo_check	(	ACE_INET_Addr &	remote_addr,
		bool	to_connect = false,
		ACE_Time_Value const *	timeout = &time_default_
	)

to_connect = true - makes connect to remote address

int ACE_Ping_Socket::open	(	ACE_Addr const &	local = ACE_Addr::sap_any,
		int	protocol = IPPROTO_ICMP,
		int	reuse_addr = 0
	)

Wrapper around the BSD-style socket system call (no QoS).

Reimplemented from ACE_ICMP_Socket.

int ACE_Ping_Socket::process_incoming_dgram	(	char *	ptr,
		ssize_t	len
	)

To receive ICMP_ECHOREPLY. To be called after successfully sending ICMP_ECHO.

int ACE_Ping_Socket::receive_echo_reply

(

ACE_Time_Value const *

timeout

)

[private]

int ACE_Ping_Socket::send_echo_check	(	ACE_INET_Addr &	remote_addr,
		bool	to_connect = false
	)

to_connect = true - makes connect to remote address

---

Member Data Documentation

ACE_Ping_Socket::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_ICMP_Socket.

bool ACE_Ping_Socket::connected_socket_ [private]

char ACE_Ping_Socket::icmp_recv_buff_[PING_BUFFER_SIZE] [private]

char ACE_Ping_Socket::icmp_send_buff_[PING_BUFFER_SIZE] [private]

ACE_UINT16 ACE_Ping_Socket::sequence_number_ [private]

ACE_Time_Value const ACE_Ping_Socket::time_default_ [static]

---

The documentation for this class was generated from the following files:

• Ping_Socket.h
• Ping_Socket.cpp
• Ping_Socket.inl
