TAO_CEC_Default_Factory Class Reference

A generic factory for EC experimentation. More...

#include <CEC_Default_Factory.h>

Inheritance diagram for TAO_CEC_Default_Factory:
Inheritance graph
[legend]

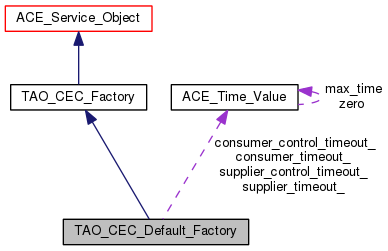

Collaboration diagram for TAO_CEC_Default_Factory:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_CEC_Default_Factory (void)
 Constructor.
virtual ~TAO_CEC_Default_Factory (void)
 destructor...
virtual int init (int argc, ACE_TCHAR *argv[])
virtual int fini (void)
virtual TAO_CEC_Dispatchingcreate_dispatching (TAO_CEC_EventChannel *)
 Create and destroy the dispatching module.
virtual void destroy_dispatching (TAO_CEC_Dispatching *)
virtual TAO_CEC_Pulling_Strategycreate_pulling_strategy (TAO_CEC_EventChannel *)
 Create and destroy the pulling strategy.
virtual void destroy_pulling_strategy (TAO_CEC_Pulling_Strategy *)
virtual TAO_CEC_ConsumerAdmincreate_consumer_admin (TAO_CEC_EventChannel *)
 Create and destroy the consumer admin implementation.
virtual void destroy_consumer_admin (TAO_CEC_ConsumerAdmin *)
virtual TAO_CEC_SupplierAdmincreate_supplier_admin (TAO_CEC_EventChannel *)
 Create and destroy the supplier admin implementation.
virtual void destroy_supplier_admin (TAO_CEC_SupplierAdmin *)
virtual TAO_CEC_ProxyPushSuppliercreate_proxy_push_supplier (TAO_CEC_EventChannel *)
 Create and destroy a ProxyPushSupplier.
virtual void destroy_proxy_push_supplier (TAO_CEC_ProxyPushSupplier *)
virtual TAO_CEC_ProxyPullSuppliercreate_proxy_pull_supplier (TAO_CEC_EventChannel *)
 Create and destroy a ProxyPullSupplier.
virtual void destroy_proxy_pull_supplier (TAO_CEC_ProxyPullSupplier *)
virtual TAO_CEC_ProxyPushConsumercreate_proxy_push_consumer (TAO_CEC_EventChannel *)
 Create and destroy a ProxyPushConsumer.
virtual void destroy_proxy_push_consumer (TAO_CEC_ProxyPushConsumer *)
virtual TAO_CEC_ProxyPullConsumercreate_proxy_pull_consumer (TAO_CEC_EventChannel *)
 Create and destroy a ProxyPullConsumer.
virtual void destroy_proxy_pull_consumer (TAO_CEC_ProxyPullConsumer *)
virtual
TAO_CEC_ProxyPushConsumer_Collection
create_proxy_push_consumer_collection (TAO_CEC_EventChannel *)
 Create and destroy a collection of TAO_CEC_ProxyPushConsumers.
virtual void destroy_proxy_push_consumer_collection (TAO_CEC_ProxyPushConsumer_Collection *)
virtual
TAO_CEC_ProxyPullConsumer_Collection
create_proxy_pull_consumer_collection (TAO_CEC_EventChannel *)
 Create and destroy a collection of TAO_CEC_ProxyPullConsumers.
virtual void destroy_proxy_pull_consumer_collection (TAO_CEC_ProxyPullConsumer_Collection *)
virtual
TAO_CEC_ProxyPushSupplier_Collection
create_proxy_push_supplier_collection (TAO_CEC_EventChannel *)
 Create and destroy a collection of TAO_CEC_ProxyPushSuppliers.
virtual void destroy_proxy_push_supplier_collection (TAO_CEC_ProxyPushSupplier_Collection *)
virtual
TAO_CEC_ProxyPullSupplier_Collection
create_proxy_pull_supplier_collection (TAO_CEC_EventChannel *)
 Create and destroy a collection of TAO_CEC_ProxyPullSuppliers.
virtual void destroy_proxy_pull_supplier_collection (TAO_CEC_ProxyPullSupplier_Collection *)
virtual ACE_Lockcreate_consumer_lock (void)
virtual void destroy_consumer_lock (ACE_Lock *)
virtual ACE_Lockcreate_supplier_lock (void)
virtual void destroy_supplier_lock (ACE_Lock *)
virtual TAO_CEC_ConsumerControlcreate_consumer_control (TAO_CEC_EventChannel *)
virtual void destroy_consumer_control (TAO_CEC_ConsumerControl *)
virtual TAO_CEC_SupplierControlcreate_supplier_control (TAO_CEC_EventChannel *)
virtual void destroy_supplier_control (TAO_CEC_SupplierControl *)
virtual CORBA::Policy_ptr create_roundtrip_timeout_policy (const ACE_Time_Value &timeout)

Static Public Member Functions

static int init_svcs (void)

Private Member Functions

int parse_collection_arg (ACE_TCHAR *opt)
 Parse an argument to set the type of collections used.

Private Attributes

int dispatching_
 Several flags to control the kind of object created.
int pulling_strategy_
int consumer_collection_
int supplier_collection_
int consumer_lock_
int supplier_lock_
int dispatching_threads_
int dispatching_threads_flags_
int dispatching_threads_priority_
int dispatching_threads_force_active_
int reactive_pulling_period_
char * orbid_
 Use this ORB to locate global resources.
int orbid_dupped_
 Indicate ORB ID has been duplicated (memory allocated).
int consumer_control_
 The consumer and supplier control policies.
int supplier_control_
int consumer_control_period_
 The consumer and supplier control periods in usecs.
int supplier_control_period_
ACE_Time_Value consumer_control_timeout_
 The consumer and supplier control timeout in usecs.
ACE_Time_Value supplier_control_timeout_
ACE_Time_Value consumer_timeout_
ACE_Time_Value supplier_timeout_
unsigned int proxy_disconnect_retries_
 The number of retries before disconnecting a proxy.

Detailed Description

A generic factory for EC experimentation.

This class allows the user to experiment with different EC configurations. Using a command-line like interface the user can specify which strategies will this factory generate. Since the class can be dynamically loaded the strategies can be set in the service configurator file. = MEMORY MANAGMENT


Constructor & Destructor Documentation

TAO_CEC_Default_Factory::TAO_CEC_Default_Factory ( void  )

Constructor.

TAO_CEC_Default_Factory::~TAO_CEC_Default_Factory ( void  ) [virtual]

destructor...


Member Function Documentation

TAO_CEC_ConsumerAdmin * TAO_CEC_Default_Factory::create_consumer_admin ( TAO_CEC_EventChannel ) [virtual]

Create and destroy the consumer admin implementation.

Implements TAO_CEC_Factory.

TAO_CEC_ConsumerControl * TAO_CEC_Default_Factory::create_consumer_control ( TAO_CEC_EventChannel ) [virtual]

The ConsumerControl and SupplierControl strategies are used to discard non-existent consumers and suppliers

Implements TAO_CEC_Factory.

ACE_Lock * TAO_CEC_Default_Factory::create_consumer_lock ( void  ) [virtual]

Create and destroy the locking strategies for both ProxyPushConsumers and ProxyPushSuppliers

Implements TAO_CEC_Factory.

TAO_CEC_Dispatching * TAO_CEC_Default_Factory::create_dispatching ( TAO_CEC_EventChannel ) [virtual]

Create and destroy the dispatching module.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPullConsumer * TAO_CEC_Default_Factory::create_proxy_pull_consumer ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a ProxyPullConsumer.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPullConsumer_Collection * TAO_CEC_Default_Factory::create_proxy_pull_consumer_collection ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a collection of TAO_CEC_ProxyPullConsumers.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPullSupplier * TAO_CEC_Default_Factory::create_proxy_pull_supplier ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a ProxyPullSupplier.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPullSupplier_Collection * TAO_CEC_Default_Factory::create_proxy_pull_supplier_collection ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a collection of TAO_CEC_ProxyPullSuppliers.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPushConsumer * TAO_CEC_Default_Factory::create_proxy_push_consumer ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a ProxyPushConsumer.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPushConsumer_Collection * TAO_CEC_Default_Factory::create_proxy_push_consumer_collection ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a collection of TAO_CEC_ProxyPushConsumers.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPushSupplier * TAO_CEC_Default_Factory::create_proxy_push_supplier ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a ProxyPushSupplier.

Implements TAO_CEC_Factory.

TAO_CEC_ProxyPushSupplier_Collection * TAO_CEC_Default_Factory::create_proxy_push_supplier_collection ( TAO_CEC_EventChannel ) [virtual]

Create and destroy a collection of TAO_CEC_ProxyPushSuppliers.

Implements TAO_CEC_Factory.

TAO_CEC_Pulling_Strategy * TAO_CEC_Default_Factory::create_pulling_strategy ( TAO_CEC_EventChannel ) [virtual]

Create and destroy the pulling strategy.

Implements TAO_CEC_Factory.

CORBA::Policy_ptr TAO_CEC_Default_Factory::create_roundtrip_timeout_policy ( const ACE_Time_Value timeout) [virtual]

Implements TAO_CEC_Factory.

TAO_CEC_SupplierAdmin * TAO_CEC_Default_Factory::create_supplier_admin ( TAO_CEC_EventChannel ) [virtual]

Create and destroy the supplier admin implementation.

Implements TAO_CEC_Factory.

TAO_CEC_SupplierControl * TAO_CEC_Default_Factory::create_supplier_control ( TAO_CEC_EventChannel ec) [virtual]

Implements TAO_CEC_Factory.

ACE_Lock * TAO_CEC_Default_Factory::create_supplier_lock ( void  ) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_consumer_admin ( TAO_CEC_ConsumerAdmin x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_consumer_control ( TAO_CEC_ConsumerControl x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_consumer_lock ( ACE_Lock x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_dispatching ( TAO_CEC_Dispatching x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_pull_consumer ( TAO_CEC_ProxyPullConsumer x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_pull_consumer_collection ( TAO_CEC_ProxyPullConsumer_Collection x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_pull_supplier ( TAO_CEC_ProxyPullSupplier x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_pull_supplier_collection ( TAO_CEC_ProxyPullSupplier_Collection x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_push_consumer ( TAO_CEC_ProxyPushConsumer x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_push_consumer_collection ( TAO_CEC_ProxyPushConsumer_Collection x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_push_supplier ( TAO_CEC_ProxyPushSupplier x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_proxy_push_supplier_collection ( TAO_CEC_ProxyPushSupplier_Collection x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_pulling_strategy ( TAO_CEC_Pulling_Strategy x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_supplier_admin ( TAO_CEC_SupplierAdmin x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_supplier_control ( TAO_CEC_SupplierControl x) [virtual]

Implements TAO_CEC_Factory.

void TAO_CEC_Default_Factory::destroy_supplier_lock ( ACE_Lock x) [virtual]

Implements TAO_CEC_Factory.

int TAO_CEC_Default_Factory::fini ( void  ) [virtual]

Reimplemented from ACE_Shared_Object.

int TAO_CEC_Default_Factory::init ( int  argc,
ACE_TCHAR argv[]
) [virtual]

Reimplemented from ACE_Shared_Object.

int TAO_CEC_Default_Factory::init_svcs ( void  ) [static]

Helper function to register the default factory into the service configurator.

int TAO_CEC_Default_Factory::parse_collection_arg ( ACE_TCHAR opt) [private]

Parse an argument to set the type of collections used.


Member Data Documentation

The consumer and supplier control policies.

The consumer and supplier control periods in usecs.

The consumer and supplier control timeout in usecs.

The consumer and supplier operation timeouts. Only in effect if the corresponding "reactive control" is enabled. Applies the given timeout as the round-trip time policy on the object reference.

Several flags to control the kind of object created.

The MT dispatching priority has several arguments that could be controlled here...

Use this ORB to locate global resources.

Indicate ORB ID has been duplicated (memory allocated).

The number of retries before disconnecting a proxy.

How often (in microseconds) are the pull suppliers polled by the reactive pulling strategy.


The documentation for this class was generated from the following files:
