ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL > Class Template Reference

#include <StreamHandler.h>

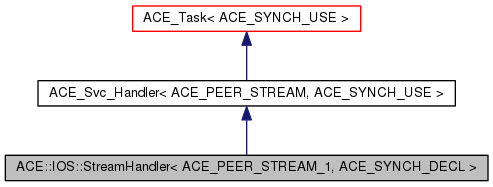

Inheritance diagram for ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >:

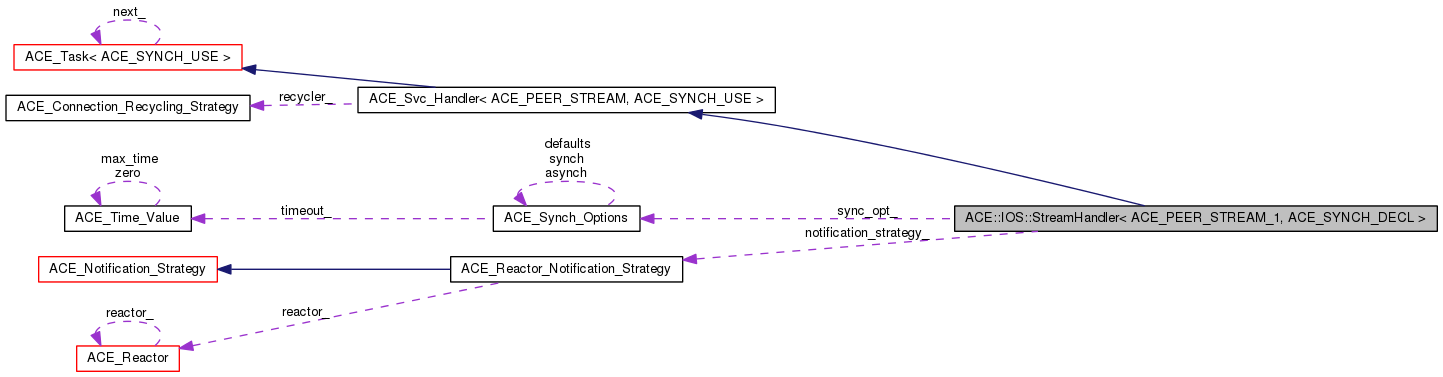

Collaboration diagram for ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >:

List of all members.

Classes
class	NotificationStrategyGuard
Public Types
typedef StreamHandler < ACE_PEER_STREAM, ACE_SYNCH_USE >	this_type
typedef ACE_Svc_Handler < ACE_PEER_STREAM, ACE_SYNCH_USE >	base_type
typedef ACE_Message_Queue < ACE_SYNCH_USE >	mq_type
Public Member Functions
	StreamHandler (const ACE_Synch_Options &synch_options=ACE_Synch_Options::defaults, ACE_Thread_Manager *thr_mgr=0, mq_type *mq=0, ACE_Reactor *reactor=ACE_Reactor::instance())
	Constructor.
virtual	~StreamHandler ()
	Destructor.
virtual int	open (void *=0)
	Activate the connection.
virtual int	close (u_long flags=0)
	Close the connection.
virtual int	handle_input (ACE_HANDLE)
virtual int	handle_output (ACE_HANDLE)
int	read_from_stream (void *buf, size_t length, u_short char_size)
	Called by streambuffer to read/receive new data from peer.
int	write_to_stream (const void *buf, size_t length, u_short char_size)
	Called by streambuffer to send new data to peer.
bool	is_connected () const
	Returns true as long as the connection to peer is active.
bool	using_reactor () const
	Returns true if StreamHandler has been configured for reactive mode.
Private Types
enum	{ MAX_INPUT_SIZE = 4096 }
Private Member Functions
int	handle_output_i (ACE_Time_Value *timeout=0)
int	handle_input_i (size_t rdlen, ACE_Time_Value *timeout=0)
int	process_input (char *buf, size_t &char_length, u_short char_size, ACE_Time_Value *timeout)
	processes queued input
bool	use_timeout () const
	Returns true if a timeout is to be used on IO operations.
bool	char_in_queue (u_short char_size)
	Returns true is the queued data contains at least char_size bytes.
Private Attributes
bool	connected_
ACE_Synch_Options	sync_opt_
bool	send_timeout_
bool	receive_timeout_
ACE_Reactor_Notification_Strategy	notification_strategy_

template<ACE_PEER_STREAM_1, ACE_SYNCH_DECL>
class ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >

---

Member Typedef Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

typedef ACE_Svc_Handler<ACE_PEER_STREAM, ACE_SYNCH_USE> ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::base_type

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

typedef ACE_Message_Queue<ACE_SYNCH_USE> ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::mq_type

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

typedef StreamHandler<ACE_PEER_STREAM, ACE_SYNCH_USE> ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::this_type

---

Member Enumeration Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

anonymous enum [private]

Enumerator:

MAX_INPUT_SIZE

---

Constructor & Destructor Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::StreamHandler	(	const ACE_Synch_Options &	synch_options = ACE_Synch_Options::defaults,
		ACE_Thread_Manager *	thr_mgr = 0,
		mq_type *	mq = 0,
		ACE_Reactor *	reactor = ACE_Reactor::instance ()
	)

Constructor.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::~StreamHandler

(

)

[virtual]

Destructor.

---

Member Function Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

bool ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::char_in_queue

(

u_short

char_size

)

[private]

Returns true is the queued data contains at least char_size bytes.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::close

(

u_long

flags = 0

)

[virtual]

Close the connection.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM, ACE_SYNCH_USE >.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::handle_input

(

ACE_HANDLE

)

[virtual]

Called to handle incoming data when using StreamHandler in reactive mode

Reimplemented from ACE_Event_Handler.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::handle_input_i	(	size_t	rdlen,
		ACE_Time_Value *	timeout = 0
	)		[private]

Attempts to send queued data to peer. Called either from handle_output in reactive mode or directly from write_to_stream when non-reactive.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::handle_output

(

ACE_HANDLE

)

[virtual]

Called to handle outgoing data when using StreamHandler in reactive mode

Reimplemented from ACE_Event_Handler.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::handle_output_i

(

ACE_Time_Value *

timeout = 0

)

[private]

Attempts to receive data from peer and queue it. Called either from handle_input in reactive mode or directly from read_from_stream when non-reactive.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

bool ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::is_connected

(

)

const

Returns true as long as the connection to peer is active.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::open

(

void *

= 0

)

[virtual]

Activate the connection.

Reimplemented from ACE_Svc_Handler< ACE_PEER_STREAM, ACE_SYNCH_USE >.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::process_input	(	char *	buf,
		size_t &	char_length,
		u_short	char_size,
		ACE_Time_Value *	timeout
	)		[private]

processes queued input

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::read_from_stream	(	void *	buf,
		size_t	length,
		u_short	char_size
	)

Called by streambuffer to read/receive new data from peer.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

bool ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::use_timeout

(

)

const [private]

Returns true if a timeout is to be used on IO operations.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

bool ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::using_reactor

(

)

const

Returns true if StreamHandler has been configured for reactive mode.

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

int ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::write_to_stream	(	const void *	buf,
		size_t	length,
		u_short	char_size
	)

Called by streambuffer to send new data to peer.

---

Member Data Documentation

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

bool ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::connected_ [private]

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

ACE_Reactor_Notification_Strategy ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::notification_strategy_ [private]

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

bool ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::receive_timeout_ [private]

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

bool ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::send_timeout_ [private]

template<ACE_PEER_STREAM_1 , ACE_SYNCH_DECL >

ACE_Synch_Options ACE::IOS::StreamHandler< ACE_PEER_STREAM_1, ACE_SYNCH_DECL >::sync_opt_ [private]

---

The documentation for this class was generated from the following files:

• StreamHandler.h
• StreamHandler.cpp
