Provides an interface to timers. More...

#include <Timer_Queue_T.h>

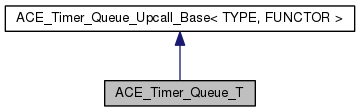

Inheritance diagram for ACE_Timer_Queue_T:

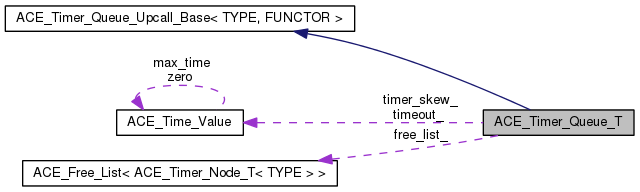

Collaboration diagram for ACE_Timer_Queue_T:

Public Member Functions
	ACE_Timer_Queue_T (FUNCTOR upcall_functor=0, ACE_Free_List< ACE_Timer_Node_T< TYPE > > freelist=0, TIME_POLICY const &time_policy=TIME_POLICY())
virtual	~ACE_Timer_Queue_T (void)
virtual long	schedule (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)
virtual int	dispatch_info (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
virtual void	gettimeofday (ACE_Time_Value(*gettimeofday)(void))
ACE_Time_Value	gettimeofday_static ()
void	set_time_policy (TIME_POLICY const &time_policy)
void	timer_skew (const ACE_Time_Value &skew)
	Set the timer skew for the Timer_Queue.
const ACE_Time_Value &	timer_skew (void) const
	Get the timer skew for the Timer_Queue.
ACE_LOCK &	mutex (void)
	Synchronization variable used by the queue.
virtual void	dump (void) const
	Dump the state of a object.
virtual void	return_node (ACE_Timer_Node_T< TYPE > *)
void	preinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *&upcall_act)
	This method will call the preinvoke() on <functor>.
void	upcall (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time)
	This method will call the timeout() on <functor>.
void	postinvoke (ACE_Timer_Node_Dispatch_Info_T< TYPE > &info, const ACE_Time_Value &cur_time, const void *upcall_act)
	This method will call the postinvoke() on <functor>.

virtual int	expire (const ACE_Time_Value &current_time)
virtual int	expire (void)
virtual int	expire_single (ACE_Command_Base &pre_dispatch_command)

virtual ACE_Time_Value	gettimeofday (void)

virtual ACE_Time_Value *	calculate_timeout (ACE_Time_Value *max)
virtual ACE_Time_Value *	calculate_timeout (ACE_Time_Value max, ACE_Time_Value the_timeout)
virtual ACE_Time_Value	current_time ()
Protected Member Functions
virtual long	schedule_i (const TYPE &type, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval)=0
	Schedule a timer.
virtual void	reschedule (ACE_Timer_Node_T< TYPE > *)=0
	Reschedule an "interval" ACE_Timer_Node.
virtual ACE_Timer_Node_T< TYPE > *	alloc_node (void)
	Factory method that allocates a new node.
virtual void	free_node (ACE_Timer_Node_T< TYPE > *)
	Factory method that frees a previously allocated node.
virtual int	dispatch_info_i (const ACE_Time_Value &current_time, ACE_Timer_Node_Dispatch_Info_T< TYPE > &info)
	Non-locking version of dispatch_info ()
void	recompute_next_abs_interval_time (ACE_Timer_Node_T< TYPE > *expired, const ACE_Time_Value &cur_time)
	Recompute when the next time is that this interval timer should fire.
Protected Attributes
ACE_LOCK	mutex_
ACE_Free_List < ACE_Timer_Node_T< TYPE > > *	free_list_
	Class that implements a free list.
TIME_POLICY	time_policy_
	The policy to return the current time of day.
bool const	delete_free_list_
	Flag to delete only if the class created the <free_list_>
Private Attributes
ACE_Time_Value	timeout_
	Returned by <calculate_timeout>.
ACE_Time_Value	timer_skew_
	Adjusts for timer skew in various clocks.

Detailed Description

Provides an interface to timers.

This is an abstract base class that provides hook for implementing specialized policies such as ACE_Timer_List and ACE_Timer_Heap.

Constructor & Destructor Documentation

ACE_Timer_Queue_T::ACE_Timer_Queue_T	(	FUNCTOR *	upcall_functor = `0`,
		ACE_Free_List< ACE_Timer_Node_T< TYPE > > *	freelist = `0`,
		TIME_POLICY const &	time_policy = `TIME_POLICY()`
	)

Default constructor. upcall_functor is the instance of the FUNCTOR to be used by the queue. If upcall_functor is 0, Timer Queue will create a default FUNCTOR. freelist the freelist of timer nodes. If 0, then a default freelist will be created.

virtual ACE_Timer_Queue_T::~ACE_Timer_Queue_T ( void ) [virtual]

Destructor - make virtual for proper destruction of inherited classes.

Member Function Documentation

virtual ACE_Timer_Node_T<TYPE>* ACE_Timer_Queue_T::alloc_node ( void ) [protected, virtual]

Factory method that allocates a new node.

Reimplemented in ACE_Timer_Heap_T.

virtual ACE_Time_Value* ACE_Timer_Queue_T::calculate_timeout ( ACE_Time_Value * max ) [virtual]

Determine the next event to timeout. Returns max if there are no pending timers or if all pending timers are longer than max. This method acquires a lock internally since it modifies internal state. Implement calculate_timeout() using the right locking policy

virtual ACE_Time_Value* ACE_Timer_Queue_T::calculate_timeout	(	ACE_Time_Value *	max,
		ACE_Time_Value *	the_timeout
	)		`[virtual]`

Determine the next event to timeout. Returns max if there are no pending timers or if all pending timers are longer than max. This method acquires a lock internally since it modifies internal state. Implement calculate_timeout() using the right locking policy

virtual ACE_Time_Value ACE_Timer_Queue_T::current_time ( ) [virtual]

Determine the next event to timeout. Returns max if there are no pending timers or if all pending timers are longer than max. This method acquires a lock internally since it modifies internal state. Implement calculate_timeout() using the right locking policy

virtual int ACE_Timer_Queue_T::dispatch_info	(	const ACE_Time_Value &	current_time,
		ACE_Timer_Node_Dispatch_Info_T< TYPE > &	info
	)		`[virtual]`

Get the dispatch information for a timer whose value is <= current_time. This does not account for <timer_skew>. Returns 1 if there is a node whose value <= current_time else returns a 0.

virtual int ACE_Timer_Queue_T::dispatch_info_i	(	const ACE_Time_Value &	current_time,
		ACE_Timer_Node_Dispatch_Info_T< TYPE > &	info
	)		`[protected, virtual]`

Non-locking version of dispatch_info ()

Reimplemented in ACE_Timer_Hash_T.

virtual void ACE_Timer_Queue_T::dump ( void ) const [virtual]

Dump the state of a object.

Reimplemented in ACE_Timer_Hash_T, ACE_Timer_Heap_T, ACE_Timer_Wheel_T, and ACE_Timer_List_T.

virtual int ACE_Timer_Queue_T::expire ( const ACE_Time_Value & current_time ) [virtual]

Implement ACE_Abstract_Timer_Queue<TYPE>::expire () with the right locking strategy.

Reimplemented in ACE_Timer_Hash_T, and ACE_Timer_Wheel_T.

virtual int ACE_Timer_Queue_T::expire ( void ) [virtual]

Implement ACE_Abstract_Timer_Queue<TYPE>::expire () with the right locking strategy.

Reimplemented in ACE_Timer_Hash_T, and ACE_Timer_Wheel_T.

virtual int ACE_Timer_Queue_T::expire_single ( ACE_Command_Base & pre_dispatch_command ) [virtual]

Implement ACE_Abstract_Timer_Queue<TYPE>::expire () with the right locking strategy.

virtual void ACE_Timer_Queue_T::free_node ( ACE_Timer_Node_T< TYPE > * ) [protected, virtual]

Factory method that frees a previously allocated node.

Reimplemented in ACE_Timer_Hash_T, and ACE_Timer_Heap_T.

virtual ACE_Time_Value ACE_Timer_Queue_T::gettimeofday ( void ) [virtual]

Implement the gettimeofday() virtual function

virtual void ACE_Timer_Queue_T::gettimeofday ( ACE_Time_Value(*)(void) gettimeofday ) [virtual]

Allows applications to control how the timer queue gets the time of day.

Deprecated:: Use TIME_POLICY support instead. This will only have effect when the TIME_POLICY used is ACE_FPointer_Time_Policy. Other standard ACE time policies will ignore this.

ACE_Time_Value ACE_Timer_Queue_T::gettimeofday_static ( )

Implement an inlined, non-abstract version of gettimeofday(), through this member function the internals of the class can make calls to ACE_OS::gettimeofday() with zero overhead.

ACE_LOCK& ACE_Timer_Queue_T::mutex ( void )

Synchronization variable used by the queue.

void ACE_Timer_Queue_T::postinvoke	(	ACE_Timer_Node_Dispatch_Info_T< TYPE > &	info,
		const ACE_Time_Value &	cur_time,
		const void *	upcall_act
	)

This method will call the postinvoke() on <functor>.

void ACE_Timer_Queue_T::preinvoke	(	ACE_Timer_Node_Dispatch_Info_T< TYPE > &	info,
		const ACE_Time_Value &	cur_time,
		const void *&	upcall_act
	)

This method will call the preinvoke() on <functor>.

void ACE_Timer_Queue_T::recompute_next_abs_interval_time	(	ACE_Timer_Node_T< TYPE > *	expired,
		const ACE_Time_Value &	cur_time
	)		`[protected]`

Recompute when the next time is that this interval timer should fire.

virtual void ACE_Timer_Queue_T::reschedule ( ACE_Timer_Node_T< TYPE > * ) [protected, pure virtual]

Reschedule an "interval" ACE_Timer_Node.

Implemented in ACE_Timer_Hash_T, ACE_Timer_Heap_T, ACE_Timer_Wheel_T, and ACE_Timer_List_T.

virtual void ACE_Timer_Queue_T::return_node ( ACE_Timer_Node_T< TYPE > * ) [virtual]

Method used to return a timer node to the queue's ownership after it is returned by a method like <remove_first>.

virtual long ACE_Timer_Queue_T::schedule	(	const TYPE &	type,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval = `ACE_Time_Value::zero`
	)		`[virtual]`

Implement ACE_Abstract_Timer_Queue<TYPE>::schedule () with the right locking strategy.

virtual long ACE_Timer_Queue_T::schedule_i	(	const TYPE &	type,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval
	)		`[protected, pure virtual]`
