#include <UIPMC_Endpoint.h>

Inheritance diagram for TAO_UIPMC_Endpoint:

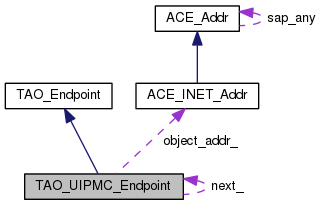

Collaboration diagram for TAO_UIPMC_Endpoint:

Public Member Functions
	TAO_UIPMC_Endpoint (void)
	Default constructor.
	TAO_UIPMC_Endpoint (const ACE_INET_Addr &addr)
	Constructor.
	TAO_UIPMC_Endpoint (const CORBA::Octet class_d_address[4], CORBA::UShort port)
	Constructor. @ Frank - deprecate this.
	~TAO_UIPMC_Endpoint (void)
	Destructor.
virtual TAO_Endpoint *	next (void)
virtual int	addr_to_string (char *buffer, size_t length)
virtual TAO_Endpoint *	duplicate (void)
	Makes a copy of <this>
CORBA::Boolean	is_equivalent (const TAO_Endpoint *other_endpoint)
CORBA::ULong	hash (void)
	Return a hash value for this object.
const ACE_INET_Addr &	object_addr (void) const
	Return a reference to the <object_addr>.
void	object_addr (const ACE_INET_Addr &addr)
	Set the IP multicast address and port.
const char *	host (void) const
CORBA::UShort	port (void) const
	Return the port number.
CORBA::UShort	port (CORBA::UShort p)
	Set the port number.
Private Member Functions
ACE_UINT32	uint_ip_addr (void) const
	Helper methods for getting and setting the IP address. @ Vadym - deprecate these.
void	uint_ip_addr (ACE_UINT32 ip_addr)
void	update_object_addr (void)
	Helper method to update the cached object address. @ Vadym - deprecate this.
Private Attributes
CORBA::Octet	class_d_address_ [4]
	IP Multicast address. @ Frank - deprecate this.
CORBA::String_var	host_
	String representing the host address.
CORBA::UShort	port_
	UDP port number.
ACE_INET_Addr	object_addr_
TAO_UIPMC_Endpoint *	next_

Detailed Description

TAO_UIPMC_Endpoint.

UIPMC-specific implementation of PP Framework Endpoint interface.

Constructor & Destructor Documentation

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint ( void )

Default constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint ( const ACE_INET_Addr & addr )

Constructor.

TAO_UIPMC_Endpoint::TAO_UIPMC_Endpoint	(	const CORBA::Octet	class_d_address[4],
		CORBA::UShort	port
	)

Constructor. @ Frank - deprecate this.

TAO_UIPMC_Endpoint::~TAO_UIPMC_Endpoint ( void )

Destructor.

Member Function Documentation

int TAO_UIPMC_Endpoint::addr_to_string	(	char *	buffer,
		size_t	length
	)		`[virtual]`

Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::duplicate ( void ) [virtual]

Makes a copy of <this>

Implements TAO_Endpoint.

CORBA::ULong TAO_UIPMC_Endpoint::hash ( void ) [virtual]

Return a hash value for this object.

Implements TAO_Endpoint.

const char * TAO_UIPMC_Endpoint::host ( void ) const

Return a pointer to the stringified host address (not including the port). This class retains ownership of the address memory.

CORBA::Boolean TAO_UIPMC_Endpoint::is_equivalent ( const TAO_Endpoint * other_endpoint ) [virtual]

Return true if this endpoint is equivalent to other_endpoint. Two endpoints are equivalent if their port and host are the same.

Implements TAO_Endpoint.

TAO_Endpoint * TAO_UIPMC_Endpoint::next ( void ) [virtual]

Implements TAO_Endpoint.

const ACE_INET_Addr & TAO_UIPMC_Endpoint::object_addr ( void ) const

Return a reference to the <object_addr>.

void TAO_UIPMC_Endpoint::object_addr ( const ACE_INET_Addr & addr )

Set the IP multicast address and port.

CORBA::UShort TAO_UIPMC_Endpoint::port ( void ) const

Return the port number.

CORBA::UShort TAO_UIPMC_Endpoint::port ( CORBA::UShort p )

Set the port number.

ACE_UINT32 TAO_UIPMC_Endpoint::uint_ip_addr ( void ) const [private]

Helper methods for getting and setting the IP address. @ Vadym - deprecate these.

void TAO_UIPMC_Endpoint::uint_ip_addr ( ACE_UINT32 ip_addr ) [private]

void TAO_UIPMC_Endpoint::update_object_addr ( void ) [private]

Helper method to update the cached object address. @ Vadym - deprecate this.

Member Data Documentation

CORBA::Octet TAO_UIPMC_Endpoint::class_d_address_[4] [private]

IP Multicast address. @ Frank - deprecate this.

CORBA::String_var TAO_UIPMC_Endpoint::host_ [private]

String representing the host address.

TAO_UIPMC_Endpoint* TAO_UIPMC_Endpoint::next_ [private]

UIPMC Endpoints can be stringed into a list. Return the next endpoint in the list, if any.

ACE_INET_Addr TAO_UIPMC_Endpoint::object_addr_ [private]

Cached instance of <ACE_INET_Addr> for use in making invocations, etc.

CORBA::UShort TAO_UIPMC_Endpoint::port_ [private]

UDP port number.
