TAO_PortableGroup  2.0.6
Public Member Functions | Private Types | Private Attributes
TAO::PG_Group_Factory Class Reference

#include <PG_Group_Factory.h>

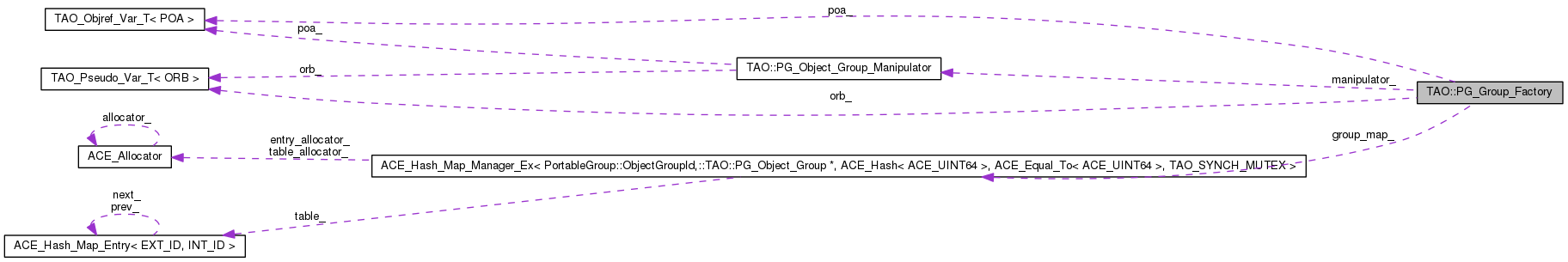

Collaboration diagram for TAO::PG_Group_Factory:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 PG_Group_Factory ()
 Constructor.
 ~PG_Group_Factory ()
 Destructor.
void init (CORBA::ORB_ptr orb, PortableServer::POA_ptr poa, PortableGroup::FactoryRegistry_ptr factory_registry)
TAO::PG_Object_Group * create_group (const char *type_id, const PortableGroup::Criteria &the_criteria, TAO::PG_Property_Set *typeid_properties)
void delete_group (PortableGroup::ObjectGroup_ptr object_group)
void delete_group (PortableGroup::ObjectGroupId group_id)
PortableGroup::ObjectGroupsgroups_at_location (const PortableGroup::Location &the_location)
int insert_group (::TAO::PG_Object_Group *group)
int insert_group (PortableGroup::ObjectGroupId group_id,::TAO::PG_Object_Group *group)
int find_group (PortableGroup::ObjectGroupId group_id,::TAO::PG_Object_Group *&group) const
int find_group (PortableGroup::ObjectGroup_ptr object_group,::TAO::PG_Object_Group *&group) const
int destroy_group (PortableGroup::ObjectGroupId object_group_id)
int destroy_group (PortableGroup::ObjectGroup_ptr object_group)

Private Types

typedef
ACE_Hash_Map_Manager_Ex
< PortableGroup::ObjectGroupId,::TAO::PG_Object_Group
*, ACE_Hash< ACE_UINT64 >
, ACE_Equal_To< ACE_UINT64 >
, TAO_SYNCH_MUTEX
Group_Map
typedef ACE_Hash_Map_Entry
< PortableGroup::ObjectGroupId,::TAO::PG_Object_Group * >
Group_Map_Entry
typedef
ACE_Hash_Map_Iterator_Ex
< PortableGroup::ObjectGroupId,::TAO::PG_Object_Group
*, ACE_Hash< ACE_UINT64 >
, ACE_Equal_To< ACE_UINT64 >
, TAO_SYNCH_MUTEX
Group_Map_Iterator

Private Attributes

CORBA::ORB_var orb_
PortableServer::POA_var poa_
 Reference to the POA used to create object group references.
PortableGroup::FactoryRegistry_var factory_registry_
 The factory registry for replica factories.
::TAO::PG_Object_Group_Manipulator manipulator_
const char * domain_id_
Group_Map group_map_

Detailed Description

class PG_Group_Factory


Member Typedef Documentation

typedef ACE_Hash_Map_Manager_Ex< PortableGroup::ObjectGroupId, ::TAO::PG_Object_Group *, ACE_Hash<ACE_UINT64>, ACE_Equal_To<ACE_UINT64>, TAO_SYNCH_MUTEX> TAO::PG_Group_Factory::Group_Map [private]
typedef ACE_Hash_Map_Entry<PortableGroup::ObjectGroupId, ::TAO::PG_Object_Group *> TAO::PG_Group_Factory::Group_Map_Entry [private]
typedef ACE_Hash_Map_Iterator_Ex< PortableGroup::ObjectGroupId, ::TAO::PG_Object_Group *, ACE_Hash<ACE_UINT64>, ACE_Equal_To<ACE_UINT64>, TAO_SYNCH_MUTEX> TAO::PG_Group_Factory::Group_Map_Iterator [private]

Constructor & Destructor Documentation

TAO::PG_Group_Factory::PG_Group_Factory ( )

Constructor.

TAO::PG_Group_Factory::~PG_Group_Factory ( void  )

Destructor.


Member Function Documentation

TAO::PG_Object_Group * TAO::PG_Group_Factory::create_group ( const char *  type_id,
const PortableGroup::Criteria the_criteria,
TAO::PG_Property_Set *  typeid_properties
)
void TAO::PG_Group_Factory::delete_group ( PortableGroup::ObjectGroup_ptr  object_group)
void TAO::PG_Group_Factory::delete_group ( PortableGroup::ObjectGroupId  group_id)
int TAO::PG_Group_Factory::destroy_group ( PortableGroup::ObjectGroupId  object_group_id)

remove group from map and delete it.

Returns:
bool true if found
int TAO::PG_Group_Factory::destroy_group ( PortableGroup::ObjectGroup_ptr  object_group)

remove group from map and delete it. note: uses group id extracted from object_group

Returns:
bool true if found
int TAO::PG_Group_Factory::find_group ( PortableGroup::ObjectGroupId  group_id,
::TAO::PG_Object_Group *&  group
) const

find group

Returns:
bool true if found
int TAO::PG_Group_Factory::find_group ( PortableGroup::ObjectGroup_ptr  object_group,
::TAO::PG_Object_Group *&  group
) const

find group note: uses group id extracted from object_group

Returns:
bool true if found
PortableGroup::ObjectGroups * TAO::PG_Group_Factory::groups_at_location ( const PortableGroup::Location the_location)
void TAO::PG_Group_Factory::init ( CORBA::ORB_ptr  orb,
PortableServer::POA_ptr  poa,
PortableGroup::FactoryRegistry_ptr  factory_registry
)
int TAO::PG_Group_Factory::insert_group ( ::TAO::PG_Object_Group *  group)

insert existing group. Take ownership note: uses group id extracted from group object

Returns:
bool true if insertion successful
int TAO::PG_Group_Factory::insert_group ( PortableGroup::ObjectGroupId  group_id,
::TAO::PG_Object_Group *  group
)

insert group. Take ownership

Returns:
bool true if insertion successful

Member Data Documentation

const char* TAO::PG_Group_Factory::domain_id_ [private]
PortableGroup::FactoryRegistry_var TAO::PG_Group_Factory::factory_registry_ [private]

The factory registry for replica factories.

Group_Map TAO::PG_Group_Factory::group_map_ [private]
::TAO::PG_Object_Group_Manipulator TAO::PG_Group_Factory::manipulator_ [private]
CORBA::ORB_var TAO::PG_Group_Factory::orb_ [private]
PortableServer::POA_var TAO::PG_Group_Factory::poa_ [private]

Reference to the POA used to create object group references.


The documentation for this class was generated from the following files:
