CIAO::Container_i Class Reference

Common container interface definition. More...

#include <Container_Base_T.h>

Inheritance diagram for CIAO::Container_i:

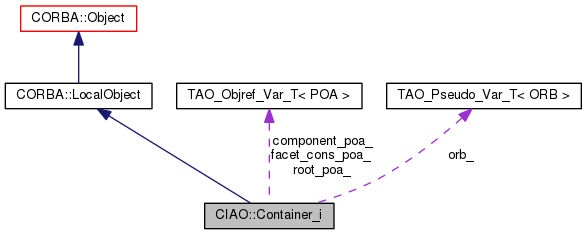

Collaboration diagram for CIAO::Container_i:

List of all members.

Public Member Functions
	Container_i (CORBA::ORB_ptr o, PortableServer::POA_ptr root_poa)
virtual	~Container_i (void)
virtual void	init (const char *name)
	Initialize the container with a name.
virtual void	fini (void)
	Cleanup method.
virtual PortableServer::POA_ptr	the_POA (void)
	Get component's POA.
virtual PortableServer::POA_ptr	the_port_POA (void)
virtual Components::CCMHome_ptr	install_home (const char *primary_artifact, const char *entry_point, const char *servant_artifact, const char *servant_entrypoint, const char *name)=0
	Install a new home.
virtual void	uninstall_home (Components::CCMHome_ptr homeref)
	Uninstall a servant for component or home.
virtual Components::CCMObject_ptr	install_component (const char *primary_artifact, const char *entry_point, const char *servant_artifact, const char *servant_entrypoint, const char *name)=0
virtual void	set_attributes (CORBA::Object_ptr compref, const ::Components::ConfigValues &values)
virtual void	activate_component (Components::CCMObject_ptr compref)
	Activate component.
virtual void	passivate_component (Components::CCMObject_ptr compref)
	Passivate a component.
virtual void	uninstall_component (Components::CCMObject_ptr compref)
	Uninstall a given component.
virtual ::Components::Cookie *	connect_local_facet (::Components::CCMObject_ptr provider, const char *provider_port,::Components::CCMObject_ptr user, const char *user_port)
	Connect a local facet.
virtual void	disconnect_local_facet (::Components::Cookie *cookie,::Components::CCMObject_ptr provider, const char *provider_port,::Components::CCMObject_ptr user, const char *user_port)
	Disconnect a local facet.
virtual CORBA::Object_ptr	install_servant (PortableServer::Servant objref, Container_Types::OA_Type type, PortableServer::ObjectId_out oid)
virtual void	uninstall_servant (PortableServer::Servant objref, Container_Types::OA_Type type, PortableServer::ObjectId_out oid)
	Uninstall a servant for component.
virtual CORBA::Object_ptr	get_objref (PortableServer::Servant p)
virtual CORBA::Object_ptr	generate_reference (const char *obj_id, const char *repo_id, Container_Types::OA_Type t)
CORBA::ORB_ptr	the_ORB (void) const
	Get a reference to the underlying ORB.
virtual CORBA::Object_ptr	resolve_service_reference (const char *service_id)
Protected Member Functions
void	uninstall (CORBA::Object_ptr objref, Container_Types::OA_Type t)
	Uninstall a servant for component or home.
void	prepare_installation (const char *entity, const char *primary_artifact, const char *entry_point, const char *servant_artifact, const char *servant_entrypoint, const char *name, ACE_DLL &executor_dll, ACE_DLL &servant_dll)
Protected Attributes
CORBA::ORB_var	orb_
	Reference to the ORB.
PortableServer::POA_var	root_poa_
	POA used as root.
PortableServer::POA_var	component_poa_
PortableServer::POA_var	facet_cons_poa_
Private Member Functions
	Container_i (void)
	Not allowed to be used.
void	create_component_POA (const char *name, PortableServer::POA_ptr root)
	Create POA for the component.
void	create_facet_consumer_POA (const char *name, PortableServer::POA_ptr root)
	Create POA for the facets and consumers alone.

---

Detailed Description

Common container interface definition.

Perhaps we can use local interface to define these interfaces as we will also get reference counting automatically.

---

Constructor & Destructor Documentation

CIAO::Container_i::Container_i	(	CORBA::ORB_ptr	o,
		PortableServer::POA_ptr	root_poa
	)

CIAO::Container_i::~Container_i

(

void

)

[virtual]

CIAO::Container_i::Container_i

(

void

)

[private]

Not allowed to be used.

---

Member Function Documentation

void CIAO::Container_i::activate_component

(

Components::CCMObject_ptr

compref

)

[virtual]

Activate component.

Components::Cookie * CIAO::Container_i::connect_local_facet	(	::Components::CCMObject_ptr	provider,
		const char *	provider_port,
		::Components::CCMObject_ptr	user,
		const char *	user_port
	)

Connect a local facet.

void CIAO::Container_i::create_component_POA	(	const char *	name,
		PortableServer::POA_ptr	root
	)		[private]

Create POA for the component.

This is the POA that is returned to the component applications if they need one.

void CIAO::Container_i::create_facet_consumer_POA	(	const char *	name,
		PortableServer::POA_ptr	root
	)		[private]

Create POA for the facets and consumers alone.

void CIAO::Container_i::disconnect_local_facet	(	::Components::Cookie *	cookie,
		::Components::CCMObject_ptr	provider,
		const char *	provider_port,
		::Components::CCMObject_ptr	user,
		const char *	user_port
	)		[virtual]

Disconnect a local facet.

void CIAO::Container_i::fini

(

void

)

[virtual]

Cleanup method.

Reimplemented in CIAO::Extension_Container_i, and CIAO::Session_Container_i.

CORBA::Object_ptr CIAO::Container_i::generate_reference	(	const char *	obj_id,
		const char *	repo_id,
		Container_Types::OA_Type	t
	)		[virtual]

Analog of the POA method that creates an object reference from an object id string.

CORBA::Object_ptr CIAO::Container_i::get_objref

(

PortableServer::Servant

p

)

[virtual]

void CIAO::Container_i::init

(

const char *

name

)

[virtual]

Initialize the container with a name.

Reimplemented in CIAO::Extension_Container_i, and CIAO::Session_Container_i.

virtual Components::CCMObject_ptr CIAO::Container_i::install_component	(	const char *	primary_artifact,
		const char *	entry_point,
		const char *	servant_artifact,
		const char *	servant_entrypoint,
		const char *	name
	)		[pure virtual]

Implemented in CIAO::Extension_Container_i, and CIAO::Session_Container_i.

virtual Components::CCMHome_ptr CIAO::Container_i::install_home	(	const char *	primary_artifact,
		const char *	entry_point,
		const char *	servant_artifact,
		const char *	servant_entrypoint,
		const char *	name
	)		[pure virtual]

Install a new home.

Implemented in CIAO::Extension_Container_i, and CIAO::Session_Container_i.

CORBA::Object_ptr CIAO::Container_i::install_servant	(	PortableServer::Servant	objref,
		Container_Types::OA_Type	type,
		PortableServer::ObjectId_out	oid
	)		[virtual]

void CIAO::Container_i::passivate_component

(

Components::CCMObject_ptr

compref

)

[virtual]

Passivate a component.

void CIAO::Container_i::prepare_installation	(	const char *	entity,
		const char *	primary_artifact,
		const char *	entry_point,
		const char *	servant_artifact,
		const char *	servant_entrypoint,
		const char *	name,
		ACE_DLL &	executor_dll,
		ACE_DLL &	servant_dll
	)		[protected]

CORBA::Object_ptr CIAO::Container_i::resolve_service_reference

(

const char *

service_id

)

[virtual]

Reimplemented in CIAO::Extension_Container_i.

void CIAO::Container_i::set_attributes	(	CORBA::Object_ptr	compref,
		const ::Components::ConfigValues &	values
	)		[virtual]

CORBA::ORB_ptr CIAO::Container_i::the_ORB

(

void

)

const

Get a reference to the underlying ORB.

PortableServer::POA_ptr CIAO::Container_i::the_POA

(

void

)

[virtual]

Get component's POA.

PortableServer::POA_ptr CIAO::Container_i::the_port_POA

(

void

)

[virtual]

void CIAO::Container_i::uninstall	(	CORBA::Object_ptr	objref,
		Container_Types::OA_Type	t
	)		[protected]

Uninstall a servant for component or home.

void CIAO::Container_i::uninstall_component

(

Components::CCMObject_ptr

compref

)

[virtual]

Uninstall a given component.

void CIAO::Container_i::uninstall_home

(

Components::CCMHome_ptr

homeref

)

[virtual]

Uninstall a servant for component or home.

void CIAO::Container_i::uninstall_servant	(	PortableServer::Servant	objref,
		Container_Types::OA_Type	type,
		PortableServer::ObjectId_out	oid
	)		[virtual]

Uninstall a servant for component.

---

Member Data Documentation

PortableServer::POA_var CIAO::Container_i::component_poa_ [protected]

POA within which all the components in this container will be activated.

PortableServer::POA_var CIAO::Container_i::facet_cons_poa_ [protected]

POA within which all the facets and receptacles will be activated. Having two POA's allows us to associate different policies that are distinct from the component.

CORBA::ORB_var CIAO::Container_i::orb_ [protected]

Reference to the ORB.

PortableServer::POA_var CIAO::Container_i::root_poa_ [protected]

POA used as root.

---

The documentation for this class was generated from the following files:

• Container_Base_T.h
• Container_Base_T.cpp
