Primary interface for application message processing, as well as input and output message queueing. More...

#include <Task_Ex_T.h>

Inheritance diagram for ACE_Task_Ex:

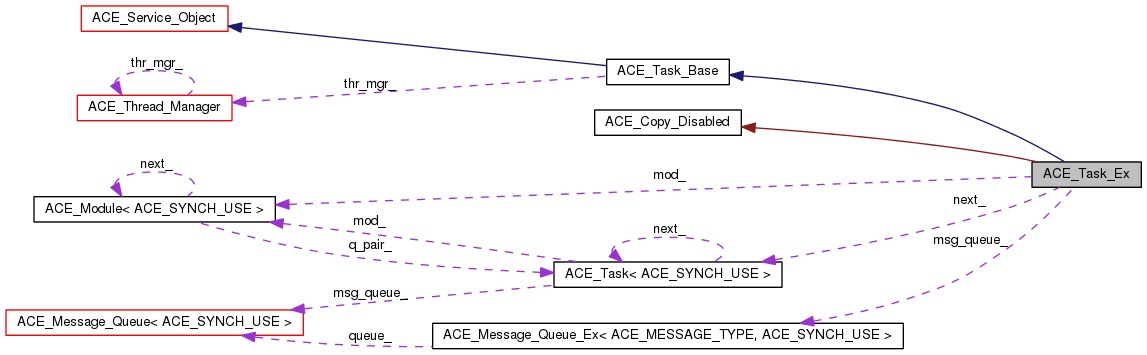

Collaboration diagram for ACE_Task_Ex:

Public Types
typedef ACE_Message_Queue_Ex < ACE_MESSAGE_TYPE, ACE_SYNCH_USE >	MESSAGE_QUEUE_EX
Public Member Functions
	ACE_Task_Ex (ACE_Thread_Manager thr_mgr=0, MESSAGE_QUEUE_EX mq=0)
virtual	~ACE_Task_Ex (void)
	Destructor.
MESSAGE_QUEUE_EX *	msg_queue (void)
	Gets the message queue associated with this task.
void	msg_queue (MESSAGE_QUEUE_EX *)
	Sets the message queue associated with this task.
int	putq (ACE_MESSAGE_TYPE , ACE_Time_Value timeout=0)
int	getq (ACE_MESSAGE_TYPE &mb, ACE_Time_Value timeout=0)
int	ungetq (ACE_MESSAGE_TYPE , ACE_Time_Value timeout=0)
int	reply (ACE_MESSAGE_TYPE , ACE_Time_Value timeout=0)
int	put_next (ACE_MESSAGE_TYPE msg, ACE_Time_Value timeout=0)
const ACE_TCHAR *	name (void) const
ACE_Task< ACE_SYNCH_USE > *	next (void)
	Get next Task pointer.
void	next (ACE_Task< ACE_SYNCH_USE > *)
	Set next Task pointer.
ACE_Task< ACE_SYNCH_USE > *	sibling (void)
	Alwasy return 0.
ACE_Module< ACE_SYNCH_USE > *	module (void) const
	Return the Task's Module if there is one, else returns 0.
int	flush (u_long flag=ACE_Task_Flags::ACE_FLUSHALL)
void	water_marks (ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds, size_t)
	Manipulate watermarks.
void	dump (void) const
	Dump the state of an object.
Public Attributes
MESSAGE_QUEUE_EX *	msg_queue_
	Queue of messages on the ACE_Task..
bool	delete_msg_queue_
	true if should delete Message_Queue, false otherwise.
ACE_Module< ACE_SYNCH_USE > *	mod_
	Back-pointer to the enclosing module.
ACE_Task< ACE_SYNCH_USE > *	next_
	Pointer to adjacent ACE_Task.
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Friends
class	ACE_Module< ACE_SYNCH_USE >
class	ACE_Module_Type

Detailed Description

Primary interface for application message processing, as well as input and output message queueing.

Unlike ACE_Task, these class doesn't have the ability to be a part of a Stream chain. I.e. You cannot (yet) chain modules based on ACE_Task_Ex.

Todo:: : We can merge ACE_Task and ACE_Task_Ex to be one class. something like that: template <ACE_SYNCH_DECL, ACE_MESSAGE_TYPE = ACE_Message_Block> class ACE_Task : public ACE_Task_Base { // use here the code from ACE_Task_Ex using ACE_Message_Queue_Ex };

Now specialized version of ACE_Task with ACE_Message_Block as its ACE_MESSAGE_TYPE...

template <ACE_SYNCH_DECL> class ACE_Task <ACE_SYNCH_USE, ACE_Message_Block> : public ACE_Task_Base { // put here the good old ACE_Task code };

When User (and legacy code) write ACE_Task<ACE_MT_SYNCH>, specialized ACE_Task code is in action.

Member Typedef Documentation

typedef ACE_Message_Queue_Ex<ACE_MESSAGE_TYPE, ACE_SYNCH_USE> ACE_Task_Ex::MESSAGE_QUEUE_EX

Constructor & Destructor Documentation

ACE_Task_Ex::ACE_Task_Ex	(	ACE_Thread_Manager *	thr_mgr = `0`,
		MESSAGE_QUEUE_EX *	mq = `0`
	)

Initialize a Task, supplying a thread manager and a message queue. If the user doesn't supply a ACE_Message_Queue pointer then we'll allocate one dynamically. Otherwise, we'll use the one passed as a parameter.

ACE_Task_Ex::~ACE_Task_Ex ( void ) [virtual]

Destructor.

Member Function Documentation

void ACE_Task_Ex::dump ( void ) const

Dump the state of an object.

int ACE_Task_Ex::flush ( u_long flag = ACE_Task_Flags::ACE_FLUSHALL ) [inline]

Flush the task's queue, i.e., free all of the enqueued message blocks and releases any threads blocked on the queue. Note that if this conflicts with the C++ iostream <flush> function, just rewrite the iostream function as ::<flush>.

int ACE_Task_Ex::getq	(	ACE_MESSAGE_TYPE *&	mb,
		ACE_Time_Value *	timeout = `0`
	)		`[inline]`

Extract the first message from the queue (blocking). Note that timeout uses <{absolute}> time rather than <{relative}> time. Returns number of items in queue if the call succeeds or -1 otherwise.

ACE_Module< ACE_SYNCH_USE > * ACE_Task_Ex::module ( void ) const

Return the Task's Module if there is one, else returns 0.

ACE_Message_Queue_Ex< ACE_MESSAGE_TYPE, ACE_SYNCH_USE > * ACE_Task_Ex::msg_queue ( void )

Gets the message queue associated with this task.

void ACE_Task_Ex::msg_queue ( MESSAGE_QUEUE_EX * mq ) [inline]

Sets the message queue associated with this task.

const ACE_TCHAR * ACE_Task_Ex::name ( void ) const

Return the name of the enclosing Module if there's one associated with the Task, else returns 0.

ACE_Task< ACE_SYNCH_USE > * ACE_Task_Ex::next ( void ) [inline]

Get next Task pointer.

void ACE_Task_Ex::next ( ACE_Task< ACE_SYNCH_USE > * q ) [inline]

Set next Task pointer.

int ACE_Task_Ex::put_next	(	ACE_MESSAGE_TYPE *	msg,
		ACE_Time_Value *	timeout = `0`
	)		`[inline]`

Transfer message to the adjacent ACE_Task_Ex in a ACE_Stream. Note that timeout uses <{absolute}> time rather than <{relative}> time.

int ACE_Task_Ex::putq	(	ACE_MESSAGE_TYPE *	mb,
		ACE_Time_Value *	timeout = `0`
	)		`[inline]`

Insert message into the message queue. Note that timeout uses <{absolute}> time rather than <{relative}> time.

int ACE_Task_Ex::reply	(	ACE_MESSAGE_TYPE *	mb,
		ACE_Time_Value *	timeout = `0`
	)		`[inline]`

Turn the message around and send it back down the Stream. Note that timeout uses <{absolute}> time rather than <{relative}> time.

ACE_Task< ACE_SYNCH_USE > * ACE_Task_Ex::sibling ( void )

Alwasy return 0.

Todo:: FIXME

Todo:: FIXME Need to impl ACE_Moudle to support ACE_Task as well. Now always return 0 for sibling

int ACE_Task_Ex::ungetq	(	ACE_MESSAGE_TYPE *	mb,
		ACE_Time_Value *	timeout = `0`
	)		`[inline]`

Return a message to the queue. Note that timeout uses <{absolute}> time rather than <{relative}> time.

void ACE_Task_Ex::water_marks	(	ACE_IO_Cntl_Msg::ACE_IO_Cntl_Cmds	cmd,
		size_t	wm_size
	)		`[inline]`

Manipulate watermarks.

Friends And Related Function Documentation

friend class ACE_Module< ACE_SYNCH_USE > [friend]

friend class ACE_Module_Type [friend]

Member Data Documentation

ACE_Task_Ex::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

bool ACE_Task_Ex::delete_msg_queue_

true if should delete Message_Queue, false otherwise.

ACE_Module<ACE_SYNCH_USE>* ACE_Task_Ex::mod_

Back-pointer to the enclosing module.

MESSAGE_QUEUE_EX* ACE_Task_Ex::msg_queue_

Queue of messages on the ACE_Task..

ACE_Task<ACE_SYNCH_USE>* ACE_Task_Ex::next_

Pointer to adjacent ACE_Task.

The documentation for this class was generated from the following files:
