ACE_SOCK_Dgram Class Reference

Defines the member functions for the ACE_SOCK datagram abstraction. More...

#include <SOCK_Dgram.h>

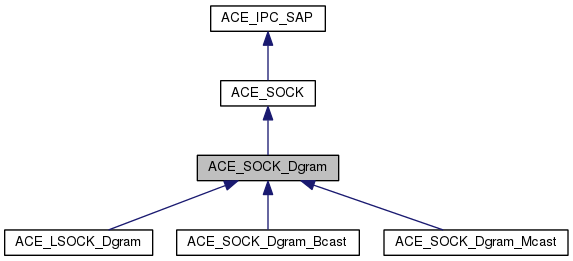

Inheritance diagram for ACE_SOCK_Dgram:

Collaboration diagram for ACE_SOCK_Dgram:

List of all members.

Public Types
typedef ACE_INET_Addr	PEER_ADDR
Public Member Functions
	ACE_SOCK_Dgram (void)
	Default constructor.
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
	ACE_SOCK_Dgram (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family=ACE_PROTOCOL_FAMILY_INET, int protocol=0, int reuse_addr=0)
int	open (const ACE_Addr &local, int protocol_family, int protocol, ACE_Protocol_Info *protocolinfo, ACE_SOCK_GROUP g=0, u_long flags=0, int reuse_addr=0)
	~ACE_SOCK_Dgram (void)
	Default dtor.
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags=0) const
	Send an n byte buf to the datagram socket (uses <sendto(3)>).
ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (iovec *io_vec, ACE_Addr &addr, int flags=0, const ACE_Time_Value *timeout=0) const
ssize_t	send (const iovec iov[], int n, const ACE_Addr &addr, int flags=0) const
ssize_t	recv (iovec iov[], int n, ACE_Addr &addr, int flags=0) const
ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags, const ACE_Time_Value *timeout) const
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags, const ACE_Time_Value *timeout) const
ssize_t	send (const iovec buffers[], int buffer_count, size_t &number_of_bytes_sent, int flags, const ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	recv (iovec buffers[], int buffer_count, size_t &number_of_bytes_recvd, int &flags, ACE_Addr &addr, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
ssize_t	send (const void *buf, size_t n, const ACE_Addr &addr, int flags, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
	Send an n byte buf to the datagram socket (uses <WSASendTo>).
ssize_t	recv (void *buf, size_t n, ACE_Addr &addr, int flags, ACE_OVERLAPPED *overlapped, ACE_OVERLAPPED_COMPLETION_FUNC func) const
void	dump (void) const
	Dump the state of an object.
int	set_nic (const ACE_TCHAR *net_if, int addr_family=AF_UNSPEC)
	Set NIC to use as multicast interface.
Public Attributes
	ACE_ALLOC_HOOK_DECLARE
	Declare the dynamic allocation hooks.
Protected Member Functions
int	shared_open (const ACE_Addr &local, int protocol_family)
	Open is shared by this and by <LSOCK_Dgram>.
int	make_multicast_ifaddr (ip_mreq *mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if)
int	make_multicast_ifaddr6 (ipv6_mreq *mreq, const ACE_INET_Addr &mcast_addr, const ACE_TCHAR *net_if)
Private Member Functions
int	get_remote_addr (ACE_Addr &) const
	Do not allow this function to percolate up to this interface...

---

Detailed Description

Defines the member functions for the ACE_SOCK datagram abstraction.

---

Member Typedef Documentation

typedef ACE_INET_Addr ACE_SOCK_Dgram::PEER_ADDR

---

Constructor & Destructor Documentation

ACE_SOCK_Dgram::ACE_SOCK_Dgram

(

void

)

[inline]

Default constructor.

ACE_SOCK_Dgram::ACE_SOCK_Dgram	(	const ACE_Addr &	local,
		int	protocol_family = ACE_PROTOCOL_FAMILY_INET,
		int	protocol = 0,
		int	reuse_addr = 0
	)

This is a BSD-style method (i.e., no QoS) for initiating a socket dgram that will accept datagrams at the <local> address.

ACE_SOCK_Dgram::ACE_SOCK_Dgram	(	const ACE_Addr &	local,
		int	protocol_family,
		int	protocol,
		ACE_Protocol_Info *	protocolinfo,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		int	reuse_addr = 0
	)

This is a QoS-enabed method for initiating a socket dgram that will accept datagrams at the <local> address. The qos_params are passed to <ACE_OS::join_leaf>.

ACE_SOCK_Dgram::~ACE_SOCK_Dgram

(

void

)

[inline]

Default dtor.

---

Member Function Documentation

void ACE_SOCK_Dgram::dump

(

void

)

const

Dump the state of an object.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_SOCK_Dgram_Mcast, ACE_SOCK_Dgram_Bcast, and ACE_LSOCK_Dgram.

int ACE_SOCK_Dgram::get_remote_addr

(

ACE_Addr &

)

const [private]

Do not allow this function to percolate up to this interface...

Reimplemented from ACE_SOCK.

Reimplemented in ACE_SOCK_Dgram_Bcast.

int ACE_SOCK_Dgram::make_multicast_ifaddr	(	ip_mreq *	mreq,
		const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if
	)		[protected]

Create a multicast addr/if pair, in format useful for system calls. If mreq param is NULL, just verify the passed addr/interface specs.

int ACE_SOCK_Dgram::make_multicast_ifaddr6	(	ipv6_mreq *	mreq,
		const ACE_INET_Addr &	mcast_addr,
		const ACE_TCHAR *	net_if
	)		[protected]

Create a multicast addr/if pair, in format useful for system calls. If mreq param is NULL, just verify the passed addr/interface specs.

int ACE_SOCK_Dgram::open	(	const ACE_Addr &	local,
		int	protocol_family = ACE_PROTOCOL_FAMILY_INET,
		int	protocol = 0,
		int	reuse_addr = 0
	)

This is a BSD-style method (i.e., no QoS) for initiating a socket dgram that will accept datagrams at the <local> address.

int ACE_SOCK_Dgram::open	(	const ACE_Addr &	local,
		int	protocol_family,
		int	protocol,
		ACE_Protocol_Info *	protocolinfo,
		ACE_SOCK_GROUP	g = 0,
		u_long	flags = 0,
		int	reuse_addr = 0
	)

This is a QoS-enabed method for initiating a socket dgram that will accept datagrams at the <local> address. The qos_params are passed to <ACE_OS::join_leaf>.

ssize_t ACE_SOCK_Dgram::recv	(	void *	buf,
		size_t	n,
		ACE_Addr &	addr,
		int	flags = 0
	)		const [inline]

Receive an n byte buf from the datagram socket (uses <recvfrom(3)>).

ssize_t ACE_SOCK_Dgram::recv	(	iovec *	io_vec,
		ACE_Addr &	addr,
		int	flags = 0,
		const ACE_Time_Value *	timeout = 0
	)		const

Allows a client to read from a socket without having to provide a buffer to read. This method determines how much data is in the socket, allocates a buffer of this size, reads in the data, and returns the number of bytes read. The caller is responsible for deleting the member in the <iov_base> field of <io_vec> using the ``delete []'' syntax.

ssize_t ACE_SOCK_Dgram::recv	(	iovec	iov[],
		int	n,
		ACE_Addr &	addr,
		int	flags = 0
	)		const

Recv an <iovec> of size n to the datagram socket (uses <recvmsg(3)>).

ssize_t ACE_SOCK_Dgram::recv	(	void *	buf,
		size_t	n,
		ACE_Addr &	addr,
		int	flags,
		const ACE_Time_Value *	timeout
	)		const

Wait up to timeout amount of time to receive a datagram into buf. The ACE_Time_Value indicates how long to blocking trying to receive. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses). If <recv> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes received is returned.

ssize_t ACE_SOCK_Dgram::recv	(	iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_recvd,
		int &	flags,
		ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const [inline]

Recv <buffer_count> worth of buffers from addr using overlapped I/O (uses <WSARecvFrom>). Returns 0 on success.

ssize_t ACE_SOCK_Dgram::recv	(	void *	buf,
		size_t	n,
		ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const [inline]

Receive an n byte buf from the datagram socket (uses <WSARecvFrom>).

ssize_t ACE_SOCK_Dgram::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags = 0
	)		const [inline]

Send an n byte buf to the datagram socket (uses <sendto(3)>).

Reimplemented in ACE_SOCK_Dgram_Bcast.

ssize_t ACE_SOCK_Dgram::send	(	const iovec	iov[],
		int	n,
		const ACE_Addr &	addr,
		int	flags = 0
	)		const

Send an <iovec> of size n to the datagram socket (uses <sendmsg(3)>).

Reimplemented in ACE_SOCK_Dgram_Bcast.

ssize_t ACE_SOCK_Dgram::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		const ACE_Time_Value *	timeout
	)		const

Wait up to timeout amount of time to send a datagram to buf. The ACE_Time_Value indicates how long to blocking trying to receive. If timeout == 0, the caller will block until action is possible, else will wait until the relative time specified in *timeout elapses). If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.

ssize_t ACE_SOCK_Dgram::send	(	const iovec	buffers[],
		int	buffer_count,
		size_t &	number_of_bytes_sent,
		int	flags,
		const ACE_Addr &	addr,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const [inline]

Send <buffer_count> worth of buffers to addr using overlapped I/O (uses <WSASendTo>). Returns 0 on success.

ssize_t ACE_SOCK_Dgram::send	(	const void *	buf,
		size_t	n,
		const ACE_Addr &	addr,
		int	flags,
		ACE_OVERLAPPED *	overlapped,
		ACE_OVERLAPPED_COMPLETION_FUNC	func
	)		const [inline]

Send an n byte buf to the datagram socket (uses <WSASendTo>).

int ACE_SOCK_Dgram::set_nic	(	const ACE_TCHAR *	net_if,
		int	addr_family = AF_UNSPEC
	)

Set NIC to use as multicast interface.

int ACE_SOCK_Dgram::shared_open	(	const ACE_Addr &	local,
		int	protocol_family
	)		[protected]

Open is shared by this and by <LSOCK_Dgram>.

---

Member Data Documentation

ACE_SOCK_Dgram::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_SOCK_Dgram_Mcast, ACE_SOCK_Dgram_Bcast, and ACE_LSOCK_Dgram.

---

The documentation for this class was generated from the following files:

• SOCK_Dgram.h
• SOCK_Dgram.cpp
• SOCK_Dgram.inl
