TAO_StreamEndPoint Class Reference

The Stream EndPoint. Used to implement one endpoint of a stream that implements the transport layer. More...

#include <AVStreams_i.h>

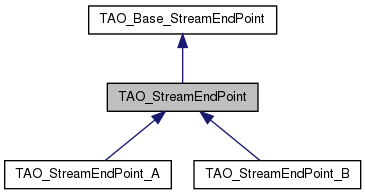

Inheritance diagram for TAO_StreamEndPoint:
Inheritance graph
[legend]
Collaboration diagram for TAO_StreamEndPoint:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_StreamEndPoint (void)
 Constructor.
virtual void stop (const AVStreams::flowSpec &the_spec)
 Stop the stream. Empty the_spec means, for all the flows.
virtual void start (const AVStreams::flowSpec &the_spec)
 Start the stream, Empty the_spec means, for all the flows.
virtual void destroy (const AVStreams::flowSpec &the_spec)
 Destroy the stream, Empty the_spec means, for all the flows.
virtual CORBA::Boolean connect (AVStreams::StreamEndPoint_ptr responder, AVStreams::streamQoS &qos_spec, const AVStreams::flowSpec &the_spec)
 Called by StreamCtrl. responder is the peer to connect to.
virtual CORBA::Boolean request_connection (AVStreams::StreamEndPoint_ptr initiator, CORBA::Boolean is_mcast, AVStreams::streamQoS &qos, AVStreams::flowSpec &the_spec)
virtual CORBA::Boolean modify_QoS (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_flows)
 Change the transport qos on a stream.
virtual int change_qos (AVStreams::streamQoS &new_qos, const AVStreams::flowSpec &the_flows)
virtual CORBA::Boolean set_protocol_restriction (const AVStreams::protocolSpec &the_pspec)
 Used to restrict the set of protocols.
virtual void disconnect (const AVStreams::flowSpec &the_spec)
 disconnect the flows
virtual void set_FPStatus (const AVStreams::flowSpec &the_spec, const char *fp_name, const CORBA::Any &fp_settings)
 Used to control the flow.
virtual CORBA::Object_ptr get_fep (const char *flow_name)
 Not implemented in the light profile, throws notsupported.
virtual char * add_fep (CORBA::Object_ptr the_fep)
 Not implemented in the light profile, throws notsupported.
virtual void remove_fep (const char *fep_name)
 Not implemented in the light profile, throws notsupported.
virtual void set_negotiator (AVStreams::Negotiator_ptr new_negotiator)
 Used to "attach" a negotiator to the endpoint.
virtual void set_key (const char *flow_name, const AVStreams::key &the_key)
 Used for public key encryption.
virtual void set_source_id (CORBA::Long source_id)
 Used to set a unique id for packets sent by this streamendpoint.
virtual ~TAO_StreamEndPoint (void)
 Destructor.
CORBA::Boolean multiconnect (AVStreams::streamQoS &the_qos, AVStreams::flowSpec &the_spec)

Protected Member Functions

char * add_fep_i (AVStreams::FlowEndPoint_ptr fep)
 Helper methods to implement add_fep()
char * add_fep_i_add_property (AVStreams::FlowEndPoint_ptr fep)
int translate_qos (const AVStreams::streamQoS &application_qos, AVStreams::streamQoS &network_qos)
 translate from application level to network level qos.

Protected Attributes

u_int flow_count_
u_int flow_num_
 current flow number used for system generation of flow names.
FlowEndPoint_Map fep_map_
 hash table for the flownames and its corresponding flowEndpoint reference.
AVStreams::flowSpec flows_
 sequence of supported flow names.
CORBA::Long source_id_
 source id used for multicast.
AVStreams::Negotiator_var negotiator_
 our local negotiator for QoS.
AVStreams::protocolSpec protocols_
 Our available list of protocols.
CORBA::String_var protocol_
 Chosen protocol for this streamendpoint based on availableprotocols property.
AVStreams::key key_
 Key used for encryption.
u_short mcast_port_
ACE_CString mcast_addr_
ACE_Hash_Map_Manager
< ACE_CString,
TAO_FlowSpec_Entry
*, ACE_Null_Mutex
mcast_entry_map_
TAO_AV_FlowSpecSet forward_flow_spec_set
TAO_AV_FlowSpecSet reverse_flow_spec_set
AVStreams::StreamEndPoint_var peer_sep_
AVStreams::SFPStatussfp_status_
AVStreams::StreamCtrl_var streamctrl_

Detailed Description

The Stream EndPoint. Used to implement one endpoint of a stream that implements the transport layer.


Constructor & Destructor Documentation

TAO_StreamEndPoint::TAO_StreamEndPoint ( void  )

Constructor.

TAO_StreamEndPoint::~TAO_StreamEndPoint ( void  ) [virtual]

Destructor.


Member Function Documentation

char * TAO_StreamEndPoint::add_fep ( CORBA::Object_ptr  the_fep) [virtual]

Not implemented in the light profile, throws notsupported.

char * TAO_StreamEndPoint::add_fep_i ( AVStreams::FlowEndPoint_ptr  fep) [protected]

Helper methods to implement add_fep()

char * TAO_StreamEndPoint::add_fep_i_add_property ( AVStreams::FlowEndPoint_ptr  fep) [protected]
int TAO_StreamEndPoint::change_qos ( AVStreams::streamQoS new_qos,
const AVStreams::flowSpec the_flows
) [virtual]
CORBA::Boolean TAO_StreamEndPoint::connect ( AVStreams::StreamEndPoint_ptr  responder,
AVStreams::streamQoS qos_spec,
const AVStreams::flowSpec the_spec
) [virtual]

Called by StreamCtrl. responder is the peer to connect to.

void TAO_StreamEndPoint::destroy ( const AVStreams::flowSpec the_spec) [virtual]

Destroy the stream, Empty the_spec means, for all the flows.

void TAO_StreamEndPoint::disconnect ( const AVStreams::flowSpec the_spec) [virtual]

disconnect the flows

CORBA::Object_ptr TAO_StreamEndPoint::get_fep ( const char *  flow_name) [virtual]

Not implemented in the light profile, throws notsupported.

CORBA::Boolean TAO_StreamEndPoint::modify_QoS ( AVStreams::streamQoS new_qos,
const AVStreams::flowSpec the_flows
) [virtual]

Change the transport qos on a stream.

CORBA::Boolean TAO_StreamEndPoint::multiconnect ( AVStreams::streamQoS the_qos,
AVStreams::flowSpec the_spec
)
void TAO_StreamEndPoint::remove_fep ( const char *  fep_name) [virtual]

Not implemented in the light profile, throws notsupported.

CORBA::Boolean TAO_StreamEndPoint::request_connection ( AVStreams::StreamEndPoint_ptr  initiator,
CORBA::Boolean  is_mcast,
AVStreams::streamQoS qos,
AVStreams::flowSpec the_spec
) [virtual]

Called by the peer StreamEndPoint. The flow_spec indicates the flows (which contain transport addresses etc.)

void TAO_StreamEndPoint::set_FPStatus ( const AVStreams::flowSpec the_spec,
const char *  fp_name,
const CORBA::Any &  fp_settings
) [virtual]

Used to control the flow.

void TAO_StreamEndPoint::set_key ( const char *  flow_name,
const AVStreams::key the_key
) [virtual]

Used for public key encryption.

void TAO_StreamEndPoint::set_negotiator ( AVStreams::Negotiator_ptr  new_negotiator) [virtual]

Used to "attach" a negotiator to the endpoint.

CORBA::Boolean TAO_StreamEndPoint::set_protocol_restriction ( const AVStreams::protocolSpec the_pspec) [virtual]

Used to restrict the set of protocols.

void TAO_StreamEndPoint::set_source_id ( CORBA::Long  source_id) [virtual]

Used to set a unique id for packets sent by this streamendpoint.

void TAO_StreamEndPoint::start ( const AVStreams::flowSpec the_spec) [virtual]

Start the stream, Empty the_spec means, for all the flows.

void TAO_StreamEndPoint::stop ( const AVStreams::flowSpec the_spec) [virtual]

Stop the stream. Empty the_spec means, for all the flows.

int TAO_StreamEndPoint::translate_qos ( const AVStreams::streamQoS application_qos,
AVStreams::streamQoS network_qos
) [protected]

translate from application level to network level qos.


Member Data Documentation

hash table for the flownames and its corresponding flowEndpoint reference.

Count of the number of flows in this streamendpoint, used to generate unique names for the flows.

u_int TAO_StreamEndPoint::flow_num_ [protected]

current flow number used for system generation of flow names.

sequence of supported flow names.

Key used for encryption.

u_short TAO_StreamEndPoint::mcast_port_ [protected]

TAO_Forward_FlowSpec_Entry forward_entries_ [FLOWSPEC_MAX]; TAO_Reverse_FlowSpec_Entry reverse_entries_ [FLOWSPEC_MAX];

AVStreams::Negotiator_var TAO_StreamEndPoint::negotiator_ [protected]

our local negotiator for QoS.

AVStreams::StreamEndPoint_var TAO_StreamEndPoint::peer_sep_ [protected]

Chosen protocol for this streamendpoint based on availableprotocols property.

Our available list of protocols.

source id used for multicast.

AVStreams::StreamCtrl_var TAO_StreamEndPoint::streamctrl_ [protected]

The documentation for this class was generated from the following files:
