Parameters that are specific to the ORB. These parameters can be for the client, the server, or for both. More...

#include <params.h>

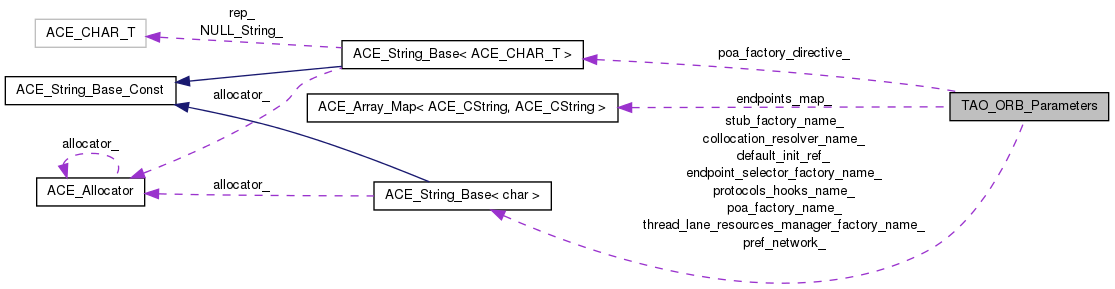

Collaboration diagram for TAO_ORB_Parameters:

Public Types
typedef ACE_Array_Map < ACE_CString, ACE_CString >	endpoints_map_type
Public Member Functions
	TAO_ORB_Parameters (void)
	Constructor.
int	add_endpoints (const ACE_CString &lane, const ACE_CString &endpoints)
void	get_endpoint_set (const ACE_CString &lane, TAO_EndpointSet &endpoint_set)
CORBA::UShort	service_port (TAO::MCAST_SERVICEID service_id) const
	Set/Get the port of services locatable through multicast.
void	service_port (TAO::MCAST_SERVICEID service_id, CORBA::UShort port)
const char *	mcast_discovery_endpoint (void) const
void	mcast_discovery_endpoint (const char *mde)
int	sock_rcvbuf_size (void) const
	Set/Get the size to be used for a socket's receive buffer.
void	sock_rcvbuf_size (int)
int	sock_sndbuf_size (void) const
	Set/Get the size to be used for a socket's send buffer.
void	sock_sndbuf_size (int)
int	nodelay (void) const
	Set/Get the status of whether to use TCP_NODELAY or not.
void	nodelay (int)
int	sock_keepalive (void)
	Set/Get whether we should set SO_KEEPALIVE on the socket or not.
void	sock_keepalive (int)
int	sock_dontroute (void)
	Set/Get whether we should set SO_DONTROUTE on the socket or not.
void	sock_dontroute (int)
int	ip_hoplimit (void)
	Set/Get the number of hops to be used for datagrams sent through socket.
void	ip_hoplimit (int)
bool	ip_multicastloop (void)
	Set/Get whether we should set IP_MULTICAST_LOOP on the socket or not.
void	ip_multicastloop (bool)
int	cdr_memcpy_tradeoff (void) const
void	cdr_memcpy_tradeoff (int)
int	use_dotted_decimal_addresses (void) const
void	use_dotted_decimal_addresses (int)
int	cache_incoming_by_dotted_decimal_address (void) const
void	cache_incoming_by_dotted_decimal_address (int)
int	linger (void) const
	The ORB will turn off SO_LINGER if this is zero.
void	linger (int)
time_t	accept_error_delay (void) const
void	accept_error_delay (time_t)
char *	default_init_ref (void) const
	Set/Get the Init Reference of an arbitrary ObjectID.
void	default_init_ref (const char *default_init_ref)
bool	std_profile_components (void) const
void	std_profile_components (bool x)
int	ace_sched_policy (void) const
	Scheduling policy.
void	ace_sched_policy (int x)
long	sched_policy (void) const
	Scheduling policy flag.
void	sched_policy (long x)
long	scope_policy (void) const
	Scheduling scope flag.
void	scope_policy (long x)
long	thread_creation_flags (void) const
	Thread creation flags.
int	single_read_optimization (void) const
	Single read optimization.
void	single_read_optimization (int x)
int	shared_profile (void) const
	Create shared profiles without priority.
void	shared_profile (int x)
bool	use_parallel_connects (void) const
void	use_parallel_connects (bool x)
unsigned long	parallel_connect_delay (void) const
void	parallel_connect_delay (unsigned long x)
bool	disable_rt_collocation_resolver (void) const
	Mutators and accessors for rt_collocation_resolver.
void	disable_rt_collocation_resolver (bool)
bool	preferred_interfaces (const char *s)
const char *	preferred_interfaces (void) const
void	enforce_pref_interfaces (bool p)
bool	enforce_pref_interfaces (void) const
void	negotiate_codesets (bool c)
bool	negotiate_codesets (void) const
void	ami_collication (bool opt)
bool	ami_collication (void) const
void	protocols_hooks_name (const char *s)
const char *	protocols_hooks_name (void) const
void	thread_lane_resources_manager_factory_name (const char *s)
const char *	thread_lane_resources_manager_factory_name (void) const
void	stub_factory_name (const char *s)
const char *	stub_factory_name (void) const
void	poa_factory_name (const char *s)
const char *	poa_factory_name (void) const
void	poa_factory_directive (const ACE_TCHAR *s)
const ACE_TCHAR *	poa_factory_directive (void) const
void	endpoint_selector_factory_name (const char *s)
const char *	endpoint_selector_factory_name (void) const
void	collocation_resolver_name (const char *s)
const char *	collocation_resolver_name (void) const
void	forward_invocation_on_object_not_exist (bool opt)
bool	forward_invocation_on_object_not_exist (void) const
void	forward_once_exception (const int)
int	forward_once_exception () const

ACE_CDR::ULong	max_message_size (void) const
void	max_message_size (ACE_CDR::ULong size)
Private Member Functions
int	parse_and_add_endpoints (const ACE_CString &endpoints, TAO_EndpointSet &endpoint_set)
Private Attributes
endpoints_map_type	endpoints_map_
	Map of endpoints this server is willing to accept requests on.
CORBA::UShort	service_port_ [TAO_NO_OF_MCAST_SERVICES]
	Port numbers of the configured services.
CORBA::String_var	mcast_discovery_endpoint_
ACE_CString	default_init_ref_
	List of comma separated prefixes from ORBDefaultInitRef.
int	sock_rcvbuf_size_
	Size to be used for a socket's receive buffer.
int	sock_sndbuf_size_
	Size to be used for a socket's send buffer.
int	nodelay_
	1 if we're using TCP_NODELAY and 0 otherwise.
int	sock_keepalive_
	1 if we're using SO_KEEPALIVE and 0 otherwise (default 0).
int	sock_dontroute_
	1 if we're using SO_DONTROUTE and 0 otherwise (default 0).
int	ip_hoplimit_
	Number of hops to be used for datagrams sent through socket.
bool	ip_multicastloop_
	1 if we're using IP_MULTICAST_LOOP and 0 otherwise.
int	cdr_memcpy_tradeoff_
ACE_CDR::ULong	max_message_size_
	Maximum GIOP message size to be sent over a given transport.
int	use_dotted_decimal_addresses_
	For selecting a address notation.
int	cache_incoming_by_dotted_decimal_address_
int	linger_
	For setting the SO_LINGER option.
time_t	accept_error_delay_
	For setting the accept retry delay.
bool	std_profile_components_
	If true then the standard OMG components are not generated.
int	ace_sched_policy_
	Scheduling policy.
long	sched_policy_
	Scheduling policy flag.
long	scope_policy_
	Scheduling scope flag.
int	single_read_optimization_
	Single read optimization.
int	shared_profile_
	Shared Profile - Use the same profile for multiple endpoints.
int	use_parallel_connects_
unsigned long	parallel_connect_delay_
ACE_CString	pref_network_
	Preferred network interfaces as a string.
bool	disable_rt_collocation_resolver_
	Default collocation resolver.
bool	enforce_preferred_interfaces_
bool	negotiate_codesets_
	Enable the use of codeset negotiation.
bool	ami_collication_
	Do we make collocated ami calls.
ACE_CString	protocols_hooks_name_
ACE_CString	stub_factory_name_
ACE_CString	endpoint_selector_factory_name_
ACE_CString	thread_lane_resources_manager_factory_name_
ACE_CString	poa_factory_name_
ACE_TString	poa_factory_directive_
bool	forward_invocation_on_object_not_exist_
int	forward_once_exception_
ACE_CString	collocation_resolver_name_

Detailed Description

Parameters that are specific to the ORB. These parameters can be for the client, the server, or for both.

Member Typedef Documentation

typedef ACE_Array_Map<ACE_CString, ACE_CString> TAO_ORB_Parameters::endpoints_map_type

Constructor & Destructor Documentation

TAO_ORB_Parameters::TAO_ORB_Parameters ( void )

Constructor.

Member Function Documentation

time_t TAO_ORB_Parameters::accept_error_delay ( void ) const

The amount of time desired by the user to wait to accept connections after a particular type of accept() error.

void TAO_ORB_Parameters::accept_error_delay ( time_t x )

int TAO_ORB_Parameters::ace_sched_policy ( void ) const

Scheduling policy.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by functions like ACE_OS::thr_setprio() and ACE_Sched_Params::priority_min(). Legal values are ACE_SCHED_RR, ACE_SCHED_FIFO, and ACE_SCHED_OTHER.

void TAO_ORB_Parameters::ace_sched_policy ( int x )

int TAO_ORB_Parameters::add_endpoints	(	const ACE_CString &	lane,
		const ACE_CString &	endpoints
	)

Specifies the endpoints on which this server is willing to listen for requests.

void TAO_ORB_Parameters::ami_collication ( bool opt )

bool TAO_ORB_Parameters::ami_collication ( void ) const

int TAO_ORB_Parameters::cache_incoming_by_dotted_decimal_address ( void ) const

The ORB will cache incoming connections against the dotted decimal form of the peer's address

void TAO_ORB_Parameters::cache_incoming_by_dotted_decimal_address ( int x )

int TAO_ORB_Parameters::cdr_memcpy_tradeoff ( void ) const

Octet sequences are marshalled without doing any copies, we simply append a block to the CDR message block chain. When the octet sequence is small enough and there is room in the current message block it is more efficient just to copy the buffer.

void TAO_ORB_Parameters::cdr_memcpy_tradeoff ( int x )

void TAO_ORB_Parameters::collocation_resolver_name ( const char * s )

const char * TAO_ORB_Parameters::collocation_resolver_name ( void ) const

char * TAO_ORB_Parameters::default_init_ref ( void ) const

Set/Get the Init Reference of an arbitrary ObjectID.

void TAO_ORB_Parameters::default_init_ref ( const char * default_init_ref )

bool TAO_ORB_Parameters::disable_rt_collocation_resolver ( void ) const

Mutators and accessors for rt_collocation_resolver.

void TAO_ORB_Parameters::disable_rt_collocation_resolver ( bool x )

const char * TAO_ORB_Parameters::endpoint_selector_factory_name ( void ) const

void TAO_ORB_Parameters::endpoint_selector_factory_name ( const char * s )

void TAO_ORB_Parameters::enforce_pref_interfaces ( bool p )

bool TAO_ORB_Parameters::enforce_pref_interfaces ( void ) const

void TAO_ORB_Parameters::forward_invocation_on_object_not_exist ( bool opt )

bool TAO_ORB_Parameters::forward_invocation_on_object_not_exist ( void ) const

void TAO_ORB_Parameters::forward_once_exception ( const int ef )

int TAO_ORB_Parameters::forward_once_exception ( void ) const

void TAO_ORB_Parameters::get_endpoint_set	(	const ACE_CString &	lane,
		TAO_EndpointSet &	endpoint_set
	)

int TAO_ORB_Parameters::ip_hoplimit ( void )

Set/Get the number of hops to be used for datagrams sent through socket.

void TAO_ORB_Parameters::ip_hoplimit ( int x )

void TAO_ORB_Parameters::ip_multicastloop ( bool x )

bool TAO_ORB_Parameters::ip_multicastloop ( void )

Set/Get whether we should set IP_MULTICAST_LOOP on the socket or not.

int TAO_ORB_Parameters::linger ( void ) const

The ORB will turn off SO_LINGER if this is zero.

void TAO_ORB_Parameters::linger ( int x )

ACE_CDR::ULong TAO_ORB_Parameters::max_message_size ( void ) const

Maximum size of a GIOP message before outgoing fragmentation kicks in.

void TAO_ORB_Parameters::max_message_size ( ACE_CDR::ULong size )

Maximum size of a GIOP message before outgoing fragmentation kicks in.

const char * TAO_ORB_Parameters::mcast_discovery_endpoint ( void ) const

Get/Set address:port for Multicast Discovery Protocol for the Naming Service.

void TAO_ORB_Parameters::mcast_discovery_endpoint ( const char * mde )

bool TAO_ORB_Parameters::negotiate_codesets ( void ) const

void TAO_ORB_Parameters::negotiate_codesets ( bool c )

int TAO_ORB_Parameters::nodelay ( void ) const

Set/Get the status of whether to use TCP_NODELAY or not.

void TAO_ORB_Parameters::nodelay ( int x )

unsigned long TAO_ORB_Parameters::parallel_connect_delay ( void ) const

The milliseconds delay used to stagger individual connection starts when using parallel connects.

void TAO_ORB_Parameters::parallel_connect_delay ( unsigned long x )

int TAO_ORB_Parameters::parse_and_add_endpoints	(	const ACE_CString &	endpoints,
		TAO_EndpointSet &	endpoint_set
	)		`[private]`

Each "endpoint" is of the form:

protocol://V.v,...,W.w/

or:

protocol://addr1,addr2,...,addrN/

where "V.v" and "W.w" are optional versions.

Multiple sets of endpoints may be separated by a semi-colon `;'. For example:

iiop://space:2001,odyssey:2010;uiop://foo,bar

All preconnect or endpoint strings should be of the above form(s).

void TAO_ORB_Parameters::poa_factory_directive ( const ACE_TCHAR * s )

const ACE_TCHAR * TAO_ORB_Parameters::poa_factory_directive ( void ) const

const char * TAO_ORB_Parameters::poa_factory_name ( void ) const

void TAO_ORB_Parameters::poa_factory_name ( const char * s )

const char * TAO_ORB_Parameters::preferred_interfaces ( void ) const

bool TAO_ORB_Parameters::preferred_interfaces ( const char * s )

Accepts the list of preferred interfaces and does a simple semantic check on the string

const char * TAO_ORB_Parameters::protocols_hooks_name ( void ) const

void TAO_ORB_Parameters::protocols_hooks_name ( const char * s )

void TAO_ORB_Parameters::sched_policy ( long x )

long TAO_ORB_Parameters::sched_policy ( void ) const

Scheduling policy flag.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCHED_RR, THR_SCHED_FIFO, and THR_SCHED_DEFAULT.

long TAO_ORB_Parameters::scope_policy ( void ) const

Scheduling scope flag.

Scheduling policy specified by the user through the -ORBScopePolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCOPE_SYSTEM and THR_SCOPE_PROCESS.

void TAO_ORB_Parameters::scope_policy ( long x )

void TAO_ORB_Parameters::service_port	(	TAO::MCAST_SERVICEID	service_id,
		CORBA::UShort	port
	)

CORBA::UShort TAO_ORB_Parameters::service_port ( TAO::MCAST_SERVICEID service_id ) const

Set/Get the port of services locatable through multicast.

int TAO_ORB_Parameters::shared_profile ( void ) const

Create shared profiles without priority.

void TAO_ORB_Parameters::shared_profile ( int x )

void TAO_ORB_Parameters::single_read_optimization ( int x )

int TAO_ORB_Parameters::single_read_optimization ( void ) const

Single read optimization.

void TAO_ORB_Parameters::sock_dontroute ( int x )

int TAO_ORB_Parameters::sock_dontroute ( void )

Set/Get whether we should set SO_DONTROUTE on the socket or not.

void TAO_ORB_Parameters::sock_keepalive ( int x )

int TAO_ORB_Parameters::sock_keepalive ( void )

Set/Get whether we should set SO_KEEPALIVE on the socket or not.

void TAO_ORB_Parameters::sock_rcvbuf_size ( int s )

int TAO_ORB_Parameters::sock_rcvbuf_size ( void ) const

Set/Get the size to be used for a socket's receive buffer.

void TAO_ORB_Parameters::sock_sndbuf_size ( int s )

int TAO_ORB_Parameters::sock_sndbuf_size ( void ) const

Set/Get the size to be used for a socket's send buffer.

bool TAO_ORB_Parameters::std_profile_components ( void ) const

Disable the OMG standard profile components, useful for homogenous environments.

void TAO_ORB_Parameters::std_profile_components ( bool x )

void TAO_ORB_Parameters::stub_factory_name ( const char * s )

const char * TAO_ORB_Parameters::stub_factory_name ( void ) const

long TAO_ORB_Parameters::thread_creation_flags ( void ) const

Thread creation flags.

Shorthand for OR'ing together the scope_policy and sched_policy.

void TAO_ORB_Parameters::thread_lane_resources_manager_factory_name ( const char * s )

const char * TAO_ORB_Parameters::thread_lane_resources_manager_factory_name ( void ) const

void TAO_ORB_Parameters::use_dotted_decimal_addresses ( int x )

int TAO_ORB_Parameters::use_dotted_decimal_addresses ( void ) const

The ORB will use the dotted decimal notation for addresses. By default we use the full ascii names.

bool TAO_ORB_Parameters::use_parallel_connects ( void ) const

Want to use parallel connection attempts when profiles have multiple endpoints.

void TAO_ORB_Parameters::use_parallel_connects ( bool x )

Member Data Documentation

time_t TAO_ORB_Parameters::accept_error_delay_ [private]

For setting the accept retry delay.

int TAO_ORB_Parameters::ace_sched_policy_ [private]

Scheduling policy.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by functions like ACE_OS::thr_setprio() and ACE_Sched_Params::priority_min(). Legal values are ACE_SCHED_RR, ACE_SCHED_FIFO, and ACE_SCHED_OTHER.

bool TAO_ORB_Parameters::ami_collication_ [private]

Do we make collocated ami calls.

int TAO_ORB_Parameters::cache_incoming_by_dotted_decimal_address_ [private]

If incoming connections should be cached against IP (true) or hostname (false).

int TAO_ORB_Parameters::cdr_memcpy_tradeoff_ [private]

Control the strategy for copying vs. appending octet sequences in CDR streams.

ACE_CString TAO_ORB_Parameters::collocation_resolver_name_ [private]

Name of the collocation resolver that needs to be instantiated. The default value is "Default_Collocation_Resolver". If TAO_RTCORBA is linked, the set_collocation_resolver will be called to set the value to be "RT_Collocation_Resolver".

ACE_CString TAO_ORB_Parameters::default_init_ref_ [private]

List of comma separated prefixes from ORBDefaultInitRef.

bool TAO_ORB_Parameters::disable_rt_collocation_resolver_ [private]

Default collocation resolver.

The vanilla ORB has only one collocation resolver. But if the RTORB is in place, the RTORB can get in a new collocation resolver. There are some applications that would like to use the default collocation resolver with the RTORB. This boolean is the value of the option that the application passes in to enable/disable the use of RT collocation resolver with the RTORB. The default value is false to indicate that the RT_Collocation_Resolver will be loaded if the RTORB is used.

ACE_CString TAO_ORB_Parameters::endpoint_selector_factory_name_ [private]

Name of the endpoint selector factory that needs to be instantiated. The default value is "Default_Endpoint_Selector_Factory". If TAO_RTCORBA is linked, the set_endpoint_selector_factory will be called to set the value to be "RT_Endpoint_Selector_Factory".

endpoints_map_type TAO_ORB_Parameters::endpoints_map_ [private]

Map of endpoints this server is willing to accept requests on.

bool TAO_ORB_Parameters::enforce_preferred_interfaces_ [private]

bool TAO_ORB_Parameters::forward_invocation_on_object_not_exist_ [private]

Do we need forward invocation to next avaiable profile upon OBJECT_NOT_EXIST exception?

int TAO_ORB_Parameters::forward_once_exception_ [private]

The exceptions upon which the requests will be forwarded once.

int TAO_ORB_Parameters::ip_hoplimit_ [private]

Number of hops to be used for datagrams sent through socket.

bool TAO_ORB_Parameters::ip_multicastloop_ [private]

1 if we're using IP_MULTICAST_LOOP and 0 otherwise.

int TAO_ORB_Parameters::linger_ [private]

For setting the SO_LINGER option.

ACE_CDR::ULong TAO_ORB_Parameters::max_message_size_ [private]

Maximum GIOP message size to be sent over a given transport.

Setting a maximum message size will cause outgoing GIOP fragmentation to be enabled.

CORBA::String_var TAO_ORB_Parameters::mcast_discovery_endpoint_ [private]

Address:port for Multicast Discovery Protocol for the Naming Service.

bool TAO_ORB_Parameters::negotiate_codesets_ [private]

Enable the use of codeset negotiation.

int TAO_ORB_Parameters::nodelay_ [private]

1 if we're using TCP_NODELAY and 0 otherwise.

unsigned long TAO_ORB_Parameters::parallel_connect_delay_ [private]

When using parallel connects, this delay is used to stagger connection attempts. This gives a trade-off between opening more potential connections than necessary vs increasing the potential time before a good connection is discovered. Time is expressed in milliseconds.

ACE_TString TAO_ORB_Parameters::poa_factory_directive_ [private]

The service configurator directive used to load poa_factory_name_ dynamically.

ACE_CString TAO_ORB_Parameters::poa_factory_name_ [private]

Name of the service object used to create the RootPOA. The default value is "TAO_POA". If TAO_RTCORBA is loaded, this will be changed to TAO_RT_POA so that a POA equipped with realtime extensions will be returned.

ACE_CString TAO_ORB_Parameters::pref_network_ [private]

Preferred network interfaces as a string.

ACE_CString TAO_ORB_Parameters::protocols_hooks_name_ [private]

Name of the protocols_hooks that needs to be instantiated. The default value is "Protocols_Hooks". If RTCORBA option is set, its value will be set to be "RT_Protocols_Hooks".

long TAO_ORB_Parameters::sched_policy_ [private]

Scheduling policy flag.

Scheduling policy specified by the user through the -ORBSchedPolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCHED_RR, THR_SCHED_FIFO, and THR_SCHED_DEFAULT.

long TAO_ORB_Parameters::scope_policy_ [private]

Scheduling scope flag.

Scheduling policy specified by the user through the -ORBScopePolicy option. This value is typically used by ACE thread creation functions. Legal values are THR_SCOPE_SYSTEM and THR_SCOPE_PROCESS.

CORBA::UShort TAO_ORB_Parameters::service_port_[TAO_NO_OF_MCAST_SERVICES] [private]

Port numbers of the configured services.

int TAO_ORB_Parameters::shared_profile_ [private]

Shared Profile - Use the same profile for multiple endpoints.

int TAO_ORB_Parameters::single_read_optimization_ [private]

Single read optimization.

int TAO_ORB_Parameters::sock_dontroute_ [private]

1 if we're using SO_DONTROUTE and 0 otherwise (default 0).

int TAO_ORB_Parameters::sock_keepalive_ [private]

1 if we're using SO_KEEPALIVE and 0 otherwise (default 0).

int TAO_ORB_Parameters::sock_rcvbuf_size_ [private]

Size to be used for a socket's receive buffer.

int TAO_ORB_Parameters::sock_sndbuf_size_ [private]

Size to be used for a socket's send buffer.

bool TAO_ORB_Parameters::std_profile_components_ [private]

If true then the standard OMG components are not generated.

ACE_CString TAO_ORB_Parameters::stub_factory_name_ [private]

Name of the stub factory that needs to be instantiated. The default value is "Default_Stub_Factory". If TAO_RTCORBA is linked, the set_stub_factory will be called to set the value to be "RT_Stub_Factory".

ACE_CString TAO_ORB_Parameters::thread_lane_resources_manager_factory_name_ [private]

Name of the thread lane resources manager that needs to be instantiated. The default value is "Default_Thread_Lane_Resources_Manager_Factory". If TAO_RTCORBA is linked, the set_thread_lane_resources_manager will be called to set the value to be "RT_Thread_Lane_Resources_Manager_Factory".

int TAO_ORB_Parameters::use_dotted_decimal_addresses_ [private]

For selecting a address notation.

int TAO_ORB_Parameters::use_parallel_connects_ [private]

Use Parallel Connects - Try to connect to all endpoints in a shared profile at once, use the first to complete.

The documentation for this class was generated from the following files:

Public Types

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
