Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler * and other information. More...

#include <WFMO_Reactor.h>

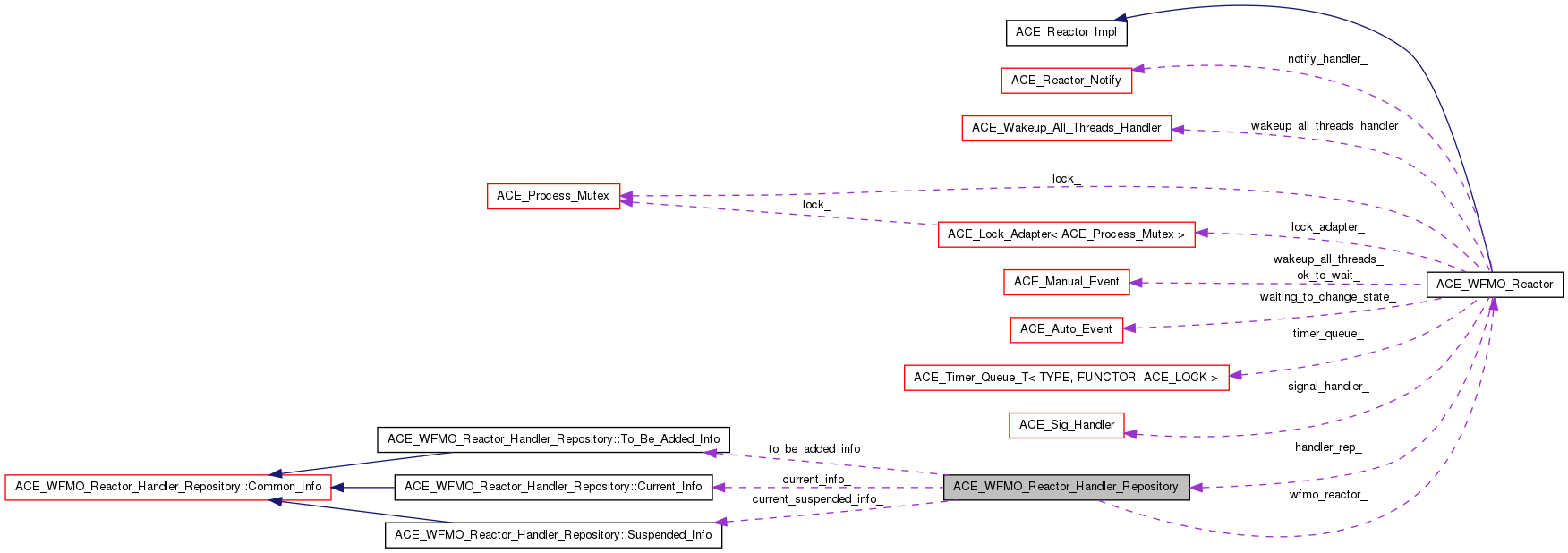

Collaboration diagram for ACE_WFMO_Reactor_Handler_Repository:

Classes
class	Common_Info
	This struct contains the necessary information for every Event_Handler entry. The reason the event is not in this structure is because we need to pass an event array into WaitForMultipleObjects and therefore keeping the events seperate makes sense. More...
class	Current_Info
	This structure inherits from the common structure to add information for current entries. More...
class	Suspended_Info
	This structure inherits from the common structure to add information for suspended entries. More...
class	To_Be_Added_Info
	This structure inherits from the common structure to add information for <to_be_added> entries. More...
Public Member Functions
	ACE_WFMO_Reactor_Handler_Repository (ACE_WFMO_Reactor &wfmo_reactor)
	Constructor.
virtual	~ACE_WFMO_Reactor_Handler_Repository (void)
	Destructor.
int	open (size_t size)
	Initialize the repository of the appropriate size.
int	close (void)
	Close down the handler repository.
int	bind (ACE_HANDLE, ACE_Event_Handler *)
int	bind_i (bool io_entry, ACE_Event_Handler *event_handler, long network_events, ACE_HANDLE io_handle, ACE_HANDLE event_handle, bool delete_event)
int	unbind (ACE_HANDLE, ACE_Reactor_Mask mask)
	Remove the binding of ACE_HANDLE in accordance with the mask.
int	unbind_i (ACE_HANDLE, ACE_Reactor_Mask mask, bool &changes_required)
	Non-lock-grabbing version of <unbind>
void	unbind_all (void)
	Remove all bindings of <ACE_HANDLE, ACE_Event_Handler> tuples.
int	invalid_handle (ACE_HANDLE handle) const
DWORD	max_handlep1 (void) const
	Maximum ACE_HANDLE value, plus 1.
ACE_HANDLE *	handles (void) const
Current_Info *	current_info (void) const
virtual bool	changes_required (void)
	Check if changes to the handle set are required.
virtual int	make_changes (void)
	Make changes to the handle set.
int	scheduled_for_deletion (size_t slot) const
	Check to see if slot has been scheduled for deletion.
int	modify_network_events_i (ACE_HANDLE io_handle, ACE_Reactor_Mask new_masks, ACE_Reactor_Mask &old_masks, long &new_network_events, ACE_HANDLE &event_handle, bool &delete_event, int operation)
ACE_Reactor_Mask	bit_ops (long &existing_masks, ACE_Reactor_Mask to_be_removed_masks, int operation)
int	suspend_handler_i (ACE_HANDLE handle, bool &changes_required)
	Temporarily suspend entry.
int	resume_handler_i (ACE_HANDLE handle, bool &changes_required)
	Resume suspended entry.
int	make_changes_in_current_infos (void)
	Deletions and suspensions in current_info_.
int	make_changes_in_suspension_infos (void)
	Deletions and resumptions in current_suspended_info_.
int	make_changes_in_to_be_added_infos (void)
int	remove_handler_i (size_t slot, ACE_Reactor_Mask mask)
	Removes the ACE_Event_Handler at slot from the table.
int	remove_suspended_handler_i (size_t slot, ACE_Reactor_Mask mask)
	Removes the ACE_Event_Handler at slot from the table.
int	remove_to_be_added_handler_i (size_t slot, ACE_Reactor_Mask to_be_removed_masks)
	Removes the ACE_Event_Handler at slot from the table.
ACE_Event_Handler *	find_handler (ACE_HANDLE handle)
int	handler (ACE_HANDLE handle, ACE_Reactor_Mask mask, ACE_Event_Handler **event_handler=0)
ACE_Event_Handler *	handler (ACE_HANDLE handle, long &existing_masks)
void	dump (void) const
	Dump the state of an object.
Protected Attributes
ACE_WFMO_Reactor &	wfmo_reactor_
	Reference to our <WFMO_Reactor>.
size_t	max_size_
	Maximum number of handles.
ACE_HANDLE *	current_handles_
Current_Info *	current_info_
	Array of current entries in the table.
DWORD	max_handlep1_
	A count of the number of active handles.
To_Be_Added_Info *	to_be_added_info_
	Information for entries to be added.
size_t	handles_to_be_added_
	Number of records to be added.
Suspended_Info *	current_suspended_info_
	Currently suspended handles.
size_t	suspended_handles_
	Number of currently suspended handles.
size_t	handles_to_be_suspended_
	Number of records to be suspended.
size_t	handles_to_be_resumed_
	Number of records to be resumed.
size_t	handles_to_be_deleted_
	Number of records to be deleted.
Friends
class	ACE_WFMO_Reactor
class	ACE_WFMO_Reactor_Test

Detailed Description

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler * and other information.

This class is for internal ACE use only.

Constructor & Destructor Documentation

ACE_WFMO_Reactor_Handler_Repository::ACE_WFMO_Reactor_Handler_Repository ( ACE_WFMO_Reactor & wfmo_reactor )

Constructor.

ACE_WFMO_Reactor_Handler_Repository::~ACE_WFMO_Reactor_Handler_Repository ( void ) [virtual]

Destructor.

Member Function Documentation

int ACE_WFMO_Reactor_Handler_Repository::bind	(	ACE_HANDLE	,
		ACE_Event_Handler *
	)

Bind the <ACE_Event_Handler *> to the ACE_HANDLE. This is for the simple event entry.

int ACE_WFMO_Reactor_Handler_Repository::bind_i	(	bool	io_entry,
		ACE_Event_Handler *	event_handler,
		long	network_events,
		ACE_HANDLE	io_handle,
		ACE_HANDLE	event_handle,
		bool	delete_event
	)

Insert I/O Event_Handler entry into the system. This method assumes that the lock are head *before* this method is invoked.

ACE_Reactor_Mask ACE_WFMO_Reactor_Handler_Repository::bit_ops	(	long &	existing_masks,
		ACE_Reactor_Mask	to_be_removed_masks,
		int	operation
	)

This method is used to change the network mask left (if any) after a remove request to <WFMO_Reactor>

bool ACE_WFMO_Reactor_Handler_Repository::changes_required ( void ) [inline, virtual]

Check if changes to the handle set are required.

int ACE_WFMO_Reactor_Handler_Repository::close ( void ) [inline]

Close down the handler repository.

ACE_WFMO_Reactor_Handler_Repository::Current_Info * ACE_WFMO_Reactor_Handler_Repository::current_info ( void ) const [inline]

Pointer to the beginning of the current array of ACE_Event_Handler *'s.

void ACE_WFMO_Reactor_Handler_Repository::dump ( void ) const

Dump the state of an object.

ACE_Event_Handler * ACE_WFMO_Reactor_Handler_Repository::find_handler ( ACE_HANDLE handle )

Return the Event_Handler associated with handle. Return 0 if handle is not registered.

ACE_Event_Handler * ACE_WFMO_Reactor_Handler_Repository::handler	(	ACE_HANDLE	handle,
		long &	existing_masks
	)

Check to see if handle is associated with a valid Event_Handler. Return Event_Handler and associated masks.

int ACE_WFMO_Reactor_Handler_Repository::handler	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask,
		ACE_Event_Handler **	event_handler = `0`
	)

Check to see if handle is associated with a valid Event_Handler bound to mask. Return the event_handler associated with this handler if event_handler != 0.

ACE_HANDLE * ACE_WFMO_Reactor_Handler_Repository::handles ( void ) const [inline]

Pointer to the beginning of the current array of ACE_HANDLE 's.

int ACE_WFMO_Reactor_Handler_Repository::invalid_handle ( ACE_HANDLE handle ) const [inline]

int ACE_WFMO_Reactor_Handler_Repository::make_changes ( void ) [inline, virtual]

Make changes to the handle set.

int ACE_WFMO_Reactor_Handler_Repository::make_changes_in_current_infos ( void )

Deletions and suspensions in current_info_.

int ACE_WFMO_Reactor_Handler_Repository::make_changes_in_suspension_infos ( void )

Deletions and resumptions in current_suspended_info_.

int ACE_WFMO_Reactor_Handler_Repository::make_changes_in_to_be_added_infos ( void )

Deletions in to_be_added_info_, or transfers to current_info_ or current_suspended_info_ from to_be_added_info_

DWORD ACE_WFMO_Reactor_Handler_Repository::max_handlep1 ( void ) const [inline]

Maximum ACE_HANDLE value, plus 1.

int ACE_WFMO_Reactor_Handler_Repository::modify_network_events_i	(	ACE_HANDLE	io_handle,
		ACE_Reactor_Mask	new_masks,
		ACE_Reactor_Mask &	old_masks,
		long &	new_network_events,
		ACE_HANDLE &	event_handle,
		bool &	delete_event,
		int	operation
	)

This method is used to calculate the network mask after a mask_op request to <WFMO_Reactor>. Note that because the Event_Handler may already be in the handler repository, we may have to find the old event and the old network events

int ACE_WFMO_Reactor_Handler_Repository::open ( size_t size )

Initialize the repository of the appropriate size.

int ACE_WFMO_Reactor_Handler_Repository::remove_handler_i	(	size_t	slot,
		ACE_Reactor_Mask	mask
	)

Removes the ACE_Event_Handler at slot from the table.

int ACE_WFMO_Reactor_Handler_Repository::remove_suspended_handler_i	(	size_t	slot,
		ACE_Reactor_Mask	mask
	)

Removes the ACE_Event_Handler at slot from the table.

int ACE_WFMO_Reactor_Handler_Repository::remove_to_be_added_handler_i	(	size_t	slot,
		ACE_Reactor_Mask	to_be_removed_masks
	)

Removes the ACE_Event_Handler at slot from the table.

int ACE_WFMO_Reactor_Handler_Repository::resume_handler_i	(	ACE_HANDLE	handle,
		bool &	changes_required
	)

Resume suspended entry.

int ACE_WFMO_Reactor_Handler_Repository::scheduled_for_deletion ( size_t slot ) const [inline]

Check to see if slot has been scheduled for deletion.

int ACE_WFMO_Reactor_Handler_Repository::suspend_handler_i	(	ACE_HANDLE	handle,
		bool &	changes_required
	)

Temporarily suspend entry.

int ACE_WFMO_Reactor_Handler_Repository::unbind	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask
	)		`[inline]`

Remove the binding of ACE_HANDLE in accordance with the mask.

void ACE_WFMO_Reactor_Handler_Repository::unbind_all ( void )

Remove all bindings of <ACE_HANDLE, ACE_Event_Handler> tuples.

int ACE_WFMO_Reactor_Handler_Repository::unbind_i	(	ACE_HANDLE	handle,
		ACE_Reactor_Mask	mask,
		bool &	changes_required
	)

Non-lock-grabbing version of <unbind>

Friends And Related Function Documentation

friend class ACE_WFMO_Reactor [friend]

friend class ACE_WFMO_Reactor_Test [friend]

Member Data Documentation

ACE_HANDLE* ACE_WFMO_Reactor_Handler_Repository::current_handles_ [protected]

Array of <ACE_HANDLEs> passed to <WaitForMultipleObjects>. This is not part of the structure as the handle array needs to be passed directly to <WaitForMultipleObjects>.

Current_Info* ACE_WFMO_Reactor_Handler_Repository::current_info_ [protected]

Array of current entries in the table.

Suspended_Info* ACE_WFMO_Reactor_Handler_Repository::current_suspended_info_ [protected]

Currently suspended handles.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_added_ [protected]

Number of records to be added.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_deleted_ [protected]

Number of records to be deleted.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_resumed_ [protected]

Number of records to be resumed.

size_t ACE_WFMO_Reactor_Handler_Repository::handles_to_be_suspended_ [protected]

Number of records to be suspended.
