TAO_IIOP_Profile Class Reference

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network. More...

#include <IIOP_Profile.h>

Inheritance diagram for TAO_IIOP_Profile:
Inheritance graph
[legend]

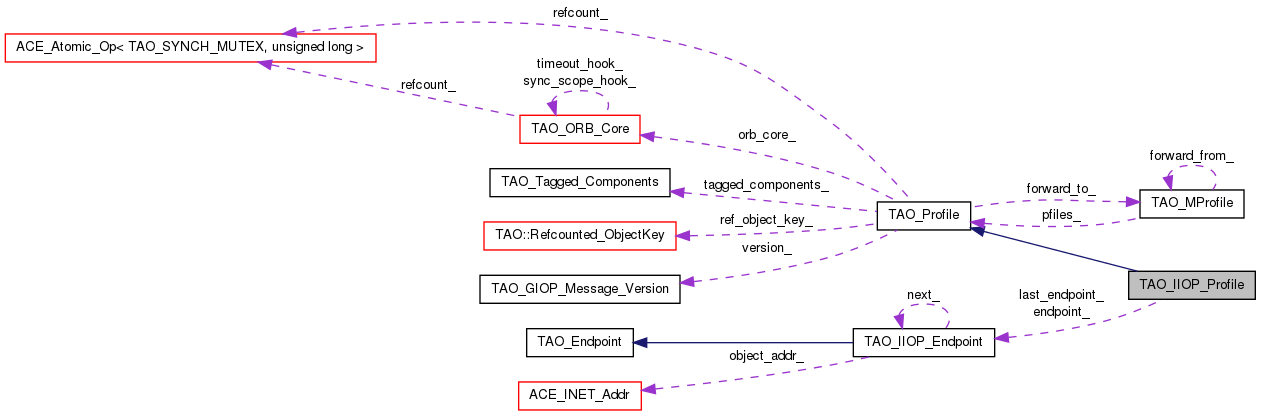

Collaboration diagram for TAO_IIOP_Profile:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_IIOP_Profile (const ACE_INET_Addr &addr, const TAO::ObjectKey &object_key, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)
 TAO_IIOP_Profile (const char *host, CORBA::UShort port, const TAO::ObjectKey &object_key, const ACE_INET_Addr &addr, const TAO_GIOP_Message_Version &version, TAO_ORB_Core *orb_core)
 TAO_IIOP_Profile (TAO_ORB_Core *orb_core)
 Profile constructor, default.
void add_endpoint (TAO_IIOP_Endpoint *endp)
void remove_endpoint (TAO_IIOP_Endpoint *endp)
virtual void remove_generic_endpoint (TAO_Endpoint *ep)
virtual void add_generic_endpoint (TAO_Endpoint *ep)
 Add an endpoint when the specific endpoint type is unknown.
virtual char object_key_delimiter (void) const
 The object key delimiter that IIOP uses or expects.
virtual char * to_string (void)
 Template methods. Please see Profile.h for documentation.
virtual int encode_endpoints (void)
virtual int encode_alternate_endpoints (void)
virtual TAO_Endpointendpoint (void)
virtual TAO_Endpointbase_endpoint (void)
virtual CORBA::ULong endpoint_count (void) const
 Return how many endpoints this profile contains.
virtual CORBA::ULong hash (CORBA::ULong max)
 Return a hash value for this object.

Static Public Member Functions

static const char * prefix (void)
 Return the char string prefix.

Static Public Attributes

static const char object_key_delimiter_ = '/'

Protected Member Functions

 ~TAO_IIOP_Profile (void)
 Destructor is to be called only through <_decr_refcnt>.
int encode_endpoints_for_rt (void)
virtual int decode_profile (TAO_InputCDR &cdr)
 Template methods. Please see Profile.h for the documentation.
virtual int decode_endpoints (void)
virtual void parse_string_i (const char *string)
 Protocol specific implementation of parse_string ()
virtual void create_profile_body (TAO_OutputCDR &cdr) const
 Creates an encapsulation of the ProfileBody struct in the cdr.
virtual CORBA::Boolean do_is_equivalent (const TAO_Profile *other_profile)
 Profile equivalence template method invoked on subclasses.

Protected Attributes

TAO_IIOP_Endpoint endpoint_
TAO_IIOP_Endpointlast_endpoint_
 For efficient insertion at the end of the list.
CORBA::ULong count_
 Number of endpoints in the list headed by <endpoint_>.

Detailed Description

This class defines the protocol specific attributes required for locating ORBs over a TCP/IP network.

This class defines the IIOP profile as specified in the CORBA specification.


Constructor & Destructor Documentation

TAO_IIOP_Profile::TAO_IIOP_Profile ( const ACE_INET_Addr addr,
const TAO::ObjectKey &  object_key,
const TAO_GIOP_Message_Version version,
TAO_ORB_Core orb_core
)

Profile constructor, same as above except the object_key has already been marshaled.

TAO_IIOP_Profile::TAO_IIOP_Profile ( const char *  host,
CORBA::UShort  port,
const TAO::ObjectKey &  object_key,
const ACE_INET_Addr addr,
const TAO_GIOP_Message_Version version,
TAO_ORB_Core orb_core
)

Profile constructor, this is the most efficient since it doesn't require any address resolution processing.

TAO_IIOP_Profile::TAO_IIOP_Profile ( TAO_ORB_Core orb_core)

Profile constructor, default.

TAO_IIOP_Profile::~TAO_IIOP_Profile ( void  ) [protected]

Destructor is to be called only through <_decr_refcnt>.


Member Function Documentation

void TAO_IIOP_Profile::add_endpoint ( TAO_IIOP_Endpoint endp)

Add endp to this profile's list of endpoints (it is inserted at the end of the list). This profiles takes ownership of endp.

void TAO_IIOP_Profile::add_generic_endpoint ( TAO_Endpoint ep) [virtual]

Add an endpoint when the specific endpoint type is unknown.

Reimplemented from TAO_Profile.

TAO_Endpoint * TAO_IIOP_Profile::base_endpoint ( void  ) [virtual]

Since SSLIOP_Profile derives from IIOP_Profile, but SSLIOP_Endpoint does not derive from IIOP_Endpoint, it is necessary to have a way of always getting the IIOP_Endpoint using a generic interface regardless of the final type of the profile.

Reimplemented from TAO_Profile.

void TAO_IIOP_Profile::create_profile_body ( TAO_OutputCDR cdr) const [protected, virtual]

Creates an encapsulation of the ProfileBody struct in the cdr.

Implements TAO_Profile.

int TAO_IIOP_Profile::decode_endpoints ( void  ) [protected, virtual]

Helper for decode(). Decodes endpoints from a tagged component. Decode only if RTCORBA is enabled. Furthermore, we may not find TAO_TAG_ENDPOINTS component, e.g., if we are talking to nonRT version of TAO or some other ORB. This is not an error, and we must proceed. Return 0 on success and -1 on failure.

Implements TAO_Profile.

int TAO_IIOP_Profile::decode_profile ( TAO_InputCDR cdr) [protected, virtual]

Template methods. Please see Profile.h for the documentation.

Implements TAO_Profile.

CORBA::Boolean TAO_IIOP_Profile::do_is_equivalent ( const TAO_Profile other) [protected, virtual]

Profile equivalence template method invoked on subclasses.

TAO_Profile subclasses must implement this template method so that they can apply their own definition of profile equivalence.

Implements TAO_Profile.

int TAO_IIOP_Profile::encode_alternate_endpoints ( void  ) [virtual]

Encode alternate endpoints for non-RT profiles, using multiple TAG_ALTERNATE_IIOP_ADDRESS components, one endpoint per component

Reimplemented from TAO_Profile.

int TAO_IIOP_Profile::encode_endpoints ( void  ) [virtual]

Encode endpoints for RT profiles, using a single TAO_TAG_ENDPOINT component.

Implements TAO_Profile.

int TAO_IIOP_Profile::encode_endpoints_for_rt ( void  ) [protected]

Helper method for encode_endpoints to deal with RT requests.

Encodes this profile's endpoints into a tagged component. This is done only if RTCORBA is enabled, since currently this is the only case when we have more than one endpoint per profile. Returns 0 on success and -1 on failure.

Endpoints are transmitted using TAO-proprietory tagged component. Component tag is TAO_TAG_ENDPOINTS and component data is an encapsulation of a sequence of structs, each representing a single endpoint. Data format is specified in iiop_endpoins.pidl.

TAO_Endpoint * TAO_IIOP_Profile::endpoint ( void  ) [virtual]

Return a pointer to this profile's endpoint. If the profile contains more than one endpoint, i.e., a list, the method returns the head of the list.

Implements TAO_Profile.

CORBA::ULong TAO_IIOP_Profile::endpoint_count ( void  ) const [virtual]

Return how many endpoints this profile contains.

Implements TAO_Profile.

CORBA::ULong TAO_IIOP_Profile::hash ( CORBA::ULong  max) [virtual]

Return a hash value for this object.

Implements TAO_Profile.

char TAO_IIOP_Profile::object_key_delimiter ( void  ) const [virtual]

The object key delimiter that IIOP uses or expects.

Implements TAO_Profile.

void TAO_IIOP_Profile::parse_string_i ( const char *  string) [protected, virtual]

Protocol specific implementation of parse_string ()

Implements TAO_Profile.

const char * TAO_IIOP_Profile::prefix ( void  ) [static]

Return the char string prefix.

void TAO_IIOP_Profile::remove_endpoint ( TAO_IIOP_Endpoint endp)

Remove endp from this profile's list of endpoints and free the endp memory. This method assumes endp is in this profile's endpoint list.

void TAO_IIOP_Profile::remove_generic_endpoint ( TAO_Endpoint ep) [virtual]

Remove the provided endpoint from the profile. Some subclasses of TAO_Profile already have a protocol-specific version of remove_endpoint, but this generic interface is required. The default implementation is a no-op. Protocol maintainers wishing to add support for the EndpointPolicy must implement remove_generic_endpoint to call their protocol-specific version of remove_endpoint

Reimplemented from TAO_Profile.

char * TAO_IIOP_Profile::to_string ( void  ) [virtual]

Template methods. Please see Profile.h for documentation.

Implements TAO_Profile.


Member Data Documentation

Number of endpoints in the list headed by <endpoint_>.

Head of this profile's list of endpoints. This endpoint is not dynamically allocated because a profile always contains at least one endpoint.

Currently, a profile contains more than one endpoint, i.e., list contains more than just the head, only for two cases (1) when RTCORBA is enabled and (2) the ORB is initialized with -ORBPreferredInterfaces option. However, in the near future, this will be used in for mode as well, e.g., to support TAG_ALTERNATE_IIOP_ADDRESS feature.

This is probably as good a place to discuss how the list of endpoints is used for #2. If the ORB is configured to use preferred interfaces for invocation, TAO creates an endpoint per preferred interface. To be clear, every tuple <destination:target> will have an endpoint. What TAO essentially does is that creates it multiple endpoints so that the invocation code path can use existing iterating techniques to try one preferred interface after another (if the first did not work). If the ORB is configured with -ORBEnforcePreferredInterface set to false in addition to the ORBPreferredInterfaces option , TAO creates another endpoint with the preferred bit set to null, so that the invocation code can fall back to a TCP stack returned local address. Addressing info of the default endpoint, i.e., head of the list, is transmitted using standard IIOP ProfileBody components. See <encode_endpoints> method documentation above for how the rest of the endpoint list is transmitted.

For efficient insertion at the end of the list.

const char TAO_IIOP_Profile::object_key_delimiter_ = '/' [static]

The documentation for this class was generated from the following files:
