ACE: ACE_Thread_Timer_Queue_Adapter< TQ, TYPE > Class Template Reference

ACE 6.0.4

Adapts an ACE timer queue using a separate thread for dispatching. More...

#include <Timer_Queue_Adapters.h>

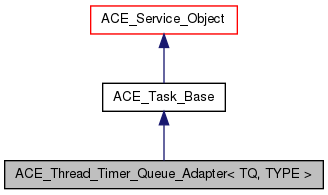

Inheritance diagram for ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >:

Inheritance graph

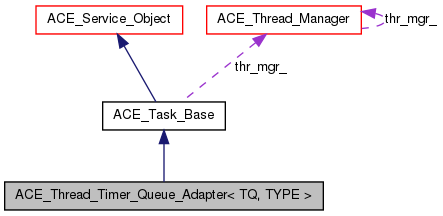

Collaboration diagram for ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >:

Collaboration graph

List of all members.

Public Types
typedef TQ	TIMER_QUEUE
	Trait for the underlying queue type.
Public Member Functions
	ACE_Thread_Timer_Queue_Adapter (ACE_Thread_Manager =ACE_Thread_Manager::instance(), TQ timer_queue=0)
virtual	~ACE_Thread_Timer_Queue_Adapter (void)
	Destructor.
long	schedule (TYPE handler, const void *act, const ACE_Time_Value &future_time, const ACE_Time_Value &interval=ACE_Time_Value::zero)
int	cancel (long timer_id, const void **act=0)
virtual int	svc (void)
	Runs the dispatching thread.
virtual void	deactivate (void)
	Inform the dispatching thread that it should terminate.
ACE_SYNCH_RECURSIVE_MUTEX &	mutex (void)
	Access the locking mechanism, useful for iteration.
int	timer_queue (TQ *tq)
	Set a user-specified timer queue.
TQ *	timer_queue (void) const
	Return the current <TQ>.
ACE_thread_t	thr_id (void) const
	Return the thread id of our active object.
virtual int	activate (long flags=THR_NEW_LWP\|THR_JOINABLE, int n_threads=1, int force_active=0, long priority=ACE_DEFAULT_THREAD_PRIORITY, int grp_id=-1, ACE_Task_Base task=0, ACE_hthread_t thread_handles[]=0, void stack[]=0, size_t stack_size[]=0, ACE_thread_t thread_ids[]=0, const char *thr_name[]=0)
Private Attributes
TQ *	timer_queue_
	The underlying Timer_Queue.
bool	delete_timer_queue_
ACE_SYNCH_RECURSIVE_MUTEX	mutex_
ACE_SYNCH_RECURSIVE_CONDITION	condition_
bool	active_
ACE_thread_t	thr_id_
	Thread id of our active object task.

Detailed Description

template<class TQ, class TYPE = ACE_Event_Handler*>
class ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >

Adapts an ACE timer queue using a separate thread for dispatching.

This implementation uses a separate thread to dispatch the timers. The base queue need not be thread safe; this class takes all the necessary locks.

Note:: This is a case where template parameters will be useful, but (IMHO) the effort and portability problems discourage their use.

Member Typedef Documentation

template<class TQ , class TYPE = ACE_Event_Handler*>

typedef TQ ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::TIMER_QUEUE

Trait for the underlying queue type.

Constructor & Destructor Documentation

template<class TQ , class TYPE >

ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::ACE_Thread_Timer_Queue_Adapter	(	ACE_Thread_Manager *	tm = `ACE_Thread_Manager::instance ()`,
		TQ *	timer_queue = `0`
	)

Creates the timer queue. Activation of the task is the user's responsibility. Optionally a pointer to a timer queue can be passed, when no pointer is passed, a TQ is dynamically created

template<class TQ , class TYPE >

ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::~ACE_Thread_Timer_Queue_Adapter ( void ) [virtual]

Destructor.

Member Function Documentation

template<class TQ , class TYPE >

int ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::activate	(	long	flags = `THR_NEW_LWP \| THR_JOINABLE`,
		int	n_threads = `1`,
		int	force_active = `0`,
		long	priority = `ACE_DEFAULT_THREAD_PRIORITY`,
		int	grp_id = `-1`,
		ACE_Task_Base *	task = `0`,
		ACE_hthread_t	thread_handles[] = `0`,
		void *	stack[] = `0`,
		size_t	stack_size[] = `0`,
		ACE_thread_t	thread_ids[] = `0`,
		const char *	thr_name[] = `0`
	)		`[virtual]`

We override the default activate() method so that we can ensure that only a single thread is ever spawned. Otherwise, too many weird things can happen...

Reimplemented from ACE_Task_Base.

template<class TQ , class TYPE >

int ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::cancel	(	long	timer_id,
		const void **	act = `0`
	)

Cancel the timer_id and return the act parameter if an address is passed in. Also wakes up the dispatching thread.

template<class TQ , class TYPE >

void ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::deactivate ( void ) [virtual]

Inform the dispatching thread that it should terminate.

template<class TQ , class TYPE >

ACE_SYNCH_RECURSIVE_MUTEX & ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::mutex ( void )

Access the locking mechanism, useful for iteration.

template<class TQ , class TYPE >

long ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::schedule	(	TYPE	handler,
		const void *	act,
		const ACE_Time_Value &	future_time,
		const ACE_Time_Value &	interval = `ACE_Time_Value::zero`
	)

Schedule the timer according to the semantics of the <TQ>; wakes up the dispatching thread.

template<class TQ , class TYPE >

int ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::svc ( void ) [virtual]

Runs the dispatching thread.

Reimplemented from ACE_Task_Base.

template<class TQ , class TYPE >

ACE_thread_t ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::thr_id ( void ) const [inline]

Return the thread id of our active object.

template<class TQ , class TYPE >

int ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::timer_queue ( TQ * tq ) [inline]

Set a user-specified timer queue.

template<class TQ , class TYPE >

TQ * ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::timer_queue ( void ) const [inline]

Return the current <TQ>.

Member Data Documentation

template<class TQ , class TYPE = ACE_Event_Handler*>

bool ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::active_ [private]

When deactivate is called this variable turns to false and the dispatching thread is signalled, to terminate its main loop.

template<class TQ , class TYPE = ACE_Event_Handler*>

ACE_SYNCH_RECURSIVE_CONDITION ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::condition_ [private]

The dispatching thread sleeps on this condition while waiting to dispatch the next timer; it is used to wake it up if there is a change on the timer queue.

template<class TQ , class TYPE = ACE_Event_Handler*>

bool ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::delete_timer_queue_ [private]

Keeps track of whether we should delete the timer queue (if we didn't create it, then we don't delete it).

template<class TQ , class TYPE = ACE_Event_Handler*>

ACE_SYNCH_RECURSIVE_MUTEX ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::mutex_ [private]

The mutual exclusion mechanism that is required to use the <condition_>.

template<class TQ , class TYPE = ACE_Event_Handler*>

ACE_thread_t ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::thr_id_ [private]

Thread id of our active object task.

template<class TQ , class TYPE = ACE_Event_Handler*>

TQ* ACE_Thread_Timer_Queue_Adapter< TQ, TYPE >::timer_queue_ [private]

The underlying Timer_Queue.

The documentation for this class was generated from the following files:
