ACE_Asynch_Connect Class Reference

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class. More...

#include <Asynch_IO.h>

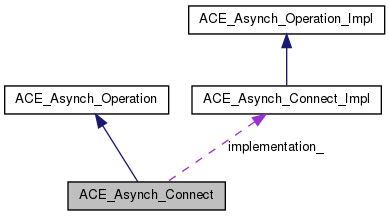

Inheritance diagram for ACE_Asynch_Connect:
Inheritance graph
Collaboration diagram for ACE_Asynch_Connect:
Collaboration graph

List of all members.


class  Result
 This is that class which will be passed back to the handler when the asynchronous connect completes. More...

Public Member Functions

 ACE_Asynch_Connect (void)
 A do nothing constructor.
virtual ~ACE_Asynch_Connect (void)
int open (ACE_Handler &handler, ACE_HANDLE handle=ACE_INVALID_HANDLE, const void *completion_key=0, ACE_Proactor *proactor=0)
int connect (ACE_HANDLE connect_handle, const ACE_Addr &remote_sap, const ACE_Addr &local_sap, int reuse_addr, const void *act=0, int priority=0, int signal_number=ACE_SIGRTMIN)
virtual ACE_Asynch_Operation_Implimplementation (void) const
 Return the underlying implementation class.

Protected Attributes


Private Member Functions

void operator= (const ACE_Asynch_Connect &)
 ACE_Asynch_Connect (const ACE_Asynch_Connect &)

Detailed Description

This class is a factory for starting off asynchronous connects This class forwards all methods to its implementation class.

Once open is called, multiple asynchronous connect operationss can started using this class. A ACE_Asynch_Connect::Result will be passed back to the associated ACE_Handler when the asynchronous connect completes through the ACE_Handler::handle_connect() callback.

Constructor & Destructor Documentation

ACE_Asynch_Connect::ACE_Asynch_Connect ( void  )

A do nothing constructor.

ACE_Asynch_Connect::~ACE_Asynch_Connect ( void  ) [virtual]


ACE_Asynch_Connect::ACE_Asynch_Connect ( const ACE_Asynch_Connect ) [private]

Member Function Documentation

int ACE_Asynch_Connect::connect ( ACE_HANDLE  connect_handle,
const ACE_Addr remote_sap,
const ACE_Addr local_sap,
int  reuse_addr,
const void *  act = 0,
int  priority = 0,
int  signal_number = ACE_SIGRTMIN

This starts off an asynchronous Connect.

ACE_Asynch_Operation_Impl * ACE_Asynch_Connect::implementation ( void  ) const [virtual]

Return the underlying implementation class.

Implements ACE_Asynch_Operation.

int ACE_Asynch_Connect::open ( ACE_Handler handler,
const void *  completion_key = 0,
ACE_Proactor proactor = 0

Initializes the factory with information which will be used with each asynchronous call.

  • handle is ignored and should be ACE_INVALID_HANDLE.

Reimplemented from ACE_Asynch_Operation.

void ACE_Asynch_Connect::operator= ( const ACE_Asynch_Connect ) [private]

Member Data Documentation

Delegation/implementation class that all methods will be forwarded to.

The documentation for this class was generated from the following files:
