CORBA::TypeCode Class Reference

A representation of the structure of a given OMG IDL-declared type. More...

#include <TypeCode.h>

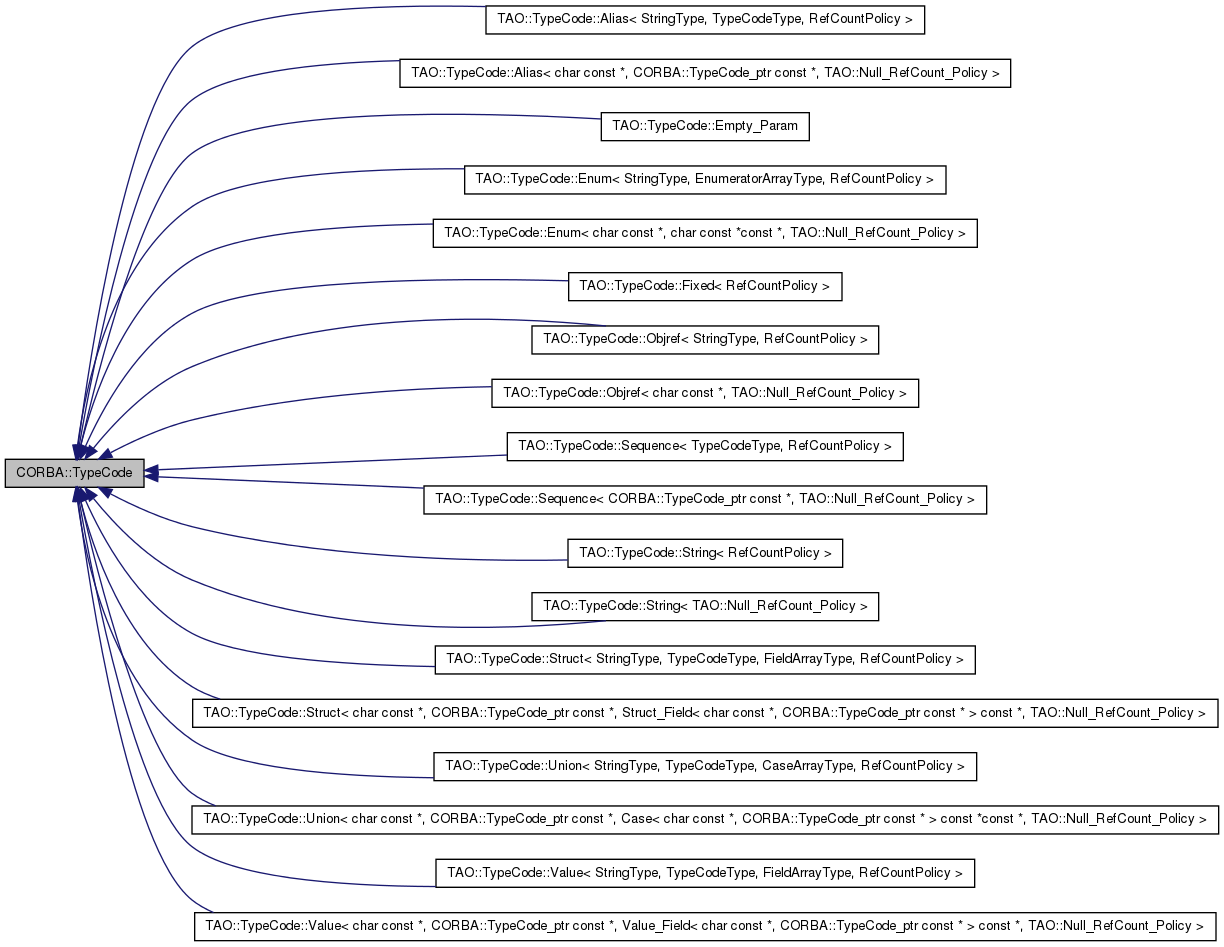

Inheritance diagram for CORBA::TypeCode:
Inheritance graph
[legend]
Collaboration diagram for CORBA::TypeCode:
Collaboration graph
[legend]

List of all members.

Classes

class  BadKind
 Invalid TypeCode operation exception. More...
class  Bounds
 Out-of-bounds member index exception. More...

Public Types

typedef CORBA::TypeCode_ptr _ptr_type
typedef CORBA::TypeCode_var _var_type
typedef CORBA::TypeCode_out _out_type

Public Member Functions

virtual bool tao_marshal_kind (TAO_OutputCDR &cdr) const
 Marshal the TypeCode TCKind.
virtual bool tao_marshal (TAO_OutputCDR &cdr, CORBA::ULong offset) const =0
 Marshal this TypeCode into a CDR output stream.
virtual void tao_duplicate (void)=0
 Increase the reference count on this TypeCode.
virtual void tao_release (void)=0
 Decrease the reference count on this object.
@c CORBA::TypeCode Methods

These methods are part of the public interface of CORBA::TypeCode class, as defined by the OMG CORBA specification and C++ mapping.

The C++ mapping does not declare the methods in the public CORBA::TypeCode API as virtual, so work around that by making these methods inlined to forward all calls to the corresponding protected template method (i.e. the design pattern, not the C++ feature) listed below in the protected block.

Boolean equal (TypeCode_ptr tc) const
 Equality of two TypeCodes.
Boolean equivalent (TypeCode_ptr tc) const
 Equivalence of two TypeCodes.
TCKind kind (void) const
 The kind of TypeCode.
TypeCode_ptr get_compact_typecode (void) const
char const * id (void) const
 The RepositoryId globally identifying the type.
char const * name (void) const
ULong member_count (void) const
 The type member count.
char const * member_name (ULong index) const
 The type member name.
TypeCode_ptr member_type (ULong index) const
 The type member TypeCode.
Anymember_label (ULong index) const
 The union member label.
TypeCode_ptr discriminator_type (void) const
 The type of all non-default union member labels.
Long default_index (void) const
 The index of the default union member.
ULong length (void) const
 The length of the type.
TypeCode_ptr content_type (void) const
 The underlying content type.
UShort fixed_digits (void) const
 The number of significant digits.
UShort fixed_scale (void) const
 The scale factor.
Visibility member_visibility (ULong index) const
ValueModifier type_modifier (void) const
TypeCode_ptr concrete_base_type (void) const

Static Public Member Functions

static CORBA::TypeCode_ptr _duplicate (CORBA::TypeCode_ptr tc)
 Duplicate this TypeCode.
static CORBA::TypeCode_ptr _nil (void)
 Returns a NULL typecode.
static void _tao_any_destructor (void *x)
 Destruction callback for Anys.

Static Public Attributes

static CORBA::TypeCode_ptr const _tc_Bounds
static CORBA::TypeCode_ptr const _tc_BadKind

Protected Member Functions

 TypeCode (CORBA::TCKind kind)
 Constructor.
virtual ~TypeCode (void)
 Destructor.
@c TypeCode Template Methods

Methods that must be implemented by CORBA::TypeCode subclasses if valid for those subclasses.

The default implementations of the non-pure virtual methods throw the CORBA::TypeCode::BadKind exception since many of these methods are TypeCode type-specific. This reduces code duplication and bloat.

The TypeCode equal(), equivalent(), kind() and get_compact_typecode() methods are valid for all TypeCodes which is why their template method "@c _i" counterparts are pure virtual.

virtual Boolean equal_i (TypeCode_ptr tc) const =0
virtual Boolean equivalent_i (TypeCode_ptr tc) const =0
virtual TypeCode_ptr get_compact_typecode_i (void) const =0
virtual char const * id_i (void) const
virtual char const * name_i (void) const
virtual ULong member_count_i (void) const
virtual char const * member_name_i (ULong index) const
virtual TypeCode_ptr member_type_i (ULong index) const
virtual Anymember_label_i (ULong index) const
virtual TypeCode_ptr discriminator_type_i (void) const
virtual Long default_index_i (void) const
virtual ULong length_i (void) const
virtual TypeCode_ptr content_type_i (void) const
virtual UShort fixed_digits_i (void) const
virtual UShort fixed_scale_i (void) const
virtual Visibility member_visibility_i (ULong index) const
virtual ValueModifier type_modifier_i (void) const
virtual TypeCode_ptr concrete_base_type_i (void) const

Protected Attributes

TCKind const kind_
 The kind of TypeCode.

Private Member Functions

 TypeCode (TypeCode const &)
void operator= (TypeCode const &)

Detailed Description

A representation of the structure of a given OMG IDL-declared type.

TypeCodes are primarily used by CORBA::Anys, the CORBA Interface Repository and the CORBA Dynamic Invocation Interface.


Member Typedef Documentation


Constructor & Destructor Documentation

CORBA::TypeCode::TypeCode ( CORBA::TCKind  kind) [protected]

Constructor.

CORBA::TypeCode::~TypeCode ( void  ) [protected, virtual]

Destructor.

Protected destructor to enforce proper memory management through the reference counting mechanism.

CORBA::TypeCode::TypeCode ( TypeCode const &  ) [private]

Member Function Documentation

CORBA::TypeCode_ptr CORBA::TypeCode::_duplicate ( CORBA::TypeCode_ptr  tc) [static]

Duplicate this TypeCode.

Statically instantiated TypeCodes incur no reference count manipulation, i.e. reference counting is a no-op.

Dynamically instantiated TypeCodes will have their reference count incremented by one each time this function is called.

CORBA::TypeCode_ptr CORBA::TypeCode::_nil ( void  ) [static]

Returns a NULL typecode.

void CORBA::TypeCode::_tao_any_destructor ( void *  x) [static]

Destruction callback for Anys.

CORBA::TypeCode_ptr CORBA::TypeCode::concrete_base_type ( void  ) const

The TypeCode corresponding to the concrete base valuetype or eventtype. This method is valid for the following kinds of TypeCodes:

  • tk_value
  • tk_event
Returns:
TypeCode corresponding to the concrete base valuetype or eventtype. CORBA::TypeCode::_nil() if no concrete base exists.
CORBA::TypeCode_ptr CORBA::TypeCode::concrete_base_type_i ( void  ) const [protected, virtual]
CORBA::TypeCode_ptr CORBA::TypeCode::content_type ( void  ) const

The underlying content type.

This method is valid for the following kinds of TypeCodes:

  • tk_sequence
  • tk_array
  • tk_value_box
  • tk_alias
CORBA::TypeCode_ptr CORBA::TypeCode::content_type_i ( void  ) const [protected, virtual]
CORBA::Long CORBA::TypeCode::default_index ( void  ) const

The index of the default union member.

This method is valid for the following kinds of TypeCodes:

  • tk_union
CORBA::Long CORBA::TypeCode::default_index_i ( void  ) const [protected, virtual]
CORBA::TypeCode_ptr CORBA::TypeCode::discriminator_type ( void  ) const

The type of all non-default union member labels.

This method is valid for the following kinds of TypeCodes:

  • tk_union
CORBA::TypeCode_ptr CORBA::TypeCode::discriminator_type_i ( void  ) const [protected, virtual]
CORBA::Boolean CORBA::TypeCode::equal ( TypeCode_ptr  tc) const

Equality of two TypeCodes.

Returns:
true if and only if the set of legal operations is the same and invoking any operation on the this TypeCode and tc returns identical results.
virtual Boolean CORBA::TypeCode::equal_i ( TypeCode_ptr  tc) const [protected, pure virtual]
CORBA::Boolean CORBA::TypeCode::equivalent ( TypeCode_ptr  tc) const

Equivalence of two TypeCodes.

Equivalence of two TypeCodes satisfies a subset of the requirements necessary for equality.

See also:
equal
virtual Boolean CORBA::TypeCode::equivalent_i ( TypeCode_ptr  tc) const [protected, pure virtual]
CORBA::UShort CORBA::TypeCode::fixed_digits ( void  ) const

The number of significant digits.

This method is valid for the following kinds of TypeCodes:

  • tk_fixed
CORBA::UShort CORBA::TypeCode::fixed_digits_i ( void  ) const [protected, virtual]
CORBA::UShort CORBA::TypeCode::fixed_scale ( void  ) const

The scale factor.

This method is valid for the following kinds of TypeCodes:

  • tk_fixed
CORBA::UShort CORBA::TypeCode::fixed_scale_i ( void  ) const [protected, virtual]
CORBA::TypeCode_ptr CORBA::TypeCode::get_compact_typecode ( void  ) const

Return TypeCode stripped of optional name and member_name fields.

Note:
Calling this method will incur additional run-time memory consumption since TAO's implementation relies on the TypeCodeFactory to dynamically create a compact TypeCode; the exception being TypeCodes with empty parameter lists. Those TypeCodes are already compact, meaning that call this method on such TypeCodes incurs no additional run-time memory requirements.

Unless you need to send compact TypeCodes "over-the-wire" or your TypeCode corresponds to a type with a large number of members, try to stick with the existing potentially non-compact TypeCode.

Note:
Compact TypeCodes may also be generated statically by the TAO_IDL compiler by invoking it with its "-Gt" (i.e. enable optimized TypeCodes) command line option.
virtual TypeCode_ptr CORBA::TypeCode::get_compact_typecode_i ( void  ) const [protected, pure virtual]
char const * CORBA::TypeCode::id ( void  ) const

The RepositoryId globally identifying the type.

This method is valid for the following kinds of TypeCodes:

  • tk_objref
  • tk_struct
  • tk_union
  • tk_enum
  • tk_alias
  • tk_value
  • tk_value_box
  • tk_native
  • tk_abstract_interface
  • tk_local_interface
  • tk_except
  • tk_component
  • tk_home
  • tk_event
Note:
CORBA::TypeCode::id() does not follow the usual parameter passing rules defined by the C++ mapping. This behavior is required by the C++ mapping. In particular, ownership is maintained by the TypeCode.
char const * CORBA::TypeCode::id_i ( void  ) const [protected, virtual]
CORBA::TCKind CORBA::TypeCode::kind ( void  ) const

The kind of TypeCode.

CORBA::ULong CORBA::TypeCode::length ( void  ) const

The length of the type.

This method is valid for the following kinds of TypeCodes:

  • tk_string
  • tk_wstring
  • tk_sequence
  • tk_array
CORBA::ULong CORBA::TypeCode::length_i ( void  ) const [protected, virtual]
CORBA::ULong CORBA::TypeCode::member_count ( void  ) const

The type member count.

This method is valid for the following kinds of TypeCodes:

  • tk_struct
  • tk_union
  • tk_enum
  • tk_value
  • tk_except
  • tk_event
CORBA::ULong CORBA::TypeCode::member_count_i ( void  ) const [protected, virtual]
CORBA::Any * CORBA::TypeCode::member_label ( ULong  index) const

The union member label.

This method is valid for the following kinds of TypeCodes:

  • tk_union
CORBA::Any * CORBA::TypeCode::member_label_i ( CORBA::ULong  index) const [protected, virtual]
char const * CORBA::TypeCode::member_name ( ULong  index) const

The type member name.

This method is valid for the following kinds of TypeCodes:

  • tk_struct
  • tk_union
  • tk_enum
  • tk_value
  • tk_except
  • tk_event
Note:
CORBA::TypeCode::member_name() does not follow the usual parameter passing rules defined by the C++ mapping. This behavior is required by the C++ mapping. In particular, ownership is maintained by the TypeCode.
char const * CORBA::TypeCode::member_name_i ( CORBA::ULong  index) const [protected, virtual]
CORBA::TypeCode_ptr CORBA::TypeCode::member_type ( ULong  index) const

The type member TypeCode.

This method is valid for the following kinds of TypeCodes:

  • tk_struct
  • tk_union
  • tk_value
  • tk_except
  • tk_event
CORBA::TypeCode_ptr CORBA::TypeCode::member_type_i ( CORBA::ULong  index) const [protected, virtual]
CORBA::Visibility CORBA::TypeCode::member_visibility ( ULong  index) const

The Visibility of the valuetype or eventtype member corresponding to index index. This method is valid for the following kinds of TypeCodes:

  • tk_value
  • tk_event
CORBA::Visibility CORBA::TypeCode::member_visibility_i ( CORBA::ULong  index) const [protected, virtual]
char const * CORBA::TypeCode::name ( void  ) const

The simple name identifying the type within its enclosing scope. This method is valid for the following kinds of TypeCodes:

  • tk_objref
  • tk_struct
  • tk_union
  • tk_enum
  • tk_alias
  • tk_value
  • tk_value_box
  • tk_native
  • tk_abstract_interface
  • tk_local_interface
  • tk_except
  • tk_component
  • tk_home
  • tk_event
Note:
CORBA::TypeCode::name() does not follow the usual parameter passing rules defined by the C++ mapping. This behavior is required by the C++ mapping. In particular, ownership is maintained by the TypeCode.
char const * CORBA::TypeCode::name_i ( void  ) const [protected, virtual]
void CORBA::TypeCode::operator= ( TypeCode const &  ) [private]
virtual void CORBA::TypeCode::tao_duplicate ( void  ) [pure virtual]

Increase the reference count on this TypeCode.

Implemented in TAO::TypeCode::Alias< StringType, TypeCodeType, RefCountPolicy >, TAO::TypeCode::Alias< char const *, CORBA::TypeCode_ptr const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Empty_Param, TAO::TypeCode::Enum< StringType, EnumeratorArrayType, RefCountPolicy >, TAO::TypeCode::Enum< char const *, char const *const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Fixed< RefCountPolicy >, TAO::TypeCode::Objref< StringType, RefCountPolicy >, TAO::TypeCode::Objref< char const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Sequence< TypeCodeType, RefCountPolicy >, TAO::TypeCode::Sequence< CORBA::TypeCode_ptr const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::String< RefCountPolicy >, TAO::TypeCode::String< TAO::Null_RefCount_Policy >, TAO::TypeCode::Struct< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >, TAO::TypeCode::Struct< char const *, CORBA::TypeCode_ptr const *, Struct_Field< char const *, CORBA::TypeCode_ptr const * > const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Union< StringType, TypeCodeType, CaseArrayType, RefCountPolicy >, TAO::TypeCode::Union< char const *, CORBA::TypeCode_ptr const *, Case< char const *, CORBA::TypeCode_ptr const * > const *const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >, and TAO::TypeCode::Value< char const *, CORBA::TypeCode_ptr const *, Value_Field< char const *, CORBA::TypeCode_ptr const * > const *, TAO::Null_RefCount_Policy >.

virtual bool CORBA::TypeCode::tao_marshal ( TAO_OutputCDR cdr,
CORBA::ULong  offset
) const [pure virtual]

Marshal this TypeCode into a CDR output stream.

Marshal this TypeCode into the cdr output CDR stream, excluding the TypeCode kind. Existing cdr contents will not be altered. The marshaled TypeCode will be appended to the given cdr CDR output stream.

Parameters:
cdrOutput CDR stream into which the TypeCode will be marshaled.
offsetNumber of bytes currently in the output CDR stream, including the top-level TypeCode TCKind. This argument is useful for recursive TypeCodes. TypeCodes that contain other TypeCodes should pass an updated offset value to the marshaling operation for those contained TypeCodes.
Returns:
true if marshaling was successful.
Note:
This is a TAO-specific method that is not part of the standard CORBA::TypeCode interface.
If this method returns false, the contents of the cdr output CDR stream are undefined.

Implemented in TAO::TypeCode::Alias< StringType, TypeCodeType, RefCountPolicy >, TAO::TypeCode::Alias< char const *, CORBA::TypeCode_ptr const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Empty_Param, TAO::TypeCode::Enum< StringType, EnumeratorArrayType, RefCountPolicy >, TAO::TypeCode::Enum< char const *, char const *const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Fixed< RefCountPolicy >, TAO::TypeCode::Objref< StringType, RefCountPolicy >, TAO::TypeCode::Objref< char const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Sequence< TypeCodeType, RefCountPolicy >, TAO::TypeCode::Sequence< CORBA::TypeCode_ptr const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::String< RefCountPolicy >, TAO::TypeCode::String< TAO::Null_RefCount_Policy >, TAO::TypeCode::Struct< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >, TAO::TypeCode::Struct< char const *, CORBA::TypeCode_ptr const *, Struct_Field< char const *, CORBA::TypeCode_ptr const * > const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Union< StringType, TypeCodeType, CaseArrayType, RefCountPolicy >, TAO::TypeCode::Union< char const *, CORBA::TypeCode_ptr const *, Case< char const *, CORBA::TypeCode_ptr const * > const *const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >, and TAO::TypeCode::Value< char const *, CORBA::TypeCode_ptr const *, Value_Field< char const *, CORBA::TypeCode_ptr const * > const *, TAO::Null_RefCount_Policy >.

bool CORBA::TypeCode::tao_marshal_kind ( TAO_OutputCDR cdr) const [virtual]

Marshal the TypeCode TCKind.

virtual void CORBA::TypeCode::tao_release ( void  ) [pure virtual]

Decrease the reference count on this object.

Implemented in TAO::TypeCode::Alias< StringType, TypeCodeType, RefCountPolicy >, TAO::TypeCode::Alias< char const *, CORBA::TypeCode_ptr const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Empty_Param, TAO::TypeCode::Enum< StringType, EnumeratorArrayType, RefCountPolicy >, TAO::TypeCode::Enum< char const *, char const *const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Fixed< RefCountPolicy >, TAO::TypeCode::Objref< StringType, RefCountPolicy >, TAO::TypeCode::Objref< char const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Sequence< TypeCodeType, RefCountPolicy >, TAO::TypeCode::Sequence< CORBA::TypeCode_ptr const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::String< RefCountPolicy >, TAO::TypeCode::String< TAO::Null_RefCount_Policy >, TAO::TypeCode::Struct< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >, TAO::TypeCode::Struct< char const *, CORBA::TypeCode_ptr const *, Struct_Field< char const *, CORBA::TypeCode_ptr const * > const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Union< StringType, TypeCodeType, CaseArrayType, RefCountPolicy >, TAO::TypeCode::Union< char const *, CORBA::TypeCode_ptr const *, Case< char const *, CORBA::TypeCode_ptr const * > const *const *, TAO::Null_RefCount_Policy >, TAO::TypeCode::Value< StringType, TypeCodeType, FieldArrayType, RefCountPolicy >, and TAO::TypeCode::Value< char const *, CORBA::TypeCode_ptr const *, Value_Field< char const *, CORBA::TypeCode_ptr const * > const *, TAO::Null_RefCount_Policy >.

CORBA::ValueModifier CORBA::TypeCode::type_modifier ( void  ) const

The ValueModifier of the valuetype of eventtype represented by this TypeCode. This method is valid for the following kinds of TypeCodes:

  • tk_value
  • tk_event
CORBA::ValueModifier CORBA::TypeCode::type_modifier_i ( void  ) const [protected, virtual]

Member Data Documentation

Initial value:
  &TAO::TypeCode::tc_BadKind
Initial value:
  &TAO::TypeCode::tc_Bounds
TCKind const CORBA::TypeCode::kind_ [protected]

The kind of TypeCode.


The documentation for this class was generated from the following files:
