DAnCE::RepositoryManagerDaemon_i Class Reference

#include <RepositoryManager_Impl.h>

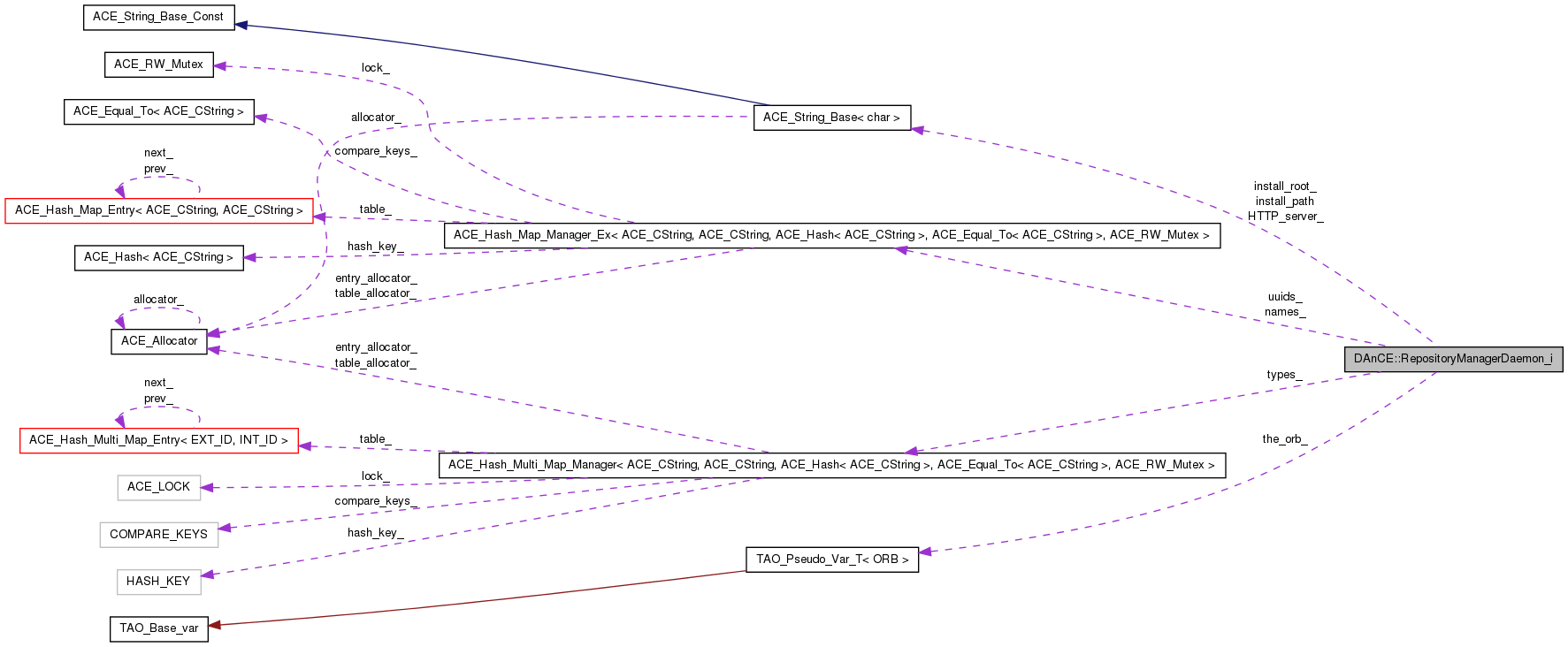

Collaboration diagram for DAnCE::RepositoryManagerDaemon_i:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 RepositoryManagerDaemon_i (CORBA::ORB_ptr the_orb, const ACE_TCHAR *server=ACE_TEXT("localhost:5432"), const ACE_TCHAR *install_dir=ACE_TEXT("RepositoryManager"))
 Constructor.
virtual ~RepositoryManagerDaemon_i (void)
 Destructor.
virtual void shutdown ()
virtual void installPackage (const ACE_TCHAR *installationName, const ACE_TCHAR *location,::CORBA::Boolean replace)
virtual void createPackage (const ACE_TCHAR *installationName, const ::Deployment::PackageConfiguration &package, const ACE_TCHAR *baseLocation,::CORBA::Boolean replace)
virtual
::Deployment::PackageConfiguration
findPackageByName (const ACE_TCHAR *name)
virtual
::Deployment::PackageConfiguration
findPackageByUUID (const ACE_TCHAR *UUID)
virtual ::CORBA::StringSeq * findNamesByType (const ACE_TCHAR *type)
virtual ::CORBA::StringSeq * getAllNames ()
virtual ::CORBA::StringSeq * getAllTypes ()
virtual void deletePackage (const ACE_TCHAR *installationName)

Protected Member Functions

Deployment::PackageConfigurationretrieve_PC_from_package (ACE_TCHAR *package)
void find_PC_name (ACE_TCHAR *package, ACE_CString &pcd_name)
 Find out what the name of the PackageConfiguration file is.
Deployment::PackageConfigurationretrieve_PC_from_descriptors (const ACE_TCHAR *pc_name, const ACE_TCHAR *descriptor_dir)
int HTTP_Get (const ACE_TCHAR *URL, ACE_Message_Block &mb)
int extract_descriptor_files (ACE_TCHAR *package, ACE_CString &pcd_name)
int remove_descriptor_files (ACE_TCHAR *package)
retval on success retval on
error *int
remove_extracted_package (const ACE_TCHAR *package_path)
int add_type (::Deployment::PackageConfiguration &pc, const ACE_TCHAR *name)
int remove_type (::Deployment::PackageConfiguration &pc, const ACE_TCHAR *name)
void dump (void)
 Function to dump the state of the RepositoryManager.
void save (void)
 Function to save the package info of the RepositoryManager.

Private Types

typedef
ACE_Hash_Map_Manager_Ex
< ACE_CString, ACE_CString,
ACE_Hash< ACE_CString >
, ACE_Equal_To< ACE_CString >
, ACE_RW_Mutex
PCMap
typedef PCMap::ITERATOR PCMap_Iterator
typedef PCMap::ENTRY PCEntry
typedef
ACE_Hash_Multi_Map_Manager
< ACE_CString, ACE_CString,
ACE_Hash< ACE_CString >
, ACE_Equal_To< ACE_CString >
, ACE_RW_Mutex
CIMap
typedef CIMap::ITERATOR CIMap_Iterator
typedef CIMap::ENTRY CIEntry
typedef CIEntry::VALUE_SET CISet
typedef CIEntry::VALUE_SET_ITERATOR CISet_Iterator

Private Attributes

PCMap names_
PCMap uuids_
CIMap types_
CORBA::ORB_var the_orb_
 The ORB.
ACE_TCHAR cwd_ [TEMP_LEN]
 Will hold the current working directory.
ACE_CString install_root_
 Full path for the install directory.
ACE_CString HTTP_server_
 Location of the server.
ACE_CString install_path
 Directory where the packages will be stored locally.

Member Typedef Documentation

Cached information about the installed Component Interfaces A map which associates Component supportedType with the names of packages which implement this component type Key: Component supportedType Value: Unbounded set of the names of installed packages which implement this component type Based on the synchronization needed we can parametrize this with either ACE_Null_Mutex or ACE_RW_Mutex

Cached information about the installed PackageConfigurations A separate map for the installation names and their UUID's Key: PackageConfiguration name or its UUID (CString type) Value: The location of the local copy of the package Based on the synchronization needed we can parametrize this with either ACE_Null_Mutex or ACE_RW_Mutex


Constructor & Destructor Documentation

DAnCE::RepositoryManagerDaemon_i::RepositoryManagerDaemon_i ( CORBA::ORB_ptr  the_orb,
const ACE_TCHAR server = ACE_TEXT("localhost:5432"),
const ACE_TCHAR install_dir = ACE_TEXT("RepositoryManager")
)

Constructor.

DAnCE::RepositoryManagerDaemon_i::~RepositoryManagerDaemon_i ( void  ) [virtual]

Destructor.


Member Function Documentation

int DAnCE::RepositoryManagerDaemon_i::add_type ( ::Deployment::PackageConfiguration pc,
const ACE_TCHAR name
) [protected]

Function to extract the type of the component from the PackageConfiguration and update the interface map

Return values:
1on success
0on error
void DAnCE::RepositoryManagerDaemon_i::createPackage ( const ACE_TCHAR installationName,
const ::Deployment::PackageConfiguration package,
const ACE_TCHAR baseLocation,
::CORBA::Boolean  replace
) [virtual]
void DAnCE::RepositoryManagerDaemon_i::deletePackage ( const ACE_TCHAR installationName) [virtual]
void DAnCE::RepositoryManagerDaemon_i::dump ( void  ) [protected]

Function to dump the state of the RepositoryManager.

int DAnCE::RepositoryManagerDaemon_i::extract_descriptor_files ( ACE_TCHAR package,
ACE_CString pcd_name
) [protected]

Function to extract all necessary files for parsing the PackageConfiguration descriptor and populating the idl struct.

Return values:
1success
0error
Note:
ACE_CString& pcd_name is an out parameter
void DAnCE::RepositoryManagerDaemon_i::find_PC_name ( ACE_TCHAR package,
ACE_CString pcd_name
) [protected]

Find out what the name of the PackageConfiguration file is.

CORBA::StringSeq * DAnCE::RepositoryManagerDaemon_i::findNamesByType ( const ACE_TCHAR type)
Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::findPackageByName ( const ACE_TCHAR name)
Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::findPackageByUUID ( const ACE_TCHAR UUID)
CORBA::StringSeq * DAnCE::RepositoryManagerDaemon_i::getAllNames ( )
CORBA::StringSeq * DAnCE::RepositoryManagerDaemon_i::getAllTypes ( )
int DAnCE::RepositoryManagerDaemon_i::HTTP_Get ( const ACE_TCHAR URL,
ACE_Message_Block mb
) [protected]

Function to retrieve a file via HTTP stores the file in the passed preallocated ACE_Message_Block

Return values:
1success
0error
void DAnCE::RepositoryManagerDaemon_i::installPackage ( const ACE_TCHAR installationName,
const ACE_TCHAR location,
::CORBA::Boolean  replace
) [virtual]
int DAnCE::RepositoryManagerDaemon_i::remove_descriptor_files ( ACE_TCHAR package) [protected]

Function to remove the files extracted for parsing the PackageConfiguration descriptor and populating the idl struct. It reads the names of the files from the package. They correspond to the names on disk.

Return values:
1on success
0on error
int DAnCE::RepositoryManagerDaemon_i::remove_extracted_package ( const ACE_TCHAR package_path) [protected]

Function to remove the files extracted from the package upon istallation It reads the names of the files from the package. They correspond to the names on disk. It deletes each file, then it deletes the directories that contain them.

Note:
extraction location is path/*archive_name
int DAnCE::RepositoryManagerDaemon_i::remove_type ( ::Deployment::PackageConfiguration pc,
const ACE_TCHAR name
) [protected]

Function to remove the interface type of the component being removed from the interface map

Return values:
1on success
0on error
Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::retrieve_PC_from_descriptors ( const ACE_TCHAR pc_name,
const ACE_TCHAR descriptor_dir
) [protected]

Function to parse and return the PackageConfiguration from the already extracted descriptor files

Deployment::PackageConfiguration * DAnCE::RepositoryManagerDaemon_i::retrieve_PC_from_package ( ACE_TCHAR package) [protected]

Function to parse and return the PackageConfiguration from a specified package

void DAnCE::RepositoryManagerDaemon_i::save ( void  ) [protected]

Function to save the package info of the RepositoryManager.

void DAnCE::RepositoryManagerDaemon_i::shutdown ( ) [virtual]

Member Data Documentation

Will hold the current working directory.

Location of the server.

Directory where the packages will be stored locally.

Full path for the install directory.

A hash map that associates the names of PackageConfigurations with their location

The ORB.

a hash map which associates Component Interface UUIDs with their implementations

a hash map that associates the UUIDs of PackageConfigurations with their location


The documentation for this class was generated from the following files:
