TAO::DII_Invocation_Adapter Class Reference

Generic interface for the DII invocation object visible. More...

#include <DII_Invocation_Adapter.h>

Inheritance diagram for TAO::DII_Invocation_Adapter:
Inheritance graph

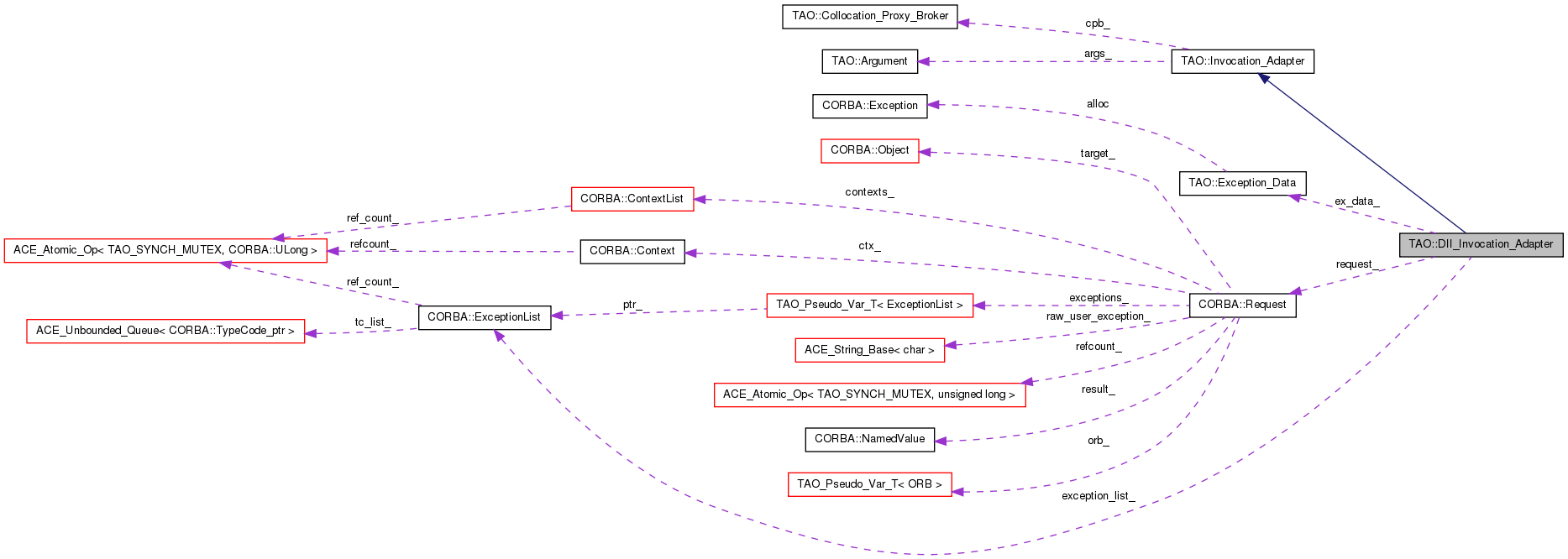

Collaboration diagram for TAO::DII_Invocation_Adapter:
Collaboration graph

List of all members.

Public Member Functions

 DII_Invocation_Adapter (CORBA::Object *target, Argument **args, int arg_number, const char *operation, size_t op_len, CORBA::ExceptionList *exception, CORBA::Request *r, Invocation_Mode mode=TAO_DII_INVOCATION)
virtual ~DII_Invocation_Adapter (void)
virtual void invoke (TAO::Exception_Data *ex, unsigned long ex_count)
 Invoke the target.

Protected Member Functions

virtual Invocation_Status invoke_twoway (TAO_Operation_Details &op, CORBA::Object_var &effective_target, Profile_Transport_Resolver &r, ACE_Time_Value *&max_wait_time)
virtual Invocation_Status invoke_collocated_i (TAO_Stub *stub, TAO_Operation_Details &details, CORBA::Object_var &effective_target, Collocation_Strategy strat)

Private Member Functions

 DII_Invocation_Adapter (void)
 Dont allow default initializations.
 DII_Invocation_Adapter (const DII_Invocation_Adapter &)
DII_Invocation_Adapteroperator= (const DII_Invocation_Adapter &)

Private Attributes

TAO::Exception_Data * ex_data_

Detailed Description

Generic interface for the DII invocation object visible.

Constructor & Destructor Documentation

tmp doxygen ACE_wrappers TAO tao DynamicInterface DII_Invocation_Adapter cpp tmp doxygen ACE_wrappers TAO tao DynamicInterface DII_Invocation_Adapter cpp tmp doxygen ACE_wrappers TAO tao DynamicInterface DII_Invocation_Adapter cpp TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( CORBA::Object target,
Argument **  args,
int  arg_number,
const char *  operation,
size_t  op_len,
CORBA::ExceptionList exception,
CORBA::Request r,
Invocation_Mode  mode = TAO_DII_INVOCATION

The only constructor used by the IDL compiler and only way to create this adapter.

targetPoints to the object on which this invocation is being invoked.
argsArray of pointers to the argument list in the operation declaration. this includes the return, inout and out arguments.
arg_numberNumber of arguments in the above array. This is the number of elements in the above array.
operationThe name of the operation being invoked.
op_lenNumber of characters in the operation name. This is an optimization which helps us to avoid calling strlen () while creating a message format.
modeInvocation mode. This information is also available in the IDL file and in the generated code.
TAO::DII_Invocation_Adapter::~DII_Invocation_Adapter ( void  ) [virtual]
TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( void  ) [private]

Dont allow default initializations.

TAO::DII_Invocation_Adapter::DII_Invocation_Adapter ( const DII_Invocation_Adapter ) [private]

Member Function Documentation

void TAO::DII_Invocation_Adapter::invoke ( TAO::Exception_Data *  ex,
unsigned long  ex_count
) [virtual]

Invoke the target.

Reimplemented from TAO::Invocation_Adapter.

Invocation_Status TAO::DII_Invocation_Adapter::invoke_collocated_i ( TAO_Stub stub,
TAO_Operation_Details details,
CORBA::Object_var effective_target,
Collocation_Strategy  strat
) [protected, virtual]

Reimplemented from TAO::Invocation_Adapter.

Invocation_Status TAO::DII_Invocation_Adapter::invoke_twoway ( TAO_Operation_Details op,
CORBA::Object_var effective_target,
Profile_Transport_Resolver r,
ACE_Time_Value *&  max_wait_time
) [protected, virtual]

Reimplemented from TAO::Invocation_Adapter.

DII_Invocation_Adapter& TAO::DII_Invocation_Adapter::operator= ( const DII_Invocation_Adapter ) [private]

Member Data Documentation

TAO::Exception_Data* TAO::DII_Invocation_Adapter::ex_data_ [private]
CORBA::ExceptionList* TAO::DII_Invocation_Adapter::exception_list_ [private]
CORBA::Request* TAO::DII_Invocation_Adapter::request_ [private]

The documentation for this class was generated from the following files:
