TAO::Invocation_Base Class Reference

The base class for the invocation object. More...

#include <Invocation_Base.h>

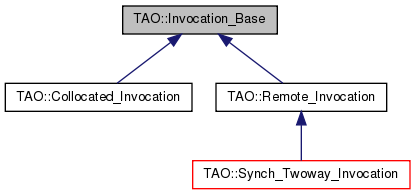

Inheritance diagram for TAO::Invocation_Base:
Inheritance graph
[legend]

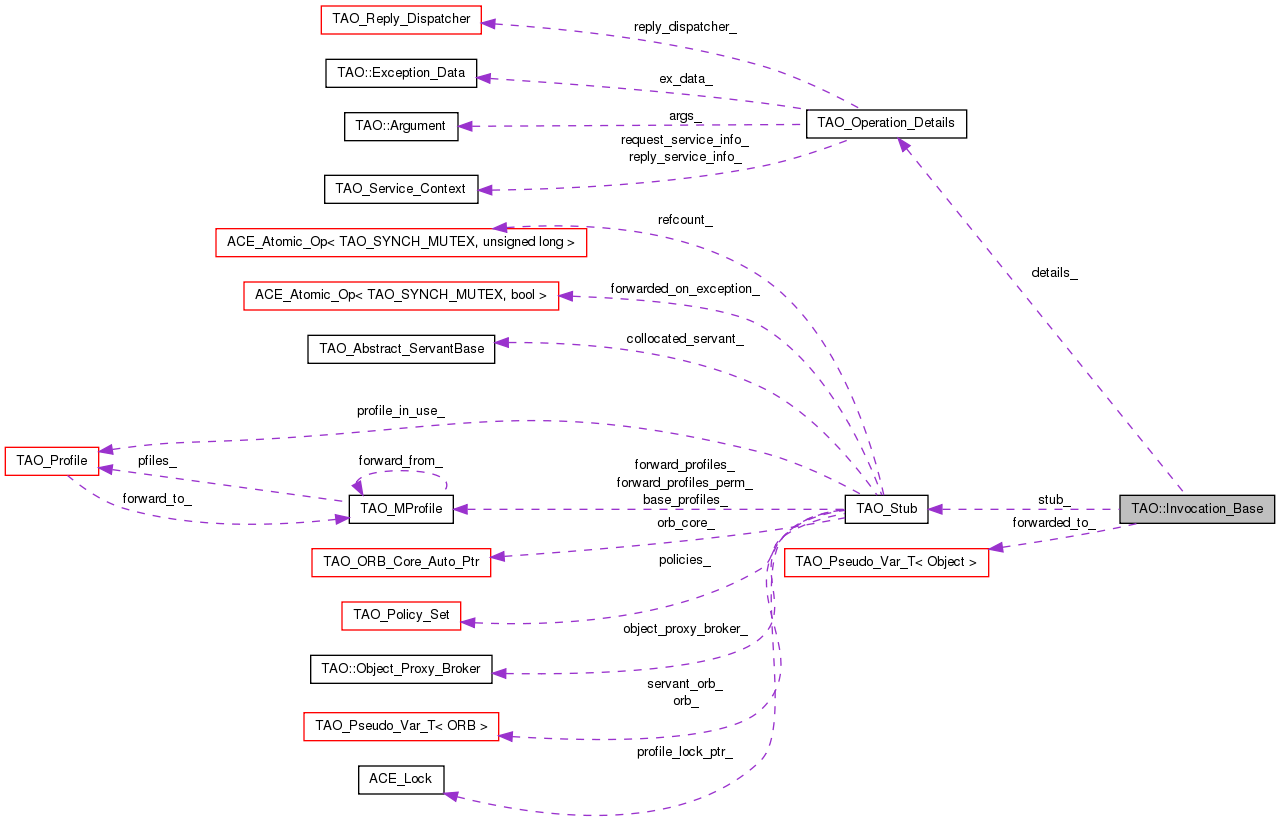

Collaboration diagram for TAO::Invocation_Base:
Collaboration graph
[legend]

List of all members.

Public Member Functions

virtual ~Invocation_Base (void)
TAO_Stubstub (void) const
 Accessor and mutator methods.
CORBA::Object_ptr forwarded_reference (void)
void forwarded_reference (CORBA::Object_ptr o)
 Accessor and mutator methods.
TAO_Service_Contextrequest_service_context (void)
 Accessors for the service context list.
TAO_Service_Contextreply_service_context (void)
 Accessor and mutator methods.
CORBA::Object_ptr steal_forwarded_reference (void)
 Return the forwarded object location by loosing ownership.
CORBA::Object_ptr effective_target (void) const
 Return the effective target of the invocation.
CORBA::Object_ptr target (void) const
 Return the target object.
CORBA::Boolean response_expected (void) const
 Does this invocation return a response?
GIOP::ReplyStatusType reply_status (void) const
 Accessor of reply_status of the invocation.
void reply_status (GIOP::ReplyStatusType s)
 Mutator of reply_status of the invocation.
TAO_Operation_Detailsoperation_details (void)
 The operaton details of the invocation.

Protected Member Functions

 Invocation_Base (CORBA::Object_ptr otarget, CORBA::Object_ptr target, TAO_Stub *stub, TAO_Operation_Details &op, bool response_expected, bool request_is_remote)

Protected Attributes

TAO_Operation_Detailsdetails_
 The operation details on which we are operating on.
CORBA::Object_var forwarded_to_
 Forwarded object reference.
bool response_expected_
 Is response expected?
GIOP::ReplyStatusType reply_status_
 A GIOP reply status of the invocation.

Private Member Functions

 Invocation_Base (const Invocation_Base &)
Invocation_Baseoperator= (const Invocation_Base &)

Private Attributes

TAO_Stubstub_
CORBA::Object_ptr otarget_
 The original target on which the invocation was started.
CORBA::Object_ptr target_
 The effective target on which the invocation is on.

Detailed Description

The base class for the invocation object.

This class is the base of the invocation object hierarchy. This hierarchy is classified based on the type of invocation and the mode of invocation. One of the objects from the hierarchy is created on the stack for every invocation.

In addition this class encapsulates the essential details that are required for PortableInterceptors to function correctly. Further this class also provides some helper and accessor methods that are used by clients.


Constructor & Destructor Documentation

TAO::Invocation_Base::~Invocation_Base ( void  ) [virtual]
TAO::Invocation_Base::Invocation_Base ( CORBA::Object_ptr  otarget,
CORBA::Object_ptr  target,
TAO_Stub stub,
TAO_Operation_Details op,
bool  response_expected,
bool  request_is_remote
) [protected]
Parameters:
otargetThe original target on which this invocation was started.
targetthe target on which this invocation is flowing ie. the effective target
opoperation details of the invocation on target
response_expectedflag to indicate whether the operation encapsulated by op returns a response or not.
TAO::Invocation_Base::Invocation_Base ( const Invocation_Base ) [private]

Member Function Documentation

CORBA::Object_ptr TAO::Invocation_Base::effective_target ( void  ) const

Return the effective target of the invocation.

Please see the PortableInterceptor specification in the CORBA spec to understand what effective target means.

CORBA::Object_ptr TAO::Invocation_Base::forwarded_reference ( void  )

Accessor and mutator methods for forwarded object locations. These access methods have to be public so that the PortableInterceptor can use them

void TAO::Invocation_Base::forwarded_reference ( CORBA::Object_ptr  o)

Accessor and mutator methods.

TAO_Operation_Details & TAO::Invocation_Base::operation_details ( void  )

The operaton details of the invocation.

Invocation_Base& TAO::Invocation_Base::operator= ( const Invocation_Base ) [private]
TAO_Service_Context & TAO::Invocation_Base::reply_service_context ( void  )

Accessor and mutator methods.

GIOP::ReplyStatusType TAO::Invocation_Base::reply_status ( void  ) const

Accessor of reply_status of the invocation.

void TAO::Invocation_Base::reply_status ( GIOP::ReplyStatusType  s)

Mutator of reply_status of the invocation.

TAO_Service_Context & TAO::Invocation_Base::request_service_context ( void  )

Accessors for the service context list.

The service context lists are actually cached elsewhere. Providing this accessor helps the PI to access this list in both remote and collocated mode.

CORBA::Boolean TAO::Invocation_Base::response_expected ( void  ) const

Does this invocation return a response?

CORBA::Object_ptr TAO::Invocation_Base::steal_forwarded_reference ( void  )

Return the forwarded object location by loosing ownership.

TAO_Stub * TAO::Invocation_Base::stub ( void  ) const

Accessor and mutator methods.

CORBA::Object_ptr TAO::Invocation_Base::target ( void  ) const

Return the target object.


Member Data Documentation

TAO_Operation_Details& TAO::Invocation_Base::details_ [protected]

The operation details on which we are operating on.

CORBA::Object_var TAO::Invocation_Base::forwarded_to_ [protected]

Forwarded object reference.

CORBA::Object_ptr TAO::Invocation_Base::otarget_ [private]

The original target on which the invocation was started.

The following object reference pointers are *not* duplicated. They are cached for portable interceptors, and they just live for the lifetime of the request. Hence there is no point in duplicating the pointers.

GIOP::ReplyStatusType TAO::Invocation_Base::reply_status_ [protected]

A GIOP reply status of the invocation.

bool TAO::Invocation_Base::response_expected_ [protected]

Is response expected?

TAO_Stub* TAO::Invocation_Base::stub_ [private]
CORBA::Object_ptr TAO::Invocation_Base::target_ [private]

The effective target on which the invocation is on.


The documentation for this class was generated from the following files:
