Public Member Functions | Protected Attributes

TAO_AV_Protocol_Object Class Reference

#include <Protocol_Factory.h>

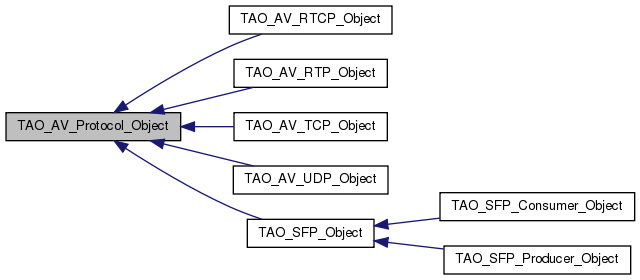

Inheritance diagram for TAO_AV_Protocol_Object:
Inheritance graph

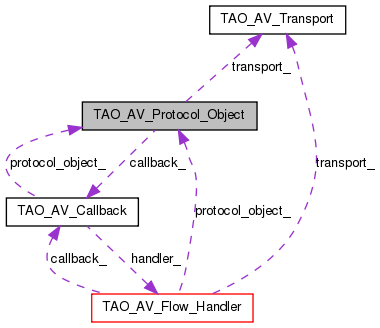

Collaboration diagram for TAO_AV_Protocol_Object:
Collaboration graph

List of all members.

Public Member Functions

 TAO_AV_Protocol_Object (void)
 TAO_AV_Protocol_Object (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual ~TAO_AV_Protocol_Object (void)
virtual int open (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual int handle_input (void)=0
virtual int handle_control_input (ACE_Message_Block *control_frame, const ACE_Addr &peer_address)
 Called on a control object.
virtual int set_policies (const TAO_AV_PolicyList &policy_list)
 set/get policies.
virtual TAO_AV_PolicyList get_policies (void)
virtual int start (void)
 start/stop the flow.
virtual int stop (void)
virtual int send_frame (ACE_Message_Block *frame, TAO_AV_frame_info *frame_info=0)=0
 send a data frame.
virtual int send_frame (const iovec *iov, int iovcnt, TAO_AV_frame_info *frame_info=0)=0
 send a frame in iovecs.
virtual int send_frame (const char *buf, size_t len)=0
virtual void control_object (TAO_AV_Protocol_Object *object)
 end the stream.
virtual int destroy (void)=0
TAO_AV_Transporttransport (void)

Protected Attributes

TAO_AV_PolicyList policy_list_

Constructor & Destructor Documentation

TAO_AV_Protocol_Object::TAO_AV_Protocol_Object ( void   )
TAO_AV_Protocol_Object::TAO_AV_Protocol_Object ( TAO_AV_Callback callback,
TAO_AV_Transport transport


TAO_AV_Protocol_Object::~TAO_AV_Protocol_Object ( void   ) [virtual]


Member Function Documentation

void TAO_AV_Protocol_Object::control_object ( TAO_AV_Protocol_Object object ) [virtual]

end the stream.

Reimplemented in TAO_AV_RTP_Object.

virtual int TAO_AV_Protocol_Object::destroy ( void   ) [pure virtual]
TAO_AV_PolicyList TAO_AV_Protocol_Object::get_policies ( void   ) [virtual]
int TAO_AV_Protocol_Object::handle_control_input ( ACE_Message_Block control_frame,
const ACE_Addr peer_address
) [virtual]

Called on a control object.

Reimplemented in TAO_AV_RTCP_Object.

virtual int TAO_AV_Protocol_Object::handle_input ( void   ) [pure virtual]
int TAO_AV_Protocol_Object::open ( TAO_AV_Callback callback,
TAO_AV_Transport transport
) [virtual]
virtual int TAO_AV_Protocol_Object::send_frame ( const iovec *  iov,
int  iovcnt,
TAO_AV_frame_info frame_info = 0
) [pure virtual]
virtual int TAO_AV_Protocol_Object::send_frame ( ACE_Message_Block frame,
TAO_AV_frame_info frame_info = 0
) [pure virtual]
virtual int TAO_AV_Protocol_Object::send_frame ( const char *  buf,
size_t  len
) [pure virtual]
int TAO_AV_Protocol_Object::set_policies ( const TAO_AV_PolicyList policy_list ) [virtual]

set/get policies.

Reimplemented in TAO_AV_RTCP_Object, TAO_AV_RTP_Object, and TAO_SFP_Object.

int TAO_AV_Protocol_Object::start ( void   ) [virtual]

start/stop the flow.

Reimplemented in TAO_AV_RTCP_Object, and TAO_AV_RTP_Object.

int TAO_AV_Protocol_Object::stop ( void   ) [virtual]

Reimplemented in TAO_AV_RTCP_Object, and TAO_AV_RTP_Object.

TAO_AV_Transport * TAO_AV_Protocol_Object::transport ( void   )

Member Data Documentation

The documentation for this class was generated from the following files:
