DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application > Class Template Reference

This class launches and manages deployment plans. More...

#include <Plan_Launcher_Base_Impl_T.h>

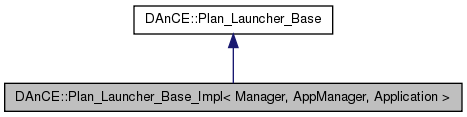

Inheritance diagram for DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >:

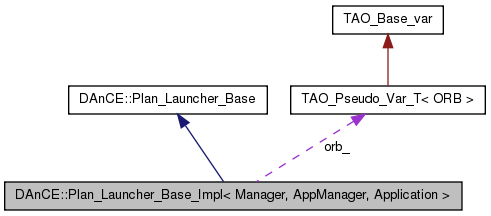

Collaboration diagram for DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >:

List of all members.

Public Member Functions
	Plan_Launcher_Base_Impl (CORBA::ORB_ptr orb, Manager_ptr manager)
virtual	~Plan_Launcher_Base_Impl ()
virtual const char *	launch_plan (const ::Deployment::DeploymentPlan &plan, CORBA::Object_out am, CORBA::Object_out app)
	Launch a plan, given an IDL deployment plan.
virtual CORBA::Object_ptr	prepare_plan (const ::Deployment::DeploymentPlan &plan)
virtual CORBA::Object_ptr	start_launch (CORBA::Object_ptr app_mgr, const ::Deployment::Properties &properties,::Deployment::Connections_out connections)
	Invokes startLaunch on the provided ApplicationManager reference.
virtual void	finish_launch (CORBA::Object_ptr app, const ::Deployment::Connections &provided_connections, bool start)
	Invokes finishLaunch on the provided Application reference.
virtual void	start (CORBA::Object_ptr application)
	Invokes start on the provided application reference.
virtual void	teardown_application (CORBA::Object_ptr app_mgr, CORBA::Object_ptr app)
	Tears down a plan given the UUID.
virtual void	destroy_app_manager (CORBA::Object_ptr)
	Instructs the Manager to destroy the ApplicationManager.
virtual void	create_external_connections (const ::Deployment::DeploymentPlan &plan, Deployment::Connections &conn)
	Helper method to resolve externalReference endpoints into valid object references.
Protected Types
typedef Manager::_ptr_type	Manager_ptr
typedef Manager::_var_type	Manager_var
typedef AppManager::_ptr_type	AppManager_ptr
typedef AppManager::_var_type	AppManager_var
typedef Application::_ptr_type	Application_ptr
typedef Application::_var_type	Application_var
Protected Attributes
CORBA::ORB_var	orb_
	Cached ORB pointer.
Manager_var	manager_
	Object reference of the Manager.

---

Detailed Description

template<typename Manager, typename AppManager, typename Application>
class DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >

This class launches and manages deployment plans.

---

Member Typedef Documentation

template<typename Manager, typename AppManager, typename Application>

typedef Application::_ptr_type DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::Application_ptr [protected]

template<typename Manager, typename AppManager, typename Application>

typedef Application::_var_type DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::Application_var [protected]

template<typename Manager, typename AppManager, typename Application>

typedef AppManager::_ptr_type DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::AppManager_ptr [protected]

template<typename Manager, typename AppManager, typename Application>

typedef AppManager::_var_type DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::AppManager_var [protected]

template<typename Manager, typename AppManager, typename Application>

typedef Manager::_ptr_type DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::Manager_ptr [protected]

template<typename Manager, typename AppManager, typename Application>

typedef Manager::_var_type DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::Manager_var [protected]

---

Constructor & Destructor Documentation

template<typename Manager , typename AppManager , typename Application >

DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::Plan_Launcher_Base_Impl	(	CORBA::ORB_ptr	orb,
		Manager_ptr	manager
	)

template<typename Manager , typename AppManager , typename Application >

DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::~Plan_Launcher_Base_Impl

(

)

[virtual]

---

Member Function Documentation

template<typename Manager , typename AppManager , typename Application >

void DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::create_external_connections	(	const ::Deployment::DeploymentPlan &	plan,
		Deployment::Connections &	conn
	)			[virtual]

Helper method to resolve externalReference endpoints into valid object references.

Implements DAnCE::Plan_Launcher_Base.

template<typename Manager , typename AppManager , typename Application >

void DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::destroy_app_manager

(

CORBA::Object_ptr

app_mgr

)

[virtual]

Instructs the Manager to destroy the ApplicationManager.

Implements DAnCE::Plan_Launcher_Base.

template<typename Manager , typename AppManager , typename Application >

void DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::finish_launch	(	CORBA::Object_ptr	application,
		const ::Deployment::Connections &	provided_connections,
		bool	start
	)			[virtual]

Invokes finishLaunch on the provided Application reference.

Implements DAnCE::Plan_Launcher_Base.

template<typename Manager , typename AppManager , typename Application >

const char * DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::launch_plan	(	const ::Deployment::DeploymentPlan &	plan,
		CORBA::Object_out	am,
		CORBA::Object_out	app
	)			[virtual]

Launch a plan, given an IDL deployment plan.

Parameters:

plan

A valid IDL deployment plan

Returns:

a string containing the UUID of the plan. Null indicates failure.

Implements DAnCE::Plan_Launcher_Base.

template<typename Manager , typename AppManager , typename Application >

CORBA::Object_ptr DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::prepare_plan

(

const ::Deployment::DeploymentPlan &

plan

)

[virtual]

Invokes prepareplan for the provided plan, returning a reference to the ApplicationManager.

Implements DAnCE::Plan_Launcher_Base.

template<typename Manager , typename AppManager , typename Application >

void DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::start

(

CORBA::Object_ptr

application

)

[virtual]

Invokes start on the provided application reference.

Implements DAnCE::Plan_Launcher_Base.

template<typename Manager , typename AppManager , typename Application >

CORBA::Object_ptr DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::start_launch	(	CORBA::Object_ptr	app_mgr,
		const ::Deployment::Properties &	properties,
		::Deployment::Connections_out	connections
	)			[virtual]

Invokes startLaunch on the provided ApplicationManager reference.

Implements DAnCE::Plan_Launcher_Base.

template<typename Manager , typename AppManager , typename Application >

void DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::teardown_application	(	CORBA::Object_ptr	app_mgr,
		CORBA::Object_ptr	app
	)			[virtual]

Tears down a plan given the UUID.

Implements DAnCE::Plan_Launcher_Base.

---

Member Data Documentation

template<typename Manager, typename AppManager, typename Application>

Manager_var DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::manager_ [protected]

Object reference of the Manager.

template<typename Manager, typename AppManager, typename Application>

CORBA::ORB_var DAnCE::Plan_Launcher_Base_Impl< Manager, AppManager, Application >::orb_ [protected]

Cached ORB pointer.

---

The documentation for this class was generated from the following files:

• Plan_Launcher_Base_Impl_T.h
• Plan_Launcher_Base_Impl_T.cpp
