Default server activator for CIAO component servers. More...

#include <LocalityActivator_Impl.h>

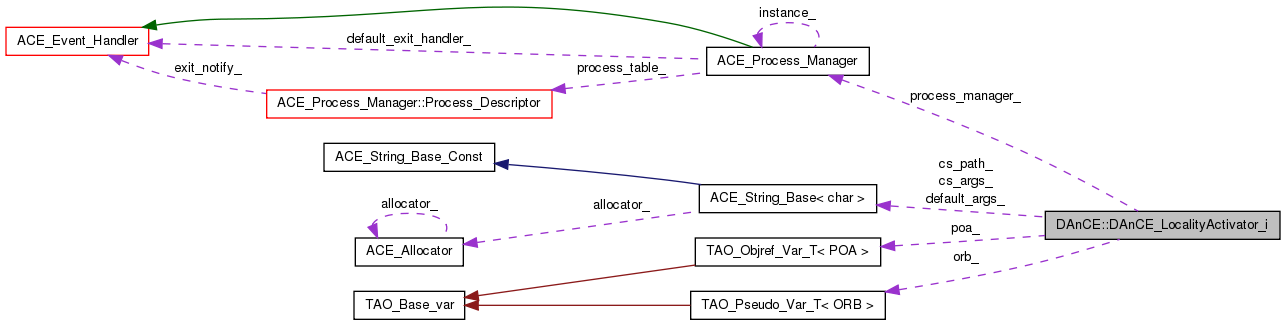

Collaboration diagram for DAnCE::DAnCE_LocalityActivator_i:

Classes
struct	_server_info
class	Server_Child_Handler
	The exit handler class for the locality manager child process to detect and report process exit. More...
struct	Server_Info
Public Member Functions
	DAnCE_LocalityActivator_i (CORBA::ULong def_spawn_delay, const char default_cs_path, const char cs_args, bool multithreaded, CORBA::ORB_ptr orb, PortableServer::POA_ptr poa_)
	Constructor.
virtual	~DAnCE_LocalityActivator_i (void)
	Destructor.
virtual void	locality_manager_callback (::DAnCE::LocalityManager_ptr serverref, const char *server_UUID,::Deployment::Properties_out config)
virtual void	configuration_complete (const char *server_UUID)
::DAnCE::LocalityManager_ptr	create_locality_manager (const ::Deployment::DeploymentPlan &plan, CORBA::ULong instanceRef, const ::Deployment::Properties &config)
void	remove_locality_manager (::DAnCE::LocalityManager_ptr server)
::DAnCE::LocalityManager *	get_locality_managers (void)
Private Types
typedef ACE_Refcounted_Auto_Ptr < Server_Info, ACE_Null_Mutex >	Safe_Server_Info
typedef std::set < Safe_Server_Info, _server_info >	SERVER_INFOS
Private Member Functions
ACE_CString	construct_command_line (Server_Info &si)
pid_t	spawn_locality_manager (Server_Child_Handler *exit_handler, const ACE_CString &cmd_line)
void	single_threaded_wait_for_callback (const Server_Info &si, ACE_Time_Value &timeout)
void	multi_threaded_wait_for_callback (Server_Info &si, ACE_Time_Value &timeout)
void	create_properties (const Server_Info &info, Deployment::Properties_out config)
Private Attributes
ACE_CString	default_args_
	Default args to pass to all componentservers.
TAO_SYNCH_MUTEX	container_mutex_
SERVER_INFOS	server_infos_
ACE_Process_Manager	process_manager_
CORBA::ULong	spawn_delay_
bool	multithreaded_
CORBA::ORB_var	orb_
PortableServer::POA_var	poa_
ACE_CString	cs_path_
ACE_CString	cs_args_
TAO_SYNCH_MUTEX	mutex_
ACE_Condition< TAO_SYNCH_MUTEX >	condition_

Detailed Description

Default server activator for CIAO component servers.

Author:: William R. Otte <wotte@dre.vanderbilt.edu> Implements the default component server activation strategy which is to spawn new processes. This is not thread-safe, nor is it intended to be. Containers are reated serially, so there will be only one actor *modifying* data at a particular point in time.

Member Typedef Documentation

typedef ACE_Refcounted_Auto_Ptr<Server_Info, ACE_Null_Mutex> DAnCE::DAnCE_LocalityActivator_i::Safe_Server_Info [private]

typedef std::set<Safe_Server_Info, _server_info> DAnCE::DAnCE_LocalityActivator_i::SERVER_INFOS [private]

Constructor & Destructor Documentation

DAnCE::DAnCE_LocalityActivator_i::DAnCE_LocalityActivator_i	(	CORBA::ULong	def_spawn_delay,
		const char *	default_cs_path,
		const char *	cs_args,
		bool	multithreaded,
		CORBA::ORB_ptr	orb,
		PortableServer::POA_ptr	poa_
	)

Constructor.

DAnCE::DAnCE_LocalityActivator_i::~DAnCE_LocalityActivator_i ( void ) [virtual]

Destructor.

Member Function Documentation

void DAnCE::DAnCE_LocalityActivator_i::configuration_complete ( const char * server_UUID ) [virtual]

ACE_CString DAnCE::DAnCE_LocalityActivator_i::construct_command_line ( Server_Info & si ) [private]

Builds command line options based on configuration information. May modify the uuid of the component server.

DAnCE::LocalityManager_ptr DAnCE::DAnCE_LocalityActivator_i::create_locality_manager	(	const ::Deployment::DeploymentPlan &	plan,
		CORBA::ULong	instanceRef,
		const ::Deployment::Properties &	config
	)

void DAnCE::DAnCE_LocalityActivator_i::create_properties	(	const Server_Info &	info,
		Deployment::Properties_out	config
	)			`[private]`

::DAnCE::LocalityManager* DAnCE::DAnCE_LocalityActivator_i::get_locality_managers ( void )

void DAnCE::DAnCE_LocalityActivator_i::locality_manager_callback	(	::DAnCE::LocalityManager_ptr	serverref,
		const char *	server_UUID,
		::Deployment::Properties_out	config
	)			`[virtual]`

void DAnCE::DAnCE_LocalityActivator_i::multi_threaded_wait_for_callback	(	Server_Info &	si,
		ACE_Time_Value &	timeout
	)			`[private]`

This method is only applicable when our program is configured as multiple threaded. Internally it waits on a conditional variable that could be modified by the callback servant which runs in another thread

void DAnCE::DAnCE_LocalityActivator_i::remove_locality_manager ( ::DAnCE::LocalityManager_ptr server )

void DAnCE::DAnCE_LocalityActivator_i::single_threaded_wait_for_callback	(	const Server_Info &	si,
		ACE_Time_Value &	timeout
	)			`[private]`

This method is only applicable when our program is configured as singled threaded . Internally it uses a perform_work blocking call to wait for NA object to call back
