ACE_Lock_Adapter< ACE_LOCKING_MECHANISM > Class Template Reference

This is an adapter that allows applications to transparently combine the <ACE_Lock> abstract base class (which contains pure virtual methods) with any of the other concrete ACE synchronization classes (e.g., ACE_Mutex, ACE_Semaphore, ACE_RW_Mutex, etc.). More...

#include <Lock_Adapter_T.h>

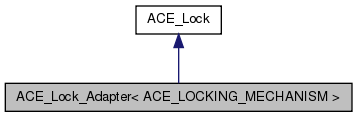

Inheritance diagram for ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >:
Inheritance graph
[legend]

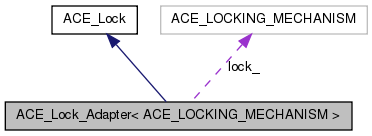

Collaboration diagram for ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >:
Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_LOCKING_MECHANISM ACE_LOCK

Public Member Functions

 ACE_Lock_Adapter (ACE_LOCKING_MECHANISM &lock)
 Constructor. All locking requests will be forwarded to lock.
 ACE_Lock_Adapter (void)
virtual ~ACE_Lock_Adapter (void)
virtual int acquire (void)
 Block the thread until the lock is acquired.
virtual int tryacquire (void)
 Conditionally acquire the lock (i.e., won't block).
virtual int release (void)
 Release the lock.
virtual int acquire_read (void)
virtual int acquire_write (void)
virtual int tryacquire_read (void)
virtual int tryacquire_write (void)
virtual int tryacquire_write_upgrade (void)
virtual int remove (void)
 Explicitly destroy the lock.

Private Attributes

ACE_LOCKING_MECHANISM * lock_
 The concrete locking mechanism that all the methods delegate to.
bool delete_lock_

Detailed Description

template<class ACE_LOCKING_MECHANISM>
class ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >

This is an adapter that allows applications to transparently combine the <ACE_Lock> abstract base class (which contains pure virtual methods) with any of the other concrete ACE synchronization classes (e.g., ACE_Mutex, ACE_Semaphore, ACE_RW_Mutex, etc.).

This class uses a form of the Adapter pattern.


Member Typedef Documentation

template<class ACE_LOCKING_MECHANISM>
typedef ACE_LOCKING_MECHANISM ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_LOCK

Constructor & Destructor Documentation

template<class ACE_LOCKING_MECHANISM>
ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_Lock_Adapter ( ACE_LOCKING_MECHANISM &  lock  )  [inline]

Constructor. All locking requests will be forwarded to lock.

template<class ACE_LOCKING_MECHANISM>
ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::ACE_Lock_Adapter ( void   )

Constructor. Since no lock is provided by the user, one will be created internally.

template<class ACE_LOCKING_MECHANISM >
ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::~ACE_Lock_Adapter ( void   )  [virtual]

Destructor. If <lock_> was not passed in by the user, it will be deleted.


Member Function Documentation

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire ( void   )  [virtual]

Block the thread until the lock is acquired.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_read ( void   )  [virtual]

Block until the thread acquires a read lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::acquire_write ( void   )  [virtual]

Block until the thread acquires a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::release ( void   )  [virtual]

Release the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::remove ( void   )  [virtual]

Explicitly destroy the lock.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire ( void   )  [virtual]

Conditionally acquire the lock (i.e., won't block).

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_read ( void   )  [virtual]

Conditionally acquire a read lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write ( void   )  [virtual]

Conditionally acquire a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>.

Implements ACE_Lock.

template<class ACE_LOCKING_MECHANISM >
int ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::tryacquire_write_upgrade ( void   )  [virtual]

Conditionally try to upgrade a lock held for read to a write lock. If the locking mechanism doesn't support read locks then this just calls <acquire>. Returns 0 on success, -1 on failure.

Implements ACE_Lock.


Member Data Documentation

template<class ACE_LOCKING_MECHANISM>
bool ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::delete_lock_ [private]

This flag keep track of whether we are responsible for deleting the lock

template<class ACE_LOCKING_MECHANISM>
ACE_LOCKING_MECHANISM* ACE_Lock_Adapter< ACE_LOCKING_MECHANISM >::lock_ [private]

The concrete locking mechanism that all the methods delegate to.
