ACE_MEM_IO Class Reference

Defines the methods for the ACE shared memeory wrapper I/O routines (e.g., send/recv). The shared memory transport uses ACE_SOCK_* class to implement the signaling mechanism so we can easily use the new mechanism with the Reactor pattern (which uses select under the hood.) ACE_MEM_Acceptor and ACE_MEM_Connector are used to establish connections. When a connection is established, ACE_MEM_Acceptor creates the MMAP file for data exchange and sends the location of the file (complete path name) to ACE_MEM_Connector thru the socket. ACE_MEM_Connector then reads the location of the file off the socket and opens up the same MMAP file. ACE_MEM_Stream at each side then contains a reference to the ACE_Mallo object using the same MMAP file. When sending information using methods provided in this class, ACE_MEM_IO requests a chunk of memory from the MALLOC_TYPE object, copy the data into the shared memory and send the memory offset (from the start of the ACE_Malloc) across the socket. This action also servers as a signal to the other end. The receiving side then reverses the procedures and copies the information into user buffer. More...

#include <MEM_IO.h>

Inheritance diagram for ACE_MEM_IO:
Inheritance graph
[legend]

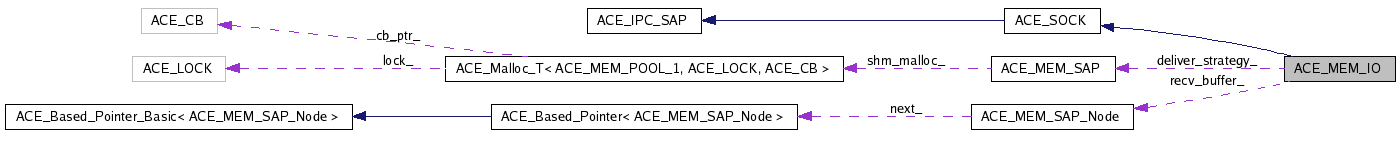

Collaboration diagram for ACE_MEM_IO:
Collaboration graph
[legend]

List of all members.

Public Types

enum  Signal_Strategy { Reactive, MT }

Public Member Functions

 ACE_MEM_IO (void)
 Constructor.
 ~ACE_MEM_IO (void)
 Destructor.
int init (const ACE_TCHAR *name, ACE_MEM_IO::Signal_Strategy type=ACE_MEM_IO::Reactive, ACE_MEM_SAP::MALLOC_OPTIONS *options=0)
int fini (void)
ssize_t send (const void *buf, size_t n, int flags)
ssize_t recv (void *buf, size_t n, int flags)
 Recv an n byte buffer from the shm_malloc_ thru connected socket.
ssize_t send (const void *buf, size_t n)
ssize_t recv (void *buf, size_t n)
 Recv an n byte buffer from the shm_malloc_ thru connected socket.
ssize_t send (const void *buf, size_t n, const ACE_Time_Value *timeout)
ssize_t send (const void *buf, size_t n, int flags, const ACE_Time_Value *timeout)
ssize_t send (const ACE_Message_Block *message_block, const ACE_Time_Value *timeout)
ssize_t recv (void *buf, size_t n, const ACE_Time_Value *timeout)
ssize_t recv (void *buf, size_t n, int flags, const ACE_Time_Value *timeout)
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Member Functions

ssize_t fetch_recv_buf (int flag, const ACE_Time_Value *timeout)

Private Attributes

ACE_MEM_SAPdeliver_strategy_
 Actual deliverying mechanism.
ACE_MEM_SAP_Noderecv_buffer_
 Internal pointer for support recv/send.
ssize_t buf_size_
 Record the current total buffer size of <recv_buffer_>.
ssize_t cur_offset_
 Record the current read pointer location in <recv_buffer_>.

Detailed Description

Defines the methods for the ACE shared memeory wrapper I/O routines (e.g., send/recv). The shared memory transport uses ACE_SOCK_* class to implement the signaling mechanism so we can easily use the new mechanism with the Reactor pattern (which uses select under the hood.) ACE_MEM_Acceptor and ACE_MEM_Connector are used to establish connections. When a connection is established, ACE_MEM_Acceptor creates the MMAP file for data exchange and sends the location of the file (complete path name) to ACE_MEM_Connector thru the socket. ACE_MEM_Connector then reads the location of the file off the socket and opens up the same MMAP file. ACE_MEM_Stream at each side then contains a reference to the ACE_Mallo object using the same MMAP file. When sending information using methods provided in this class, ACE_MEM_IO requests a chunk of memory from the MALLOC_TYPE object, copy the data into the shared memory and send the memory offset (from the start of the ACE_Malloc) across the socket. This action also servers as a signal to the other end. The receiving side then reverses the procedures and copies the information into user buffer.


Member Enumeration Documentation

Enumerator:
Reactive
MT

Constructor & Destructor Documentation

ACE_MEM_IO::ACE_MEM_IO ( void   )  [inline]

Constructor.

ACE_MEM_IO::~ACE_MEM_IO ( void   )  [inline]

Destructor.


Member Function Documentation

void ACE_MEM_IO::dump ( void   )  const

Dump the state of an object.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_MEM_Stream.

ssize_t ACE_MEM_IO::fetch_recv_buf ( int  flag,
const ACE_Time_Value timeout
) [inline, private]

Return the local endpoint port number. Returns 0 if successful, else -1.

int ACE_MEM_IO::fini ( void   )

Finalizing the MEM_IO object. This method doesn't invoke the <remove> method.

int ACE_MEM_IO::init ( const ACE_TCHAR name,
ACE_MEM_IO::Signal_Strategy  type = ACE_MEM_IO::Reactive,
ACE_MEM_SAP::MALLOC_OPTIONS options = 0
)

Initialize the MEM_SAP object.

ssize_t ACE_MEM_IO::recv ( void *  buf,
size_t  n,
int  flags,
const ACE_Time_Value timeout
) [inline]

Wait up to timeout amount of time to receive up to n bytes into buf from <handle> (uses the <recv> call). If <recv> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes received is returned.

ssize_t ACE_MEM_IO::recv ( void *  buf,
size_t  n,
const ACE_Time_Value timeout
) [inline]

Wait up to timeout amount of time to receive up to n bytes into buf from <handle> (uses the <recv> call). If <recv> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes received is returned.

ssize_t ACE_MEM_IO::recv ( void *  buf,
size_t  n
) [inline]

Recv an n byte buffer from the shm_malloc_ thru connected socket.

ssize_t ACE_MEM_IO::recv ( void *  buf,
size_t  n,
int  flags
) [inline]

Recv an n byte buffer from the shm_malloc_ thru connected socket.

ssize_t ACE_MEM_IO::send ( const ACE_Message_Block message_block,
const ACE_Time_Value timeout
)

Wait to to timeout amount of time to send the message_block. If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.

ssize_t ACE_MEM_IO::send ( const void *  buf,
size_t  n,
int  flags,
const ACE_Time_Value timeout
) [inline]

Wait to to timeout amount of time to send up to n bytes into buf from <handle> (uses the <send> call). If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.

ssize_t ACE_MEM_IO::send ( const void *  buf,
size_t  n,
const ACE_Time_Value timeout
) [inline]

Wait to to timeout amount of time to send up to n bytes into buf from <handle> (uses the <send> call). If <send> times out a -1 is returned with errno == ETIME. If it succeeds the number of bytes sent is returned.

ssize_t ACE_MEM_IO::send ( const void *  buf,
size_t  n
) [inline]

Send an n byte buffer to the other process using shm_malloc_ connected thru the socket.

ssize_t ACE_MEM_IO::send ( const void *  buf,
size_t  n,
int  flags
) [inline]

Send an n byte buffer to the other process using shm_malloc_ connected thru the socket.


Member Data Documentation

Declare the dynamic allocation hooks.

Reimplemented from ACE_SOCK.

Reimplemented in ACE_MEM_Stream.

Record the current total buffer size of <recv_buffer_>.

Record the current read pointer location in <recv_buffer_>.

Actual deliverying mechanism.

Internal pointer for support recv/send.


The documentation for this class was generated from the following files:
