ACE_MEM_Addr Class Reference

Defines a C++ wrapper facade for the shared memory transport address family format. More...

#include <MEM_Addr.h>

Inheritance diagram for ACE_MEM_Addr:
Inheritance graph
[legend]

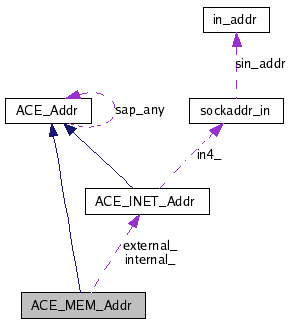

Collaboration diagram for ACE_MEM_Addr:
Collaboration graph
[legend]

List of all members.

Public Member Functions

 ACE_MEM_Addr (void)
 Default constructor.
 ACE_MEM_Addr (const ACE_MEM_Addr &)
 Copy constructor.
 ACE_MEM_Addr (u_short port_number)
 Creates an ACE_MEM_Addr from a port_number.
 ACE_MEM_Addr (const ACE_TCHAR port_name[])
 Creates an ACE_MEM_Addr from a port_name.
 ~ACE_MEM_Addr (void)
 Default dtor.
int initialize_local (u_short port)
 Default initialization routine.
int same_host (const ACE_INET_Addr &sap)
 Check if sap designates an endpoint on the same host.
int set (u_short port_number, int encode=1)
int set (const ACE_TCHAR port_name[])
virtual void * get_addr (void) const
 Return a pointer to the underlying network address.
virtual void set_addr (void *, int len)
 Set a pointer to the address.
virtual int addr_to_string (ACE_TCHAR buffer[], size_t size, int ipaddr_format=1) const
virtual int string_to_addr (const ACE_TCHAR address[])
 Initializes the external ACE_MEM_Addr from the address.
void set_port_number (u_short, int encode=1)
 Sets the port number.
u_short get_port_number (void) const
 Return the port number, converting it into host byte order.
int get_host_name (ACE_TCHAR hostname[], size_t hostnamelen) const
 Return the character representation of the hostname.
const char * get_host_name (void) const
const char * get_host_addr (void) const
 Return the "dotted decimal" external address.
ACE_UINT32 get_ip_address (void) const
const ACE_INET_Addrget_remote_addr (void) const
const ACE_INET_Addrget_local_addr (void) const
bool operator== (const ACE_MEM_Addr &SAP) const
bool operator== (const ACE_INET_Addr &SAP) const
bool operator!= (const ACE_MEM_Addr &SAP) const
 Compare two addresses for inequality.
bool operator!= (const ACE_INET_Addr &SAP) const
virtual u_long hash (void) const
 Computes and returns hash value.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ACE_INET_Addr external_
 External INET addr used for identifying host.
ACE_INET_Addr internal_
 Internal INET addr for accepting/connecting.

Detailed Description

Defines a C++ wrapper facade for the shared memory transport address family format.


Constructor & Destructor Documentation

ACE_MEM_Addr::ACE_MEM_Addr ( void   )

Default constructor.

ACE_MEM_Addr::ACE_MEM_Addr ( const ACE_MEM_Addr  )

Copy constructor.

ACE_MEM_Addr::ACE_MEM_Addr ( u_short  port_number  )

Creates an ACE_MEM_Addr from a port_number.

ACE_MEM_Addr::ACE_MEM_Addr ( const ACE_TCHAR  port_name[]  )  [explicit]

Creates an ACE_MEM_Addr from a port_name.

ACE_MEM_Addr::~ACE_MEM_Addr ( void   )

Default dtor.


Member Function Documentation

virtual int ACE_MEM_Addr::addr_to_string ( ACE_TCHAR  buffer[],
size_t  size,
int  ipaddr_format = 1
) const [virtual]

Transform the external ACE_MEM_Addr address into string format.

void ACE_MEM_Addr::dump ( void   )  const

Dump the state of an object.

Reimplemented from ACE_Addr.

virtual void* ACE_MEM_Addr::get_addr ( void   )  const [virtual]

Return a pointer to the underlying network address.

Reimplemented from ACE_Addr.

const char * ACE_MEM_Addr::get_host_addr ( void   )  const

Return the "dotted decimal" external address.

const char* ACE_MEM_Addr::get_host_name ( void   )  const

Return the character representation of the hostname (this version is non-reentrant since it returns a pointer to a static data area).

int ACE_MEM_Addr::get_host_name ( ACE_TCHAR  hostname[],
size_t  hostnamelen
) const

Return the character representation of the hostname.

ACE_UINT32 ACE_MEM_Addr::get_ip_address ( void   )  const

Return the 4-byte external IP address, converting it into host byte order.

const ACE_INET_Addr & ACE_MEM_Addr::get_local_addr ( void   )  const
u_short ACE_MEM_Addr::get_port_number ( void   )  const

Return the port number, converting it into host byte order.

const ACE_INET_Addr & ACE_MEM_Addr::get_remote_addr ( void   )  const
virtual u_long ACE_MEM_Addr::hash ( void   )  const [virtual]

Computes and returns hash value.

Reimplemented from ACE_Addr.

int ACE_MEM_Addr::initialize_local ( u_short  port  )

Default initialization routine.

bool ACE_MEM_Addr::operator!= ( const ACE_INET_Addr SAP  )  const
bool ACE_MEM_Addr::operator!= ( const ACE_MEM_Addr SAP  )  const

Compare two addresses for inequality.

Reimplemented from ACE_Addr.

bool ACE_MEM_Addr::operator== ( const ACE_INET_Addr SAP  )  const
bool ACE_MEM_Addr::operator== ( const ACE_MEM_Addr SAP  )  const

Compare two addresses for equality. The addresses are considered equal if they contain the same IP address and port number.

Reimplemented from ACE_Addr.

int ACE_MEM_Addr::same_host ( const ACE_INET_Addr sap  )

Check if sap designates an endpoint on the same host.

int ACE_MEM_Addr::set ( const ACE_TCHAR  port_name[]  )

Uses <getservbyname> to initialize an ACE_MEM_Addr from a <port_name>, the remote <host_name>, and the <protocol>.

int ACE_MEM_Addr::set ( u_short  port_number,
int  encode = 1
)

Initializes an ACE_MEM_Addr from a port_number. If encode is enabled then port_number is converted into network byte order, otherwise it is assumed to be in network byte order already and are passed straight through.

virtual void ACE_MEM_Addr::set_addr ( void *  ,
int  len
) [virtual]

Set a pointer to the address.

Reimplemented from ACE_Addr.

void ACE_MEM_Addr::set_port_number ( u_short  port_number,
int  encode = 1
)

Sets the port number.

virtual int ACE_MEM_Addr::string_to_addr ( const ACE_TCHAR  address[]  )  [virtual]

Initializes the external ACE_MEM_Addr from the address.


Member Data Documentation

Declare the dynamic allocation hooks.

Reimplemented from ACE_Addr.

External INET addr used for identifying host.

Internal INET addr for accepting/connecting.


The documentation for this class was generated from the following files:
