TAO_ESF_Proxy_RB_Tree< PROXY > Class Template Reference

Concrete Proxy collection based on ACE_RB_Tree. More...

#include <ESF_Proxy_RB_Tree.h>

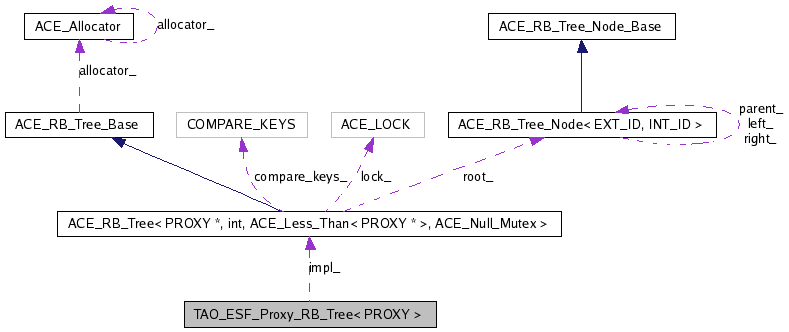

Collaboration diagram for TAO_ESF_Proxy_RB_Tree< PROXY >:

Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_RB_Tree< PROXY
*, int, ACE_Less_Than< PROXY * >
, ACE_Null_Mutex
Implementation
 A typedef for the underlying implementaiton class.
typedef
TAO_ESF_Proxy_RB_Tree_Iterator
< PROXY >
Iterator
 A typedef for the underlying iterator.

Public Member Functions

 TAO_ESF_Proxy_RB_Tree (void)
 Constructor.
TAO_ESF_Proxy_RB_Tree_Iterator
< PROXY >
begin (void)
TAO_ESF_Proxy_RB_Tree_Iterator
< PROXY >
end (void)
 Return one past the last element in the collection.
size_t size (void) const
 Return the number of elements in the collection.
void connected (PROXY *)
 Insert a new element to the collection.
void reconnected (PROXY *)
 Insert a new element that could be there already.
void disconnected (PROXY *)
 Remove an element from the collection.
void shutdown (void)

Private Attributes

Implementation impl_
 The underlying implementation object.


Detailed Description

template<class PROXY>
class TAO_ESF_Proxy_RB_Tree< PROXY >

Concrete Proxy collection based on ACE_RB_Tree.

The Event Service Framework provides several alternatives for the underlying proxy collections. This version is based on Red-Black trees that offer good insertion, removal and lookup performance, but the iteration is slightly degraded.


Member Typedef Documentation

template<class PROXY >
typedef ACE_RB_Tree<PROXY*,int,ACE_Less_Than<PROXY*>,ACE_Null_Mutex> TAO_ESF_Proxy_RB_Tree< PROXY >::Implementation

A typedef for the underlying implementaiton class.

template<class PROXY >
typedef TAO_ESF_Proxy_RB_Tree_Iterator<PROXY> TAO_ESF_Proxy_RB_Tree< PROXY >::Iterator

A typedef for the underlying iterator.


Constructor & Destructor Documentation

template<class PROXY >
TAO_ESF_Proxy_RB_Tree< PROXY >::TAO_ESF_Proxy_RB_Tree ( void   )  [inline]

Constructor.


Member Function Documentation

template<class PROXY >
TAO_ESF_Proxy_RB_Tree_Iterator< PROXY > TAO_ESF_Proxy_RB_Tree< PROXY >::begin ( void   )  [inline]

Return the first element in the collection, or end() if there are none

template<class PROXY >
void TAO_ESF_Proxy_RB_Tree< PROXY >::connected ( PROXY *  proxy  )  [inline]

Insert a new element to the collection.

template<class PROXY >
void TAO_ESF_Proxy_RB_Tree< PROXY >::disconnected ( PROXY *  proxy  )  [inline]

Remove an element from the collection.

template<class PROXY >
TAO_ESF_Proxy_RB_Tree_Iterator< PROXY > TAO_ESF_Proxy_RB_Tree< PROXY >::end ( void   )  [inline]

Return one past the last element in the collection.

template<class PROXY >
void TAO_ESF_Proxy_RB_Tree< PROXY >::reconnected ( PROXY *  proxy  )  [inline]

Insert a new element that could be there already.

template<class PROXY >
void TAO_ESF_Proxy_RB_Tree< PROXY >::shutdown ( void   )  [inline]

Shutdown the collection, i.e. remove all elements and release resources

template<class PROXY >
size_t TAO_ESF_Proxy_RB_Tree< PROXY >::size ( void   )  const [inline]

Return the number of elements in the collection.


Member Data Documentation

template<class PROXY >
Implementation TAO_ESF_Proxy_RB_Tree< PROXY >::impl_ [private]

The underlying implementation object.


The documentation for this class was generated from the following files:
