TAO_CEC_MT_Dispatching Class Reference

Dispatching strategy that minimizes mt inversion. More...

#include <CEC_MT_Dispatching.h>

Inheritance diagram for TAO_CEC_MT_Dispatching:

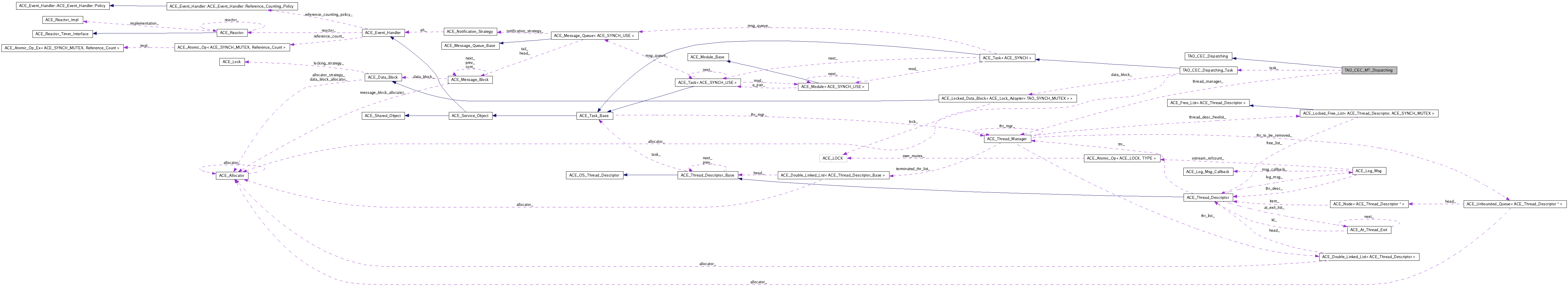

Collaboration diagram for TAO_CEC_MT_Dispatching:

List of all members.

Public Member Functions

TAO_CEC_MT_Dispatching (int nthreads, int thread_creation_flags, int thread_priority, int force_activate)

virtual void activate (void)

virtual void shutdown (void)

virtual void push (TAO_CEC_ProxyPushSupplier *proxy, const CORBA::Any &event)

The consumer represented by <proxy> should receive <event>.

virtual void push_nocopy (TAO_CEC_ProxyPushSupplier *proxy, CORBA::Any &event)

Private Attributes

ACE_Thread_Manager thread_manager_

Use our own thread manager.

int nthreads_

The number of active tasks.

int thread_creation_flags_

int thread_priority_

The priority of the dispatching threads.

int force_activate_

TAO_CEC_Dispatching_Task task_

The dispatching task.

TAO_SYNCH_MUTEX lock_

Synchronize access to internal data.

int active_

Are the threads running?

Detailed Description

Dispatching strategy that minimizes mt inversion.

This strategy uses a single queue, serviced by one or more threads. It's main purpose is to decouple the suppliers from the client execution time, specially in the collocated case.

Constructor & Destructor Documentation

TAO_CEC_MT_Dispatching::TAO_CEC_MT_Dispatching	(	int	nthreads,
		int	thread_creation_flags,
		int	thread_priority,
		int	force_activate
	)

Constructor It will create <nthreads> servicing threads...

Member Function Documentation

void TAO_CEC_MT_Dispatching::activate ( void ) [virtual]

Initialize all the data structures, activate any internal threads, etc.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push	(	TAO_CEC_ProxyPushSupplier *	proxy,
		const CORBA::Any &	event
	)			`[virtual]`

The consumer represented by <proxy> should receive <event>.

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::push_nocopy	(	TAO_CEC_ProxyPushSupplier *	proxy,
		CORBA::Any &	event
	)			`[virtual]`

Implements TAO_CEC_Dispatching.

void TAO_CEC_MT_Dispatching::shutdown ( void ) [virtual]

Deactivate any internal threads and cleanup internal data structures, it should only return once the threads have finished their jobs.

Implements TAO_CEC_Dispatching.

Member Data Documentation

int TAO_CEC_MT_Dispatching::active_ [private]

Are the threads running?

int TAO_CEC_MT_Dispatching::force_activate_ [private]

If activation at the requested priority fails then we fallback on the defaults for thread activation.

TAO_SYNCH_MUTEX TAO_CEC_MT_Dispatching::lock_ [private]

Synchronize access to internal data.

int TAO_CEC_MT_Dispatching::nthreads_ [private]

The number of active tasks.

TAO_CEC_Dispatching_Task TAO_CEC_MT_Dispatching::task_ [private]

The dispatching task.

int TAO_CEC_MT_Dispatching::thread_creation_flags_ [private]

The flags (THR_BOUND, THR_NEW_LWP, etc.) used to create the dispatching threads.

ACE_Thread_Manager TAO_CEC_MT_Dispatching::thread_manager_ [private]

Use our own thread manager.

int TAO_CEC_MT_Dispatching::thread_priority_ [private]

The priority of the dispatching threads.

The documentation for this class was generated from the following files:
