TAO_Notify::XML_Saver Class Reference

Save Notification Service Topology to an XML file. More...

#include <XML_Saver.h>

Inheritance diagram for TAO_Notify::XML_Saver:

[legend]

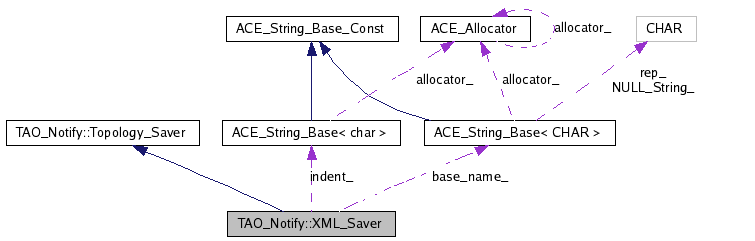

Collaboration diagram for TAO_Notify::XML_Saver:

[legend]

List of all members.

Public Member Functions
	XML_Saver (bool timestamp=true)
virtual	~XML_Saver ()
bool	open (const ACE_TString &file_name, size_t backup_count)
virtual bool	begin_object (CORBA::Long id, const ACE_CString &type, const NVPList &attrs, bool changed)
virtual void	end_object (CORBA::Long id, const ACE_CString &type)
virtual void	close (void)
	Close the saver.
Private Member Functions
void	backup_file_name (ACE_TCHAR *file_path, size_t nfile)
Private Attributes
FILE *	output_
	A stream representing our current output.
bool	close_out_
ACE_TString	base_name_
	the name of the output file
size_t	backup_count_
bool	timestamp_
	true to enable timestamping
ACE_CString	indent_
	A string consisting of spaces that is our current indentation level.

---

Detailed Description

Save Notification Service Topology to an XML file.

---

Constructor & Destructor Documentation

TAO_Notify::XML_Saver::XML_Saver

(

bool

timestamp = true

)

Construct an XML_Saver. Initialization is deferred to "open()"

TAO_Notify::XML_Saver::~XML_Saver

(

)

[virtual]

---

Member Function Documentation

void TAO_Notify::XML_Saver::backup_file_name	(	ACE_TCHAR *	file_path,
		size_t	nfile
	)			[private]

bool TAO_Notify::XML_Saver::begin_object	(	CORBA::Long	id,
		const ACE_CString &	type,
		const NVPList &	attrs,
		bool	changed
	)			[virtual]

void TAO_Notify::XML_Saver::close

(

void

)

[virtual]

Close the saver.

This is not pure virtual. The default implementation does nothing.

There should be a corresponding open, but the signature may vary based on the type of saver, so we can't include it in the interface.

Reimplemented from TAO_Notify::Topology_Saver.

void TAO_Notify::XML_Saver::end_object	(	CORBA::Long	id,
		const ACE_CString &	type
	)			[virtual]

bool TAO_Notify::XML_Saver::open	(	const ACE_TString &	file_name,
		size_t	backup_count
	)

Open the output file.

Parameters:

file_name

the fully qualified file name

Returns:

true if successful

---

Member Data Documentation

size_t TAO_Notify::XML_Saver::backup_count_ [private]

ACE_TString TAO_Notify::XML_Saver::base_name_ [private]

the name of the output file

bool TAO_Notify::XML_Saver::close_out_ [private]

ACE_CString TAO_Notify::XML_Saver::indent_ [private]

A string consisting of spaces that is our current indentation level.

FILE* TAO_Notify::XML_Saver::output_ [private]

A stream representing our current output.

bool TAO_Notify::XML_Saver::timestamp_ [private]

true to enable timestamping

---

The documentation for this class was generated from the following files:

• XML_Saver.h
• XML_Saver.cpp
