TAO_SFP_Object Class Reference

#include <sfp.h>

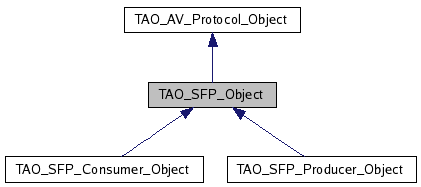

Inheritance diagram for TAO_SFP_Object:

[legend]

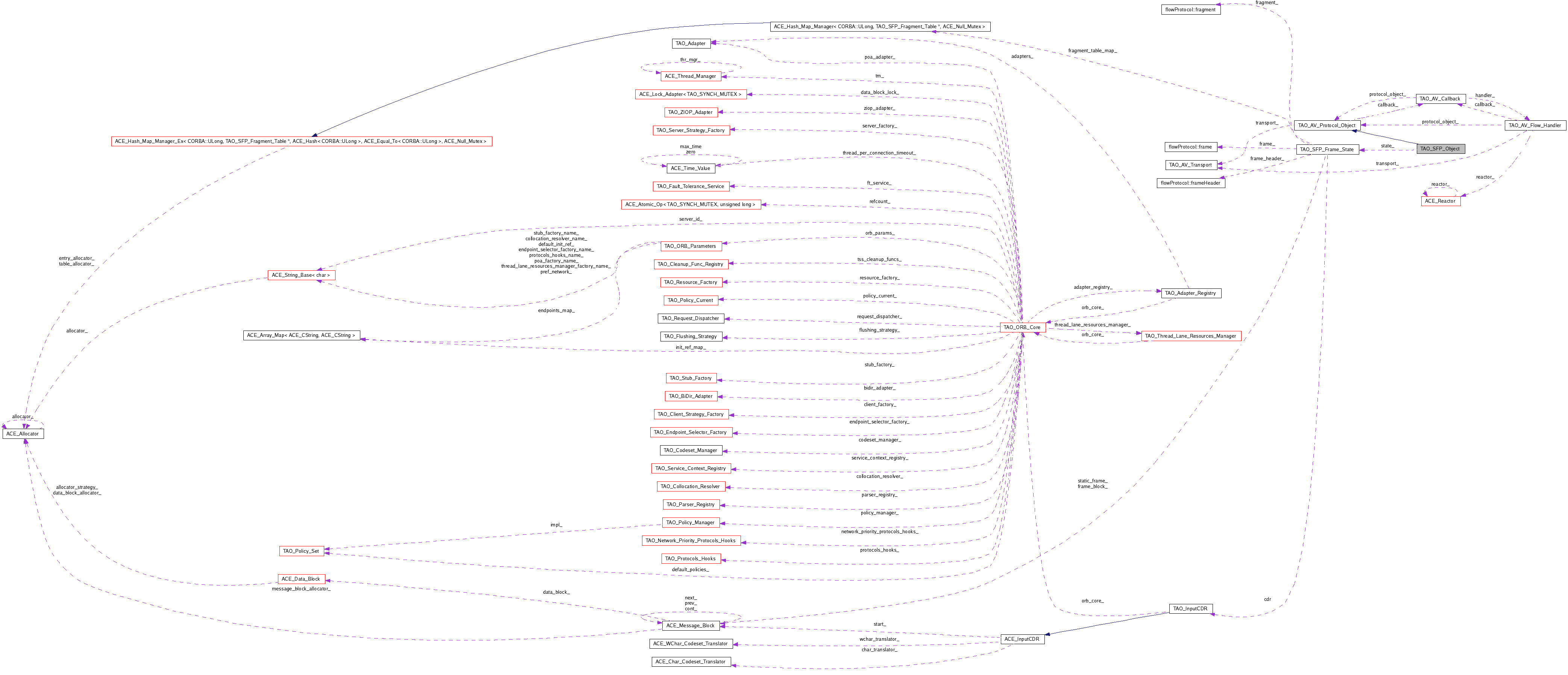

Collaboration diagram for TAO_SFP_Object:

[legend]

List of all members.

Public Member Functions
	TAO_SFP_Object (TAO_AV_Callback *callback, TAO_AV_Transport *transport)
virtual	~TAO_SFP_Object (void)
virtual int	handle_input (void)=0
virtual int	send_frame (ACE_Message_Block *frame, TAO_AV_frame_info *frame_info=0)
	send a data frame.
virtual int	send_frame (const iovec *iov, int iovcnt, TAO_AV_frame_info *frame_info=0)
	send a frame in iovecs.
virtual int	send_frame (const char *buf, size_t len)
virtual int	destroy (void)
virtual int	set_policies (const TAO_AV_PolicyList &policies)
	set/get policies.
Protected Member Functions
ACE_Message_Block *	get_fragment (ACE_Message_Block *&frame, size_t initial_len, size_t &last_mb_orig_len, size_t &last_mb_current_len)
Protected Attributes
CORBA::ULong	sequence_num_
CORBA::ULong	source_id_
CORBA::Long	max_credit_
CORBA::Long	current_credit_
TAO_SFP_Frame_State	state_

---

Constructor & Destructor Documentation

TAO_SFP_Object::TAO_SFP_Object	(	TAO_AV_Callback *	callback,
		TAO_AV_Transport *	transport
	)

TAO_SFP_Object::~TAO_SFP_Object

(

void

)

[virtual]

---

Member Function Documentation

int TAO_SFP_Object::destroy

(

void

)

[virtual]

Implements TAO_AV_Protocol_Object.

ACE_Message_Block * TAO_SFP_Object::get_fragment	(	ACE_Message_Block *&	frame,
		size_t	initial_len,
		size_t &	last_mb_orig_len,
		size_t &	last_mb_current_len
	)			[protected]

virtual int TAO_SFP_Object::handle_input

(

void

)

[pure virtual]

Implements TAO_AV_Protocol_Object.

Implemented in TAO_SFP_Producer_Object, and TAO_SFP_Consumer_Object.

int TAO_SFP_Object::send_frame	(	const char *	buf,
		size_t	len
	)			[virtual]

Implements TAO_AV_Protocol_Object.

int TAO_SFP_Object::send_frame	(	const iovec *	iov,
		int	iovcnt,
		TAO_AV_frame_info *	frame_info = 0
	)			[virtual]

send a frame in iovecs.

Implements TAO_AV_Protocol_Object.

int TAO_SFP_Object::send_frame	(	ACE_Message_Block *	frame,
		TAO_AV_frame_info *	frame_info = 0
	)			[virtual]

send a data frame.

Implements TAO_AV_Protocol_Object.

int TAO_SFP_Object::set_policies

(

const TAO_AV_PolicyList &

policy_list

)

[virtual]

set/get policies.

Reimplemented from TAO_AV_Protocol_Object.

---

Member Data Documentation

CORBA::Long TAO_SFP_Object::current_credit_ [protected]

CORBA::Long TAO_SFP_Object::max_credit_ [protected]

CORBA::ULong TAO_SFP_Object::sequence_num_ [protected]

CORBA::ULong TAO_SFP_Object::source_id_ [protected]

TAO_SFP_Frame_State TAO_SFP_Object::state_ [protected]

---

The documentation for this class was generated from the following files:

• sfp.h
• sfp.cpp
