ORB_Constants.h File Reference

#include "tao/Basic_Types.h"

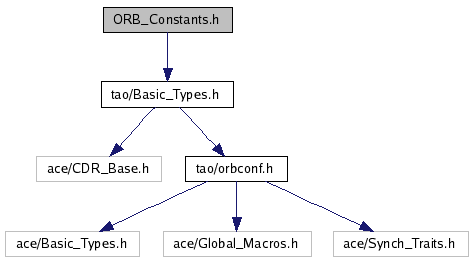

Include dependency graph for ORB_Constants.h:

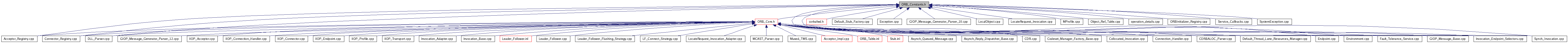

This graph shows which files directly or indirectly include this file:


Namespaces
namespace	CORBA
	FUZZ: disable check_for_include/.
namespace	TAO
	Define symbolic names for the ORB collocation strategies.
Defines
#define	TAO_TWOWAY_RESPONSE_FLAG 255
Variables
const ULong	CORBA::OMGVMCID = 0x4f4d0000U
	The OMG Vendor Minor Codeset ID (VMCID).
const CORBA::ULong	TAO_SVC_CONTEXT_ALIGN = 0x54414f00U
TAO-Specific System Exception Minor Code Values
These system exception minor code values are specific to TAO.
const CORBA::ULong	TAO_DEFAULT_MINOR_CODE = TAO::VMCID
	TAO VMCID assigned by the OMG.
const CORBA::ULong	TAO_MAX_MINOR_CODE = TAO::MAX_MINOR_CODE
	Maximum allowed system exception minor code.
TAO-Specific Profile IDs
The TAO `IOP::ProfileId` range `0x54414f00` - `0x54414f0f` has been reserved with the OMG. Note: It is NOT necessary to list your own protocols here. The values below are subject to change at any point.
const CORBA::ULong	TAO_TAG_UIOP_PROFILE = 0x54414f00U
	Local IPC (Unix Domain).
const CORBA::ULong	TAO_TAG_SHMEM_PROFILE = 0x54414f02U
	ATM/AAL5.
const CORBA::ULong	TAO_TAG_DIOP_PROFILE = 0x54414f04U
	Message Queue.
const CORBA::ULong	TAO_TAG_COIOP_PROFILE = 0x54414f05U
	COIOP.
const CORBA::ULong	TAO_TAG_SCIOP_PROFILE = 0x54414f0EU
	SCIOP.
const CORBA::ULong	TAO_TAG_NSKFS_PROFILE = 0x00003039U
	Tandem (HP) File System Protocol.
const CORBA::ULong	TAO_TAG_NSKPW_PROFILE = 0x0000303AU
	Tandem (HP) Pathsend Protocol.
const int	IPDSFIELD_DSCP_DEFAULT = 0x00
	Local IPC (Unix Domain).
Location Encoding
The location encoding is the 5 bits, after the @ errno encoding.
const CORBA::ULong	TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE = (0x01U << 7)
const CORBA::ULong	TAO_INVOCATION_SEND_REQUEST_MINOR_CODE = (0x02U << 7)
const CORBA::ULong	TAO_POA_DISCARDING = (0x03U << 7)
const CORBA::ULong	TAO_POA_HOLDING = (0x04U << 7)
const CORBA::ULong	TAO_UNHANDLED_SERVER_CXX_EXCEPTION = (0x05U << 7)
const CORBA::ULong	TAO_INVOCATION_RECV_REQUEST_MINOR_CODE = (0x06U << 7)
const CORBA::ULong	TAO_CONNECTOR_REGISTRY_NO_USABLE_PROTOCOL = (0x07U << 7)
const CORBA::ULong	TAO_MPROFILE_CREATION_ERROR = (0x08U << 7)
const CORBA::ULong	TAO_TIMEOUT_CONNECT_MINOR_CODE = (0x09U << 7)
const CORBA::ULong	TAO_TIMEOUT_SEND_MINOR_CODE = (0x0AU << 7)
const CORBA::ULong	TAO_TIMEOUT_RECV_MINOR_CODE = (0x0BU << 7)
const CORBA::ULong	TAO_IMPLREPO_MINOR_CODE = (0x0CU << 7)
const CORBA::ULong	TAO_ACCEPTOR_REGISTRY_OPEN_LOCATION_CODE = (0x0DU << 7)
const CORBA::ULong	TAO_ORB_CORE_INIT_LOCATION_CODE = (0x0EU << 7)
const CORBA::ULong	TAO_POLICY_NARROW_CODE = (0x0FU << 7)
const CORBA::ULong	TAO_GUARD_FAILURE = (0x10U << 7)
const CORBA::ULong	TAO_POA_BEING_DESTROYED = (0x11U << 7)
const CORBA::ULong	TAO_POA_INACTIVE = (0x12U << 7)
const CORBA::ULong	TAO_CONNECTOR_REGISTRY_INIT_LOCATION_CODE = (0x13U << 7)
const CORBA::ULong	TAO_AMH_REPLY_LOCATION_CODE = (0x14U << 7)
const CORBA::ULong	TAO_RTCORBA_THREAD_CREATION_LOCATION_CODE = (0x15U << 7)

Detailed Description

Id: ORB_Constants.h 76562 2007-01-24 18:37:07Z johnnyw

Constants needed by various files.

Author:: Jeff Parsons
Ossama Othman

Define Documentation

#define TAO_TWOWAY_RESPONSE_FLAG 255

Variable Documentation

const int IPDSFIELD_DSCP_DEFAULT = 0x00

Local IPC (Unix Domain).

const CORBA::ULong TAO_ACCEPTOR_REGISTRY_OPEN_LOCATION_CODE = (0x0DU << 7)

const CORBA::ULong TAO_AMH_REPLY_LOCATION_CODE = (0x14U << 7)

const CORBA::ULong TAO_CONNECTOR_REGISTRY_INIT_LOCATION_CODE = (0x13U << 7)

const CORBA::ULong TAO_CONNECTOR_REGISTRY_NO_USABLE_PROTOCOL = (0x07U << 7)

const CORBA::ULong TAO_DEFAULT_MINOR_CODE = TAO::VMCID

TAO VMCID assigned by the OMG.

Note:: This constant has historically been used in the wrong way. It was often used as the location argument to the CORBA::SystemException::_tao_minor_code() static method. A more appropriate default location argument/value would have been zero since the location code resides in portion of the lower order 12 bits, not the higher order 20 bits which is where the VMCID resides, and what this value happens to be.

Deprecated:: Please use TAO::VMCID instead, or zero if being used as default TAO exception location code argument.

See also:: TAO::VMCID

const CORBA::ULong TAO_GUARD_FAILURE = (0x10U << 7)

const CORBA::ULong TAO_IMPLREPO_MINOR_CODE = (0x0CU << 7)

const CORBA::ULong TAO_INVOCATION_LOCATION_FORWARD_MINOR_CODE = (0x01U << 7)

const CORBA::ULong TAO_INVOCATION_RECV_REQUEST_MINOR_CODE = (0x06U << 7)

const CORBA::ULong TAO_INVOCATION_SEND_REQUEST_MINOR_CODE = (0x02U << 7)

const CORBA::ULong TAO_MAX_MINOR_CODE = TAO::MAX_MINOR_CODE

Maximum allowed system exception minor code.

Deprecated:: Please use TAO::MAX_MINOR_CODE instead.

See also:: TAO::MAX_MINOR_CODE

const CORBA::ULong TAO_MPROFILE_CREATION_ERROR = (0x08U << 7)

const CORBA::ULong TAO_ORB_CORE_INIT_LOCATION_CODE = (0x0EU << 7)

const CORBA::ULong TAO_POA_BEING_DESTROYED = (0x11U << 7)

const CORBA::ULong TAO_POA_DISCARDING = (0x03U << 7)

const CORBA::ULong TAO_POA_HOLDING = (0x04U << 7)

const CORBA::ULong TAO_POA_INACTIVE = (0x12U << 7)

const CORBA::ULong TAO_POLICY_NARROW_CODE = (0x0FU << 7)

const CORBA::ULong TAO_RTCORBA_THREAD_CREATION_LOCATION_CODE = (0x15U << 7)

const CORBA::ULong TAO_SVC_CONTEXT_ALIGN = 0x54414f00U

A dummy service context that is inserted in the service context list to preserve the alignment in DSI based gateways, so no marshaling/demarshaling is required.
