TAO_MCAST_Parser Class Reference

Implements the mcast: IOR format. More...

#include <MCAST_Parser.h>

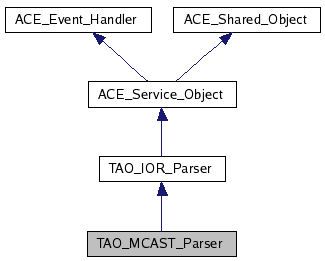

Inheritance diagram for TAO_MCAST_Parser:

[legend]

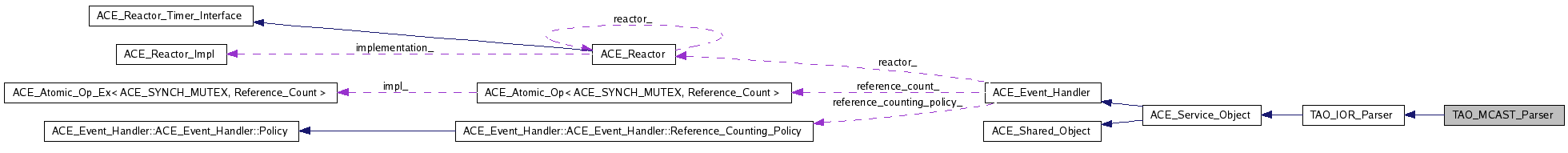

Collaboration diagram for TAO_MCAST_Parser:

[legend]

List of all members.

Public Member Functions
	TAO_MCAST_Parser (void)
	Constructor.
virtual	~TAO_MCAST_Parser (void)
	The destructor.
virtual bool	match_prefix (const char *ior_string) const
virtual CORBA::Object_ptr	parse_string (const char *ior, CORBA::ORB_ptr orb)
	Parse the ior-string that is passed.
Private Member Functions
CORBA::Object_ptr	multicast_to_service (const char *service_name, unsigned short port, const char *mcast_address, int mcast_ttl, const char *mcast_nic, CORBA::ORB_ptr orb, ACE_Time_Value *timeout)
int	multicast_query (char *&buf, const char *service_name, unsigned short port, const char *mcast_address, int mcast_ttl, const char *mcast_nic, ACE_Time_Value *timeout, CORBA::ORB_ptr orb)
void	assign_to_variables (char const *mcast_name_ptr)
Private Attributes
CORBA::String_var	mcast_address_
unsigned short	mcast_port_
	Default multicast port (currently Name Service mcast port).
CORBA::String_var	mcast_nic_
	Multicast network interface card.
int	mcast_ttl_
	Default time-to-live (default is 1).
CORBA::String_var	service_name_
	Multicast service name.

---

Detailed Description

Implements the mcast: IOR format.

This class implements the mcast: IOR format. It is dynamically loaded by the ORB and used to parse the string to separate the individual <obj_addr> from the list of object addresses <obj_addr_list>.

---

Constructor & Destructor Documentation

TAO_MCAST_Parser::TAO_MCAST_Parser

(

void

)

Constructor.

TAO_MCAST_Parser::~TAO_MCAST_Parser

(

void

)

[virtual]

The destructor.

---

Member Function Documentation

void TAO_MCAST_Parser::assign_to_variables

(

char const *

mcast_name_ptr

)

[private]

bool TAO_MCAST_Parser::match_prefix

(

const char *

ior_string

)

const [virtual]

= The IOR_Parser methods, please read the documentation in IOR_Parser.h

Implements TAO_IOR_Parser.

int TAO_MCAST_Parser::multicast_query	(	char *&	buf,
		const char *	service_name,
		unsigned short	port,
		const char *	mcast_address,
		int	mcast_ttl,
		const char *	mcast_nic,
		ACE_Time_Value *	timeout,
		CORBA::ORB_ptr	orb
	)			[private]

CORBA::Object_ptr TAO_MCAST_Parser::multicast_to_service	(	const char *	service_name,
		unsigned short	port,
		const char *	mcast_address,
		int	mcast_ttl,
		const char *	mcast_nic,
		CORBA::ORB_ptr	orb,
		ACE_Time_Value *	timeout
	)			[private]

CORBA::Object_ptr TAO_MCAST_Parser::parse_string	(	const char *	ior,
		CORBA::ORB_ptr	orb
	)			[virtual]

Parse the ior-string that is passed.

Implements TAO_IOR_Parser.

---

Member Data Documentation

CORBA::String_var TAO_MCAST_Parser::mcast_address_ [private]

CORBA::String_var TAO_MCAST_Parser::mcast_nic_ [private]

Multicast network interface card.

unsigned short TAO_MCAST_Parser::mcast_port_ [private]

Default multicast port (currently Name Service mcast port).

int TAO_MCAST_Parser::mcast_ttl_ [private]

Default time-to-live (default is 1).

CORBA::String_var TAO_MCAST_Parser::service_name_ [private]

Multicast service name.

---

The documentation for this class was generated from the following files:

• MCAST_Parser.h
• MCAST_Parser.cpp
