ACE::Monitor_Control::Monitor_Base Class Reference

Base class from which the template monitor point class is derived. More...

#include <Monitor_Base.h>

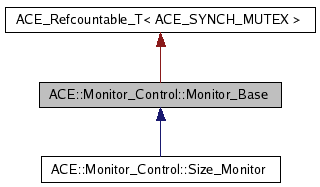

Inheritance diagram for ACE::Monitor_Control::Monitor_Base:

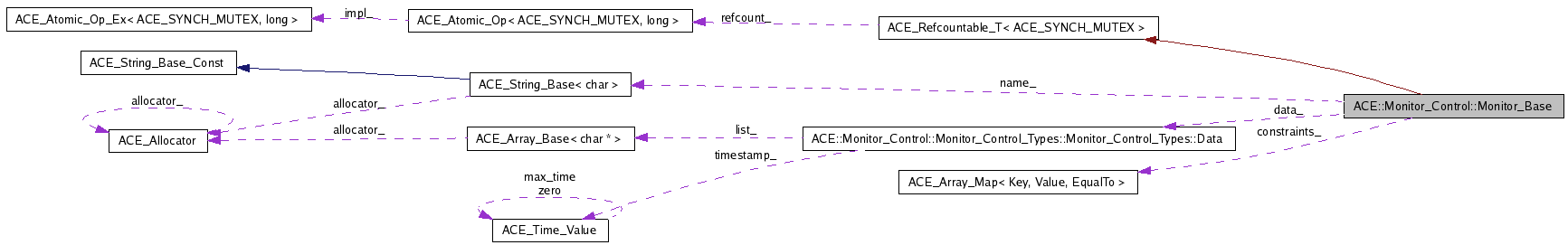

Collaboration diagram for ACE::Monitor_Control::Monitor_Base:

List of all members.

Public Types

typedef
Monitor_Control_Types::ConstraintList CONSTRAINTS

typedef CONSTRAINTS::const_iterator CONSTRAINT_ITERATOR

Public Member Functions

Monitor_Base (const char *name, Monitor_Control_Types::Information_Type type)

virtual ~Monitor_Base (void)

virtual void update (void)

virtual void receive (double data)

Updates the monitor's data if it is a numeric floating point.

virtual void receive (size_t data)

Updates the monitor's data if it is an integer size.

virtual void receive (const Monitor_Control_Types::NameList &data)

Updates the monitor's data if it is a string type.

long add_constraint (const char *expression, Control_Action *action=0)

Add a constraint, returns a unique constraint id.

Control_Action * remove_constraint (const long constraint_id)

CONSTRAINTS & constraints (void)

Get all constraints.

virtual void clear (void)

Reset function.

void retrieve (Monitor_Control_Types::Data &data) const

Data accessors.

void retrieve_and_clear (Monitor_Control_Types::Data &data)

void add_to_registry (const ACE_Time_Value &time=ACE_Time_Value::zero)

Common to all monitors.

void remove_from_registry (void)

const char * name (void) const

void name (const char *new_name)

void add_ref (void)

void remove_ref (void)

double average (void) const

Calculate the average of the accumulated samples.

double sum_of_squares (void) const

Calculate the sum of the squares of the samples.

size_t count (void) const

Returns the number of samples.

double minimum_sample (void) const

Returns the minimum sample value.

double maximum_sample (void) const

Returns the maximum sample value.

double last_sample (void) const

Returns the most recent sample value.

Monitor_Control_Types::Information_Type type (void) const

Return the type of this statistic.

Monitor_Control_Types::NameList get_list (void) const

Return the list or error msg if wrong type.

Protected Member Functions

virtual void clear_i (void)

Protected Attributes

Monitor_Control_Types::Data data_

ACE_SYNCH_MUTEX mutex_

CONSTRAINTS constraints_

Private Attributes

ACE_CString name_

Detailed Description

Base class from which the template monitor point class is derived.

Member Typedef Documentation

typedef CONSTRAINTS::const_iterator ACE::Monitor_Control::Monitor_Base::CONSTRAINT_ITERATOR

typedef Monitor_Control_Types::ConstraintList ACE::Monitor_Control::Monitor_Base::CONSTRAINTS

Constructor & Destructor Documentation

ACE::Monitor_Control::Monitor_Base::Monitor_Base	(	const char *	name,
		Monitor_Control_Types::Information_Type	type
	)

ACE::Monitor_Control::Monitor_Base::~Monitor_Base ( void ) [virtual]

Member Function Documentation

long ACE::Monitor_Control::Monitor_Base::add_constraint	(	const char *	expression,
		Control_Action *	action = `0`
	)

Add a constraint, returns a unique constraint id.

Thread-safe and guaranteed to be unique.

This is thread-safe on its own so we don't have to guard it here.

Since we know external key is unique, we don't check for failure.

void ACE::Monitor_Control::Monitor_Base::add_ref ( void )

void ACE::Monitor_Control::Monitor_Base::add_to_registry ( const ACE_Time_Value & time = ACE_Time_Value::zero )

Common to all monitors.

double ACE::Monitor_Control::Monitor_Base::average ( void ) const

Calculate the average of the accumulated samples.

void ACE::Monitor_Control::Monitor_Base::clear ( void ) [virtual]

Reset function.

Reimplemented in ACE::Monitor_Control::Size_Monitor.

void ACE::Monitor_Control::Monitor_Base::clear_i ( void ) [protected, virtual]

Overridden in some monitors (for example the OS monitors) where clearing requires monitor-specific actions.

Monitor_Base::CONSTRAINTS & ACE::Monitor_Control::Monitor_Base::constraints ( void )

Get all constraints.

size_t ACE::Monitor_Control::Monitor_Base::count ( void ) const

Returns the number of samples.

Monitor_Control_Types::NameList ACE::Monitor_Control::Monitor_Base::get_list ( void ) const

Return the list or error msg if wrong type.

double ACE::Monitor_Control::Monitor_Base::last_sample ( void ) const

Returns the most recent sample value.

double ACE::Monitor_Control::Monitor_Base::maximum_sample ( void ) const

Returns the maximum sample value.

double ACE::Monitor_Control::Monitor_Base::minimum_sample ( void ) const

Returns the minimum sample value.

void ACE::Monitor_Control::Monitor_Base::name ( const char * new_name )

const char * ACE::Monitor_Control::Monitor_Base::name ( void ) const

void ACE::Monitor_Control::Monitor_Base::receive ( const Monitor_Control_Types::NameList & data ) [virtual]

Updates the monitor's data if it is a string type.

void ACE::Monitor_Control::Monitor_Base::receive ( size_t data ) [virtual]

Updates the monitor's data if it is an integer size.

void ACE::Monitor_Control::Monitor_Base::receive ( double data ) [virtual]

Updates the monitor's data if it is a numeric floating point.

Control_Action * ACE::Monitor_Control::Monitor_Base::remove_constraint ( const long constraint_id )

Remove a constraint and return the associated control action, which may be shared, for deletion or further use.

void ACE::Monitor_Control::Monitor_Base::remove_from_registry ( void )

void ACE::Monitor_Control::Monitor_Base::remove_ref ( void )

void ACE::Monitor_Control::Monitor_Base::retrieve ( Monitor_Control_Types::Data & data ) const

Data accessors.

void ACE::Monitor_Control::Monitor_Base::retrieve_and_clear ( Monitor_Control_Types::Data & data )

double ACE::Monitor_Control::Monitor_Base::sum_of_squares ( void ) const

Calculate the sum of the squares of the samples.

Monitor_Control_Types::Information_Type ACE::Monitor_Control::Monitor_Base::type ( void ) const

Return the type of this statistic.

void ACE::Monitor_Control::Monitor_Base::update ( void ) [virtual]

Implemented by the most-derived class. Does the actual work of fetching the monitored value.

Overridden in derived classes.

Reimplemented in ACE::Monitor_Control::Size_Monitor.

Member Data Documentation

CONSTRAINTS ACE::Monitor_Control::Monitor_Base::constraints_ [protected]

Monitor_Control_Types::Data ACE::Monitor_Control::Monitor_Base::data_ [protected]

ACE_SYNCH_MUTEX ACE::Monitor_Control::Monitor_Base::mutex_ [mutable, protected]

ACE_CString ACE::Monitor_Control::Monitor_Base::name_ [private]

The documentation for this class was generated from the following files:
