ACE_Token_Collection Class Reference

Allows atomic token group operations AND provides a ACE_Token manager interface. More...

#include <Token_Collection.h>

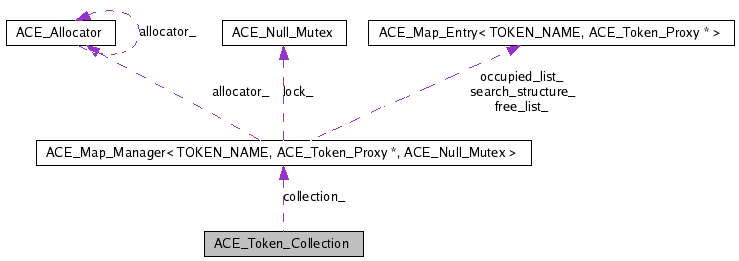

Collaboration diagram for ACE_Token_Collection:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 ACE_Token_Collection (bool debug=false, const ACE_TCHAR *name=0)
int insert (ACE_Token_Proxy &token)
int extract (const ACE_TCHAR *token_name, ACE_Token_Proxy *&proxy)
ACE_Token_Proxy * is_member (const ACE_TCHAR *token_name)
 Returns the proxy if true. 0 otherwise.
int is_member (const ACE_Token_Proxy &token)
virtual int acquire (int notify=0, void(*sleep_hook)(void *)=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int acquire (const ACE_TCHAR *token_name, int notify=0, void(*sleep_hook)(void *)=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int tryacquire (void(*sleep_hook)(void *)=0)
 Try to acquire all tokens in collection.
virtual int tryacquire (const ACE_TCHAR *token_name, void(*sleep_hook)(void *)=0)
 Try to acquire token_name.
virtual int renew (int requeue_position=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int renew (const ACE_TCHAR *token_name, int requeue_position=0, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int release (ACE_Synch_Options &options=ACE_Synch_Options::defaults)
virtual int release (const ACE_TCHAR *token_name, ACE_Synch_Options &options=ACE_Synch_Options::defaults)
 ~ACE_Token_Collection (void)
void dump (void) const
 Dump the state of the class.
virtual const ACE_TCHARname (void) const

Protected Types

typedef ACE_Token_Name TOKEN_NAME
typedef ACE_Map_Manager
< TOKEN_NAME, ACE_Token_Proxy
*, ACE_Null_Mutex
COLLECTION
 COLLECTION maintains a mapping from token names to ACE_Tokens*.
typedef COLLECTION::ITERATOR COLLECTION_ITERATOR
 Allows iterations through collection_.
typedef COLLECTION::ENTRY COLLECTION_ENTRY
 Allows iterations through collection_.

Protected Member Functions

virtual ACE_Token_Proxy * clone (void) const
virtual ACE_Tokens * create_token (const ACE_TCHAR *name)

Protected Attributes

COLLECTION collection_
 COLLECTION maintains a mapping from token names to ACE_Tokens*.
bool debug_
 Whether to print out debug messages or not.
ACE_TCHAR name_ [ACE_MAXTOKENNAMELEN]
 Name of the collection.


Detailed Description

Allows atomic token group operations AND provides a ACE_Token manager interface.

There are two types of operations offered by ACE_Token_Collection. The first is atomic operations on collections of Token_Proxies. In this respect, the ACE_Token_Collection can be thought of as a single token consisting of multiple Token_Proxies. The second role of the ACE_Token_Collection is as a ACE_Token manager. ACE_Token_Collection allows individual operations on single members of a collection of Token_Proxies. This provides a single access point for operations on multiple tokens.

Bug:
Although ACE_Token_Collection inherits from ACE_Token_Proxy, it can not be including in a collection. This is because <clone> returns zero for now.

Member Typedef Documentation

COLLECTION maintains a mapping from token names to ACE_Tokens*.

Allows iterations through collection_.

Deprecated:
Deprecated typedef. Use COLLECTION::ENTRY trait instead.

Allows iterations through collection_.

Deprecated:
Deprecated typedef. Use COLLECTION::ITERATOR trait instead.

typedef ACE_Token_Name ACE_Token_Collection::TOKEN_NAME [protected]


Constructor & Destructor Documentation

ACE_Token_Collection::ACE_Token_Collection ( bool  debug = false,
const ACE_TCHAR name = 0
)

debug print out verbose debugging messages. name will give a name to the collection. Collections don't really need names, but are sometimes useful for debugging.

ACE_Token_Collection::~ACE_Token_Collection ( void   )


Member Function Documentation

int ACE_Token_Collection::acquire ( const ACE_TCHAR token_name,
int  notify = 0,
void(*)(void *)  sleep_hook = 0,
ACE_Synch_Options options = ACE_Synch_Options::defaults
) [virtual]

Acquire the token corresponding to token_name. The other parameters are passed to <token>acquire.

int ACE_Token_Collection::acquire ( int  notify = 0,
void(*)(void *)  sleep_hook = 0,
ACE_Synch_Options options = ACE_Synch_Options::defaults
) [virtual]

Acquire "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be acquired. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem. If and error or deadlock occurs for one of the tokens, all the tokens will be released and the method will return -1. Note that returning on detection of deadlock prevents livelock between competing collections. If a collection returns after detecting deadlock, it is the application's responsibility to not to blindly loop on the collection::acquire operation. In other words, once the collection reports deadlock, it is out of our hands.

ACE_Token_Proxy * ACE_Token_Collection::clone ( void   )  const [protected, virtual]

ACE_Tokens * ACE_Token_Collection::create_token ( const ACE_TCHAR name  )  [protected, virtual]

void ACE_Token_Collection::dump ( void   )  const

Dump the state of the class.

int ACE_Token_Collection::extract ( const ACE_TCHAR token_name,
ACE_Token_Proxy *&  proxy
)

Removes the ACE_Token matching the given token_name from the collection. On success, extract returns 0. On failure (token_name was not in the collection,) extract returns -1. On success, the state of the token found is copied into proxy. The returned ACE_Token_Proxy* must be deleted by the user.

int ACE_Token_Collection::insert ( ACE_Token_Proxy &  token  )

Insert a Token into the collection. All ACE_Token type operations performed on the collection will also be performed on the new_proxy until it is removed. Note that no operations performed prior to the insertion will be performed. Returns: 0 on success, -1 on failure with errno == problem. If a token proxy already exists in the collection with the same name, the insertion will fail. Also, <token> is copied. Note that during the copy, client_id's are *not* inherited. The client ID of the thread using the collection will be used. Client ID's can be changed explicity on each proxy using is_member.

int ACE_Token_Collection::is_member ( const ACE_Token_Proxy &  token  )

Is the specified token in the collection? 1, yes. 0, no.

ACE_Token_Proxy * ACE_Token_Collection::is_member ( const ACE_TCHAR token_name  )

Returns the proxy if true. 0 otherwise.

virtual const ACE_TCHAR* ACE_Token_Collection::name ( void   )  const [virtual]

Return the name of the collection. Not very functionally important, but sometimes a useful debugging tool.

int ACE_Token_Collection::release ( const ACE_TCHAR token_name,
ACE_Synch_Options options = ACE_Synch_Options::defaults
) [virtual]

Release the token corresponding to <token_name>. The other parameters are passed to <token>release.

int ACE_Token_Collection::release ( ACE_Synch_Options options = ACE_Synch_Options::defaults  )  [virtual]

Releases "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be released. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem.

int ACE_Token_Collection::renew ( const ACE_TCHAR token_name,
int  requeue_position = 0,
ACE_Synch_Options options = ACE_Synch_Options::defaults
) [virtual]

Renew the token corresponding to token_name. The other parameters are passed to <token>renew.

int ACE_Token_Collection::renew ( int  requeue_position = 0,
ACE_Synch_Options options = ACE_Synch_Options::defaults
) [virtual]

Renews "atomically" all resources in the collection. This is only successfull if all tokens in the collection could be renewed. options contains the blocking semantics, timeout value, etc. Returns: 0 on success, -1 on failure with errno == problem.

int ACE_Token_Collection::tryacquire ( const ACE_TCHAR token_name,
void(*)(void *)  sleep_hook = 0
) [virtual]

Try to acquire token_name.

int ACE_Token_Collection::tryacquire ( void(*)(void *)  sleep_hook = 0  )  [virtual]

Try to acquire all tokens in collection.


Member Data Documentation

COLLECTION maintains a mapping from token names to ACE_Tokens*.

bool ACE_Token_Collection::debug_ [protected]

Whether to print out debug messages or not.

ACE_TCHAR ACE_Token_Collection::name_[ACE_MAXTOKENNAMELEN] [protected]

Name of the collection.


The documentation for this class was generated from the following files:
