ACE_SPIPE_Stream Class Reference

Defines the methods in the ACE_SPIPE_Stream abstraction. More...

#include <SPIPE_Stream.h>

Inheritance diagram for ACE_SPIPE_Stream:

Inheritance graph
[legend]

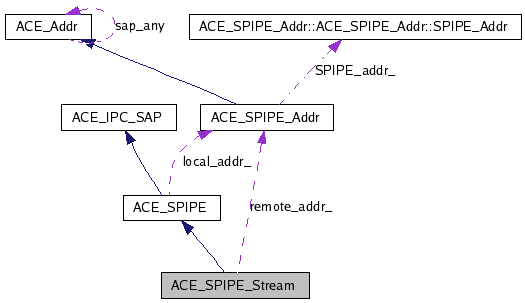

Collaboration diagram for ACE_SPIPE_Stream:

Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_SPIPE_Addr PEER_ADDR

Public Member Functions

 ACE_SPIPE_Stream (void)
 Default constructor.
int get_remote_addr (ACE_SPIPE_Addr &remote_sap) const
 Obtain the address of whom we are connected with.
int send_handle (ACE_HANDLE handle) const
 Send an open FD to another process.
int recv_handle (ACE_HANDLE &handle) const
 Recv an open FD from another process.
int recv_handle (strrecvfd &recvfd) const
 Recv an open FD from another process.
ssize_t send_n (const void *buf, size_t len) const
 Send len bytes, keep trying until len are sent.
ssize_t recv_n (void *buf, size_t len) const
 Recv len bytes, keep trying until len are received.
ssize_t send (const void *buf, size_t len) const
 Send bytes via STREAM pipes using "band" mode.
ssize_t recv (void *buf, size_t len) const
 Recv bytes via STREAM pipes using "band" mode.
ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int flags=0) const
 Send cntl and data via STREAM pipes.
ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *flags) const
 Recv cntl and data via STREAM pipes.
ssize_t send (const ACE_Str_Buf *cntl, const ACE_Str_Buf *data, int band, int flags) const
 Send bytes via STREAM pipes using "band" mode.
ssize_t recv (ACE_Str_Buf *cntl, ACE_Str_Buf *data, int *band, int *flags) const
 Recv bytes via STREAM pipes using "band" mode.
ssize_t send (const iovec iov[], int len) const
 Send iovecs via the OS "gather-write" operation.
ssize_t recv (iovec iov[], int len) const
 Recv iovecs via the OS "scatter-read" operation.
ssize_t send (size_t len,...) const
ssize_t recv (size_t len,...) const
ssize_t send (const void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Send len bytes via Win32 <WriteFile> using overlapped I/O.
ssize_t recv (void *buf, size_t len, ACE_OVERLAPPED *overlapped) const
 Recv len bytes via Win32 <ReadFile> using overlapped I/O.
ssize_t sendv (const iovec iov[], int len) const
 Send an <iovec> of size len to the stream.
ssize_t sendv_n (const iovec iov[], int len) const
ssize_t recvv_n (iovec iov[], int len) const
 Receive an <iovec> of size len from the stream.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Attributes

ACE_SPIPE_Addr remote_addr_

Friends

class ACE_SPIPE_Acceptor
class ACE_SPIPE_Connector


Detailed Description

Defines the methods in the ACE_SPIPE_Stream abstraction.

buf is the buffer to write from or receive into. len is the number of bytes to transfer.

The "_n()" I/O methods keep looping until all the data has been transferred. These methods also work for sockets in non-blocking mode i.e., they keep looping on EWOULDBLOCK.

The return values for the "*_n()" methods match the return values from the non "_n()" methods and are specified as follows:

Methods with <iovec> parameter are I/O vector variants of the I/O operations.

The <send> and <revc> operations use "message" semantics rather than "bytestream" semantics.


Member Typedef Documentation


Constructor & Destructor Documentation

ACE_SPIPE_Stream::ACE_SPIPE_Stream ( void   )

Default constructor.


Member Function Documentation

void ACE_SPIPE_Stream::dump ( void   )  const

Dump the state of an object.

Reimplemented from ACE_SPIPE.

int ACE_SPIPE_Stream::get_remote_addr ( ACE_SPIPE_Addr remote_sap  )  const [inline]

Obtain the address of whom we are connected with.

ssize_t ACE_SPIPE_Stream::recv ( void *  buf,
size_t  len,
ACE_OVERLAPPED overlapped
) const [inline]

Recv len bytes via Win32 <ReadFile> using overlapped I/O.

ssize_t ACE_SPIPE_Stream::recv ( size_t  len,
  ...
) const

This is an interface to readv, that doesn't use the struct iovec explicitly. The ... can be passed as an arbitrary number of (char *ptr, int len) tuples. However, the count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

ssize_t ACE_SPIPE_Stream::recv ( iovec  iov[],
int  len
) const [inline]

Recv iovecs via the OS "scatter-read" operation.

ssize_t ACE_SPIPE_Stream::recv ( ACE_Str_Buf cntl,
ACE_Str_Buf data,
int *  band,
int *  flags
) const [inline]

Recv bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::recv ( ACE_Str_Buf cntl,
ACE_Str_Buf data,
int *  flags
) const [inline]

Recv cntl and data via STREAM pipes.

ssize_t ACE_SPIPE_Stream::recv ( void *  buf,
size_t  len
) const [inline]

Recv bytes via STREAM pipes using "band" mode.

int ACE_SPIPE_Stream::recv_handle ( strrecvfd &  recvfd  )  const [inline]

Recv an open FD from another process.

int ACE_SPIPE_Stream::recv_handle ( ACE_HANDLE &  handle  )  const [inline]

Recv an open FD from another process.

ssize_t ACE_SPIPE_Stream::recv_n ( void *  buf,
size_t  len
) const [inline]

Recv len bytes, keep trying until len are received.

ssize_t ACE_SPIPE_Stream::recvv_n ( iovec  iov[],
int  len
) const [inline]

Receive an <iovec> of size len from the stream.

ssize_t ACE_SPIPE_Stream::send ( const void *  buf,
size_t  len,
ACE_OVERLAPPED overlapped
) const [inline]

Send len bytes via Win32 <WriteFile> using overlapped I/O.

ssize_t ACE_SPIPE_Stream::send ( size_t  len,
  ...
) const

Send N char *ptrs and int lengths. Note that the char *'s precede the ints (basically, an varargs version of writev). The count N is the *total* number of trailing arguments, *not* a couple of the number of tuple pairs!

ssize_t ACE_SPIPE_Stream::send ( const iovec  iov[],
int  len
) const [inline]

Send iovecs via the OS "gather-write" operation.

ssize_t ACE_SPIPE_Stream::send ( const ACE_Str_Buf cntl,
const ACE_Str_Buf data,
int  band,
int  flags
) const [inline]

Send bytes via STREAM pipes using "band" mode.

ssize_t ACE_SPIPE_Stream::send ( const ACE_Str_Buf cntl,
const ACE_Str_Buf data,
int  flags = 0
) const [inline]

Send cntl and data via STREAM pipes.

ssize_t ACE_SPIPE_Stream::send ( const void *  buf,
size_t  len
) const [inline]

Send bytes via STREAM pipes using "band" mode.

int ACE_SPIPE_Stream::send_handle ( ACE_HANDLE  handle  )  const [inline]

Send an open FD to another process.

ssize_t ACE_SPIPE_Stream::send_n ( const void *  buf,
size_t  len
) const [inline]

Send len bytes, keep trying until len are sent.

ssize_t ACE_SPIPE_Stream::sendv ( const iovec  iov[],
int  len
) const [inline]

Send an <iovec> of size len to the stream.

ssize_t ACE_SPIPE_Stream::sendv_n ( const iovec  iov[],
int  len
) const [inline]

Send an <iovec> of size len to the stream. Will block until all bytes are sent or an error occurs.


Friends And Related Function Documentation

friend class ACE_SPIPE_Acceptor [friend]

friend class ACE_SPIPE_Connector [friend]


Member Data Documentation

Declare the dynamic allocation hooks.

Reimplemented from ACE_SPIPE.


The documentation for this class was generated from the following files:
