ACE_Select_Reactor_Handler_Repository Class Reference

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *. More...

#include <Select_Reactor_Base.h>

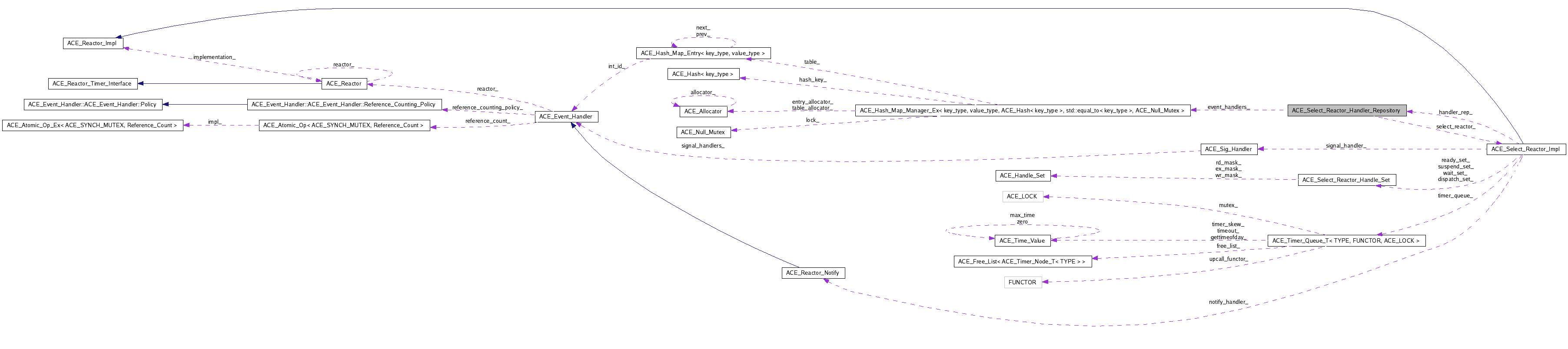

Collaboration diagram for ACE_Select_Reactor_Handler_Repository:

Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_HANDLE key_type
typedef ACE_Event_Handlervalue_type
typedef
ACE_Hash_Map_Manager_Ex
< key_type, value_type,
ACE_Hash< key_type >
, std::equal_to< key_type >
, ACE_Null_Mutex
map_type
typedef map_type::size_type max_handlep1_type
typedef map_type::size_type size_type

Public Member Functions

 ACE_Select_Reactor_Handler_Repository (ACE_Select_Reactor_Impl &)
 Default "do-nothing" constructor.
int open (size_type size)
 Initialize a repository of the appropriate size.
int close (void)
 Close down the repository.
ACE_Event_Handlerfind (ACE_HANDLE handle)
int bind (ACE_HANDLE, ACE_Event_Handler *, ACE_Reactor_Mask)
int unbind (ACE_HANDLE, ACE_Reactor_Mask mask)
 Remove the binding of ACE_HANDLE in accordance with the mask.
int unbind_all (void)
 Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.
bool invalid_handle (ACE_HANDLE handle)
bool handle_in_range (ACE_HANDLE handle)
size_type size (void) const
 Returns the current table size.
max_handlep1_type max_handlep1 (void) const
 Maximum ACE_HANDLE value, plus 1.
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Private Member Functions

int unbind (ACE_HANDLE handle, map_type::iterator pos, ACE_Reactor_Mask mask)
map_type::iterator find_eh (ACE_HANDLE handle)

Private Attributes

ACE_Select_Reactor_Implselect_reactor_
 Reference to our Select_Reactor.
map_type event_handlers_
 Underlying table of event handlers.

Friends

class ACE_Select_Reactor_Handler_Repository_Iterator


Detailed Description

Used to map ACE_HANDLEs onto the appropriate ACE_Event_Handler *.

This class is necessary to shield differences between UNIX and Win32. In UNIX, ACE_HANDLE is an int, whereas in Win32 it's a void *. This class hides all these details from the bulk of the ACE_Select_Reactor code. All of these methods are called with the main <Select_Reactor> token lock held.


Member Typedef Documentation

The NT version implements this via a hash map ACE_Event_Handler*. Since NT implements ACE_HANDLE as a void * we can't directly index into this array. Therefore, we must explicitly map ACE_HANDLE to ACE_Event_Handler.


Constructor & Destructor Documentation

ACE_Select_Reactor_Handler_Repository::ACE_Select_Reactor_Handler_Repository ( ACE_Select_Reactor_Impl select_reactor  )

Default "do-nothing" constructor.


Member Function Documentation

int ACE_Select_Reactor_Handler_Repository::bind ( ACE_HANDLE  handle,
ACE_Event_Handler event_handler,
ACE_Reactor_Mask  mask
)

Bind the ACE_Event_Handler * to the ACE_HANDLE with the appropriate ACE_Reactor_Mask settings.

int ACE_Select_Reactor_Handler_Repository::close ( void   )

Close down the repository.

void ACE_Select_Reactor_Handler_Repository::dump ( void   )  const

Dump the state of an object.

ACE_Event_Handler * ACE_Select_Reactor_Handler_Repository::find ( ACE_HANDLE  handle  )  [inline]

Return the ACE_Event_Handler* associated with ACE_HANDLE.

ACE_Select_Reactor_Handler_Repository::map_type::iterator ACE_Select_Reactor_Handler_Repository::find_eh ( ACE_HANDLE  handle  )  [private]

Returns:
iterator corresponding ACE_Event_Handler* associated with ACE_HANDLE.

bool ACE_Select_Reactor_Handler_Repository::handle_in_range ( ACE_HANDLE  handle  )

bool ACE_Select_Reactor_Handler_Repository::invalid_handle ( ACE_HANDLE  handle  )

ACE_Select_Reactor_Handler_Repository::max_handlep1_type ACE_Select_Reactor_Handler_Repository::max_handlep1 ( void   )  const [inline]

Maximum ACE_HANDLE value, plus 1.

int ACE_Select_Reactor_Handler_Repository::open ( size_type  size  )

Initialize a repository of the appropriate size.

On Unix platforms, the size parameter should be as large as the maximum number of file descriptors allowed for a given process. This is necessary since a file descriptor is used to directly index the array of event handlers maintained by the Reactor's handler repository. Direct indexing is used for efficiency reasons.

ACE_Select_Reactor_Handler_Repository::size_type ACE_Select_Reactor_Handler_Repository::size ( void   )  const [inline]

Returns the current table size.

int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle,
map_type::iterator  pos,
ACE_Reactor_Mask  mask
) [private]

Remove the binding of handle corresponding to position pos in accordance with the mask.

int ACE_Select_Reactor_Handler_Repository::unbind ( ACE_HANDLE  handle,
ACE_Reactor_Mask  mask
) [inline]

Remove the binding of ACE_HANDLE in accordance with the mask.

int ACE_Select_Reactor_Handler_Repository::unbind_all ( void   )

Remove all the <ACE_HANDLE, ACE_Event_Handler> tuples.


Friends And Related Function Documentation


Member Data Documentation

Declare the dynamic allocation hooks.

Underlying table of event handlers.

Reference to our Select_Reactor.


The documentation for this class was generated from the following files:
