ACE_Name_Request Class Reference

Message format for delivering requests to the ACE_Name Server. More...

#include <Name_Request_Reply.h>

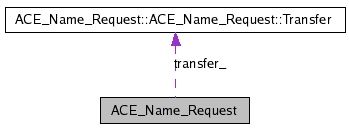

Collaboration diagram for ACE_Name_Request:

Collaboration graph
[legend]

List of all members.

Classes

struct  Transfer

Public Types

enum  Constants {
  BIND = 01, REBIND = 02, RESOLVE = 03, UNBIND = 04,
  LIST_NAMES = 05, LIST_VALUES = 015, LIST_TYPES = 025, LIST_NAME_ENTRIES = 06,
  LIST_VALUE_ENTRIES = 016, LIST_TYPE_ENTRIES = 026, MAX_ENUM = 11, MAX_LIST = 3,
  OP_TABLE_MASK = 07, LIST_OP_MASK = 030, MAX_NAME_LENGTH = MAXPATHLEN + 1
}
 Request message types. More...

Public Member Functions

 ACE_Name_Request (void)
 Default constructor.
 ACE_Name_Request (ACE_INT32 msg_type, const ACE_WCHAR_T name[], const ACE_UINT32 name_length, const ACE_WCHAR_T value[], const ACE_UINT32 value_length, const char type[], const ACE_UINT32 type_length, ACE_Time_Value *timeout=0)
 Create a ACE_Name_Request message.
void init (void)
ACE_UINT32 length (void) const
void length (ACE_UINT32)
ACE_INT32 msg_type (void) const
void msg_type (ACE_INT32)
ACE_UINT32 block_forever (void) const
void block_forever (ACE_UINT32)
ACE_Time_Value timeout (void) const
void timeout (const ACE_Time_Value timeout)
const ACE_WCHAR_T * name (void) const
void name (const ACE_WCHAR_T *)
const ACE_WCHAR_T * value (void) const
void value (const ACE_WCHAR_T *)
const char * type (void) const
void type (const char *)
ACE_UINT32 name_len (void) const
void name_len (ACE_UINT32)
ACE_UINT32 value_len (void) const
void value_len (ACE_UINT32)
ACE_UINT32 type_len (void) const
void type_len (ACE_UINT32)
int encode (void *&)
 Encode the message before transmission.
int decode (void)
 Decode message after reception.
void dump (void) const
 Print out the values of the message for debugging purposes.

Private Attributes

Transfer transfer_
 Transfer buffer.
ACE_WCHAR_T * name_
 Pointer to the beginning of the name in this->data_.
ACE_WCHAR_T * value_
 Pointer to the beginning of the value in this->data_;.
char * type_
 Pointer to the beginning of the type in this->data_;.


Detailed Description

Message format for delivering requests to the ACE_Name Server.

This class is implemented to minimize data copying. In particular, all marshaling is done in situ...


Member Enumeration Documentation

Request message types.

Enumerator:
BIND
REBIND
RESOLVE
UNBIND
LIST_NAMES
LIST_VALUES
LIST_TYPES
LIST_NAME_ENTRIES
LIST_VALUE_ENTRIES
LIST_TYPE_ENTRIES
MAX_ENUM
MAX_LIST
OP_TABLE_MASK  Mask for lookup of operation.
LIST_OP_MASK  Mask for lookup of list_operation.
MAX_NAME_LENGTH  Class-specific constant values.


Constructor & Destructor Documentation

ACE_Name_Request::ACE_Name_Request ( void   )

Default constructor.

ACE_Name_Request::ACE_Name_Request ( ACE_INT32  msg_type,
const ACE_WCHAR_T  name[],
const ACE_UINT32  name_length,
const ACE_WCHAR_T  value[],
const ACE_UINT32  value_length,
const char  type[],
const ACE_UINT32  type_length,
ACE_Time_Value timeout = 0
)

Create a ACE_Name_Request message.


Member Function Documentation

void ACE_Name_Request::block_forever ( ACE_UINT32  bs  )

ACE_UINT32 ACE_Name_Request::block_forever ( void   )  const

int ACE_Name_Request::decode ( void   )

Decode message after reception.

void ACE_Name_Request::dump ( void   )  const

Print out the values of the message for debugging purposes.

int ACE_Name_Request::encode ( void *&  buf  )

Encode the message before transmission.

void ACE_Name_Request::init ( void   )

Initialize length_ in order to ensure correct byte ordering before a request is sent.

void ACE_Name_Request::length ( ACE_UINT32  l  )

ACE_UINT32 ACE_Name_Request::length ( void   )  const

void ACE_Name_Request::msg_type ( ACE_INT32  t  )

ACE_INT32 ACE_Name_Request::msg_type ( void   )  const

void ACE_Name_Request::name ( const ACE_WCHAR_T *  t  )

const ACE_WCHAR_T * ACE_Name_Request::name ( void   )  const

void ACE_Name_Request::name_len ( ACE_UINT32  t  )

ACE_UINT32 ACE_Name_Request::name_len ( void   )  const

void ACE_Name_Request::timeout ( const ACE_Time_Value  timeout  )

ACE_Time_Value ACE_Name_Request::timeout ( void   )  const

void ACE_Name_Request::type ( const char *  c  )

const char * ACE_Name_Request::type ( void   )  const

void ACE_Name_Request::type_len ( ACE_UINT32  t  )

ACE_UINT32 ACE_Name_Request::type_len ( void   )  const

void ACE_Name_Request::value ( const ACE_WCHAR_T *  c  )

const ACE_WCHAR_T * ACE_Name_Request::value ( void   )  const

void ACE_Name_Request::value_len ( ACE_UINT32  t  )

ACE_UINT32 ACE_Name_Request::value_len ( void   )  const


Member Data Documentation

ACE_WCHAR_T* ACE_Name_Request::name_ [private]

Pointer to the beginning of the name in this->data_.

Transfer buffer.

char* ACE_Name_Request::type_ [private]

Pointer to the beginning of the type in this->data_;.

ACE_WCHAR_T* ACE_Name_Request::value_ [private]

Pointer to the beginning of the value in this->data_;.


The documentation for this class was generated from the following files:
