ACE_Multihomed_INET_Addr Class Reference

Extends ACE_INET_Addr with support for multi-homed addresses. More...

#include <Multihomed_INET_Addr.h>

Inheritance diagram for ACE_Multihomed_INET_Addr:

Inheritance graph
[legend]

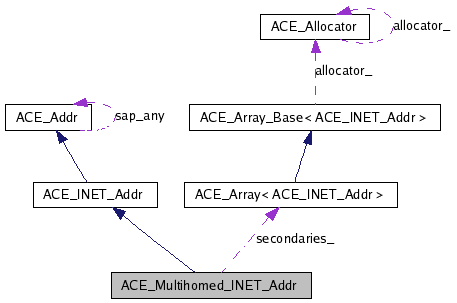

Collaboration diagram for ACE_Multihomed_INET_Addr:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 ACE_Multihomed_INET_Addr (void)
 Default constructor.
 ACE_Multihomed_INET_Addr (const char address[])
 ACE_Multihomed_INET_Addr (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
 ACE_Multihomed_INET_Addr (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
 ACE_Multihomed_INET_Addr (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
int set (u_short port_number, const wchar_t primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const wchar_t *(secondary_host_names[])=0, size_t size=0)
 ~ACE_Multihomed_INET_Addr (void)
 Use compiler-generated copy constructor.
int set (u_short port_number, const char primary_host_name[], int encode=1, int address_family=AF_UNSPEC, const char *(secondary_host_names[])=0, size_t size=0)
int set (u_short port_number, ACE_UINT32 primary_ip_addr=INADDR_ANY, int encode=1, const ACE_UINT32 *secondary_ip_addrs=0, size_t size=0)
void set_port_number (u_short port_number, int encode=1)
size_t get_num_secondary_addresses () const
int get_secondary_addresses (ACE_INET_Addr *secondary_addrs, size_t size) const
void get_addresses (sockaddr_in *addrs, size_t size) const
void get_addresses (sockaddr_in6 *addrs, size_t size) const
 IPV6 version of the above.

Private Attributes

ACE_Array< ACE_INET_Addrsecondaries_


Detailed Description

Extends ACE_INET_Addr with support for multi-homed addresses.

Constructor & Destructor Documentation

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr ( void   )

Default constructor.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr ( const char  address[]  )  [explicit]

Initializes an ACE_Multihomed_INET_Addr from the address, which can be "ip-number:port-number" (e.g., "tango.cs.wustl.edu:1234" or "128.252.166.57:1234"). If there is no ':' in the address it is assumed to be a port number, with the IP address being INADDR_ANY.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr ( u_short  port_number,
const char  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const char *  secondary_host_names[] = 0,
size_t  size = 0
)

Constructs an ACE_Multihomed_INET_Addr from a port_number, a primary_host_name, and an array of <secondary_host_names>. size is taken to be the length of the array. If encode is non-zero, then port_number is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. address_family can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr ( u_short  port_number,
ACE_UINT32  primary_ip_addr = INADDR_ANY,
int  encode = 1,
const ACE_UINT32 *  secondary_ip_addrs = 0,
size_t  size = 0
)

Constructs an ACE_Multihomed_INET_Addr from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

ACE_Multihomed_INET_Addr::ACE_Multihomed_INET_Addr ( u_short  port_number,
const wchar_t  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const wchar_t *  secondary_host_names[] = 0,
size_t  size = 0
)

WCHAR versions of the methods that take char's as arguments.

ACE_Multihomed_INET_Addr::~ACE_Multihomed_INET_Addr ( void   )

Use compiler-generated copy constructor.

Use compiler-generated assignment operator. Default dtor.


Member Function Documentation

void ACE_Multihomed_INET_Addr::get_addresses ( sockaddr_in6 *  addrs,
size_t  size
) const

IPV6 version of the above.

void ACE_Multihomed_INET_Addr::get_addresses ( sockaddr_in *  addrs,
size_t  size
) const

Initialize user-supplied array addrs with the the current primary and secondary addresses. size is taken as the size of this array.

size_t ACE_Multihomed_INET_Addr::get_num_secondary_addresses (  )  const

Returns the number of secondary addresses.

int ACE_Multihomed_INET_Addr::get_secondary_addresses ( ACE_INET_Addr secondary_addrs,
size_t  size
) const

Initialize user-supplied array secondary_addrs with the current secondary addresses. size is taken as the size of this array.

int ACE_Multihomed_INET_Addr::set ( u_short  port_number,
ACE_UINT32  primary_ip_addr = INADDR_ANY,
int  encode = 1,
const ACE_UINT32 *  secondary_ip_addrs = 0,
size_t  size = 0
)

Initializes an ACE_Multihomed_INET_Addr from a port_number, a primary_ip_addr, and an array of secondary_ip_addrs. size is taken to be the length of the array. If encode is non-zero, then the port number and the IP addresses are converted into network byte order; otherwise they are assumed to be in network byte order already and are passed straight through.

int ACE_Multihomed_INET_Addr::set ( u_short  port_number,
const char  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const char *  secondary_host_names[] = 0,
size_t  size = 0
)

Initializes an ACE_Multihomed_INET_Addr from a port_number, a primary_host_name, and an array of <secondary_host_names>. size is taken to be the length of the array. If encode is non-zero, then port_number is converted into network byte order; otherwise it is assumed to be in network byte order already and is passed straight through. address_family can be used to select IPv4/IPv6 if the OS has IPv6 capability (ACE_HAS_IPV6 is defined). To specify IPv6, use the value AF_INET6. To specify IPv4, use AF_INET.

int ACE_Multihomed_INET_Addr::set ( u_short  port_number,
const wchar_t  primary_host_name[],
int  encode = 1,
int  address_family = AF_UNSPEC,
const wchar_t *  secondary_host_names[] = 0,
size_t  size = 0
)

void ACE_Multihomed_INET_Addr::set_port_number ( u_short  port_number,
int  encode = 1
)

Sets the port number without affecting the host name. The port numbers of the primary address, and of any and all secondary addresses, are affected. If encode is enabled, then port_number is converted into network byte order, otherwise it is assumed to be in network byte order already and is passed straight through.

Reimplemented from ACE_INET_Addr.


Member Data Documentation


The documentation for this class was generated from the following files:
