ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 > Class Template Reference

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER. More...

#include <Strategies_T.h>

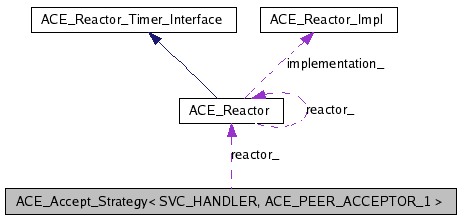

Collaboration diagram for ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >:

Collaboration graph
[legend]

List of all members.

Public Types

typedef ACE_PEER_ACCEPTOR_ADDR addr_type
typedef ACE_PEER_ACCEPTOR acceptor_type
typedef SVC_HANDLER handler_type
typedef SVC_HANDLER::stream_type stream_type

Public Member Functions

 ACE_Accept_Strategy (ACE_Reactor *reactor=ACE_Reactor::instance())
 Default constructor.
 ACE_Accept_Strategy (const ACE_PEER_ACCEPTOR_ADDR &local_addr, bool restart=false, ACE_Reactor *reactor=ACE_Reactor::instance())
 Initialize the peer_acceptor_ with local_addr.
virtual int open (const ACE_PEER_ACCEPTOR_ADDR &local_addr, bool reuse_addr=false)
virtual ACE_HANDLE get_handle (void) const
 Return the underlying ACE_HANDLE of the <peer_acceptor_>.
virtual ACE_PEER_ACCEPTOR & acceptor (void) const
 Return a reference to the <peer_acceptor_>.
virtual ~ACE_Accept_Strategy (void)
virtual int accept_svc_handler (SVC_HANDLER *)
void dump (void) const
 Dump the state of an object.

Public Attributes

 ACE_ALLOC_HOOK_DECLARE
 Declare the dynamic allocation hooks.

Protected Attributes

ACE_PEER_ACCEPTOR peer_acceptor_
 Factory that establishes connections passively.
ACE_Reactorreactor_
 Pointer to the reactor used by the Acceptor.
bool reuse_addr_
 Needed to reopen the socket if <accept> fails.
ACE_PEER_ACCEPTOR_ADDR peer_acceptor_addr_
 Needed to reopen the socket if <accept> fails.


Detailed Description

template<class SVC_HANDLER, ACE_PEER_ACCEPTOR_1>
class ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >

Defines the interface for specifying a passive connection acceptance strategy for a SVC_HANDLER.

This class provides a strategy that manages passive connection acceptance of a client.


Member Typedef Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::acceptor_type

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::addr_type

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::handler_type

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
typedef SVC_HANDLER::stream_type ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::stream_type


Constructor & Destructor Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::ACE_Accept_Strategy ( ACE_Reactor reactor = ACE_Reactor::instance ()  )  [inline]

Default constructor.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::ACE_Accept_Strategy ( const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
bool  restart = false,
ACE_Reactor reactor = ACE_Reactor::instance ()
) [inline]

Initialize the peer_acceptor_ with local_addr.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::~ACE_Accept_Strategy ( void   )  [inline, virtual]


Member Function Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
int ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::accept_svc_handler ( SVC_HANDLER *  svc_handler  )  [inline, virtual]

The default behavior delegates to the <accept> method of the PEER_ACCEPTOR.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR & ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::acceptor ( void   )  const [inline, virtual]

Return a reference to the <peer_acceptor_>.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
void ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::dump ( void   )  const [inline]

Dump the state of an object.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_HANDLE ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::get_handle ( void   )  const [inline, virtual]

Return the underlying ACE_HANDLE of the <peer_acceptor_>.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
int ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::open ( const ACE_PEER_ACCEPTOR_ADDR &  local_addr,
bool  reuse_addr = false
) [inline, virtual]

Initialize the <peer_acceptor_> with local_addr, indicating whether to reuse_addr if it's already in use.


Member Data Documentation

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::ACE_ALLOC_HOOK_DECLARE

Declare the dynamic allocation hooks.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::peer_acceptor_ [protected]

Factory that establishes connections passively.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_PEER_ACCEPTOR_ADDR ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::peer_acceptor_addr_ [protected]

Needed to reopen the socket if <accept> fails.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
ACE_Reactor* ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::reactor_ [protected]

Pointer to the reactor used by the Acceptor.

template<class SVC_HANDLER , ACE_PEER_ACCEPTOR_1 >
bool ACE_Accept_Strategy< SVC_HANDLER, ACE_PEER_ACCEPTOR_1 >::reuse_addr_ [protected]

Needed to reopen the socket if <accept> fails.


The documentation for this class was generated from the following files:
