TAO_Operation_Details Class Reference

Class with operation details. More...

#include <operation_details.h>

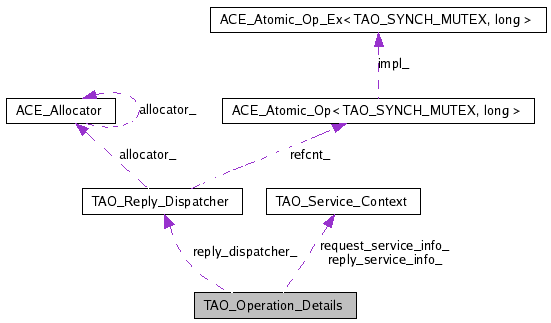

Collaboration diagram for TAO_Operation_Details:

Collaboration graph
[legend]

List of all members.

Public Member Functions

 TAO_Operation_Details (const char *name, CORBA::ULong len, TAO::Argument **args=0, CORBA::ULong num_args=0, TAO::Exception_Data *ex_data=0, CORBA::ULong ex_count=0)
 Constructor.
const char * opname (void) const
 Operation name.
CORBA::ULong opname_len (void) const
 Length of the operation name.
CORBA::Boolean argument_flag (void) const
void response_flags (CORBA::Octet flags)
 Set the response flags.
CORBA::Octet response_flags (void) const
 Get the response flags.
IOP::ServiceContextList & request_service_info (void)
 Accessors for the service context list.
const IOP::ServiceContextList & request_service_info (void) const
IOP::ServiceContextList & reply_service_info (void)
const IOP::ServiceContextList & reply_service_info (void) const
TAO_Service_Contextrequest_service_context (void)
 Access the TAO_Service_Context.
const TAO_Service_Contextrequest_service_context (void) const
TAO_Service_Contextreply_service_context (void)
const TAO_Service_Contextreply_service_context (void) const
void reset_request_service_info (void)
 Reset the contents of the service context lists that we hold.
void reset_reply_service_info (void)
void request_id (CORBA::ULong id)
 Cache the request id.
CORBA::ULong request_id (void) const
 Return the request ID associated with the operation.
TAO_Target_Specification::TAO_Target_Address addressing_mode (void) const
 Accessor method for the addressing mode.
void addressing_mode (CORBA::Short addr)
 Set method for the addressing mode.
CORBA::Exceptioncorba_exception (const char *ex) const
bool has_exception (::CORBA::Exception &ex) const
 Check whether exception ex is in the signature of this operation.

Friends

class TAO::CSD::FW_Server_Request_Wrapper

Helper methods used by the Invocation classes.

const char * opname_
 Name of the operation being invoked.
CORBA::ULong opname_len_
 Precalculated length of opname_.
CORBA::ULong request_id_
 Request ID of this operation.
CORBA::Octet response_flags_
 Response flags.
TAO_Service_Context request_service_info_
TAO_Service_Context reply_service_info_
TAO_Target_Specification::TAO_Target_Address addressing_mode_
 Addressing mode for this request.
TAO::Argument ** args_
CORBA::ULong num_args_
 Number of arguments including the return value.
TAO::Exception_Data * ex_data_
 The type of exceptions that the operations can throw.
CORBA::ULong ex_count_
 Count of the exceptions that operations can throw.
CORBA::Boolean use_stub_args_
TimeBase::TimeT ft_expiration_time_
 FT request expiration time (absolute gregorian).
CORBA::Long ft_retention_id_
 FT request retention id.
TAO::Collocated_Arguments_Converter * cac_
 The optional collocated arguments converter.
TAO_Reply_Dispatcherreply_dispatcher_
 The optional reply dispatcher.
bool marshal_args (TAO_OutputCDR &cdr)
 Marshals the list of <this->arg_> into the cdr.
bool demarshal_args (TAO_InputCDR &cdr)
 Demarshals the list of <this->arg_> into the cdr.
TAO::Argument ** args (void) const
 Accessors for the argument list.
CORBA::ULong args_num (void) const
 Name of the operation being invoked.
CORBA::ULong ex_count (void) const
 Exception count.
TAO::Exception_Data const * ex_data (void) const
 Name of the operation being invoked.
CORBA::Boolean use_stub_args (void) const
 Name of the operation being invoked.
void use_stub_args (CORBA::Boolean use_stub_arguments)
 Name of the operation being invoked.
void ft_expiration_time (TimeBase::TimeT time)
 Name of the operation being invoked.
TimeBase::TimeT ft_expiration_time (void) const
 Name of the operation being invoked.
void ft_retention_id (CORBA::Long request_id)
 Name of the operation being invoked.
CORBA::Long ft_retention_id (void) const
 Name of the operation being invoked.
TAO::Collocated_Arguments_Converter * cac (void) const
 Accessor for cac_ pointer.
void cac (TAO::Collocated_Arguments_Converter *cac)
 Name of the operation being invoked.
TAO_Reply_Dispatcherreply_dispatcher (void) const
 Name of the operation being invoked.
void reply_dispatcher (TAO_Reply_Dispatcher *rd)
 Name of the operation being invoked.


Detailed Description

Class with operation details.

This class stores some of the "operation" details that would be required by the invocation classes. This class is in its infancy now but I expect this one to grow as we come with different varieties of use cases.

Todo:
Put this in namespace TAO.

Constructor & Destructor Documentation

TAO_Operation_Details::TAO_Operation_Details ( const char *  name,
CORBA::ULong  len,
TAO::Argument **  args = 0,
CORBA::ULong  num_args = 0,
TAO::Exception_Data *  ex_data = 0,
CORBA::ULong  ex_count = 0
)

Constructor.


Member Function Documentation

void TAO_Operation_Details::addressing_mode ( CORBA::Short  addr  )

Set method for the addressing mode.

TAO_Target_Specification::TAO_Target_Address TAO_Operation_Details::addressing_mode ( void   )  const

Accessor method for the addressing mode.

TAO::Argument ** TAO_Operation_Details::args ( void   )  const

Accessors for the argument list.

CORBA::ULong TAO_Operation_Details::args_num ( void   )  const

Name of the operation being invoked.

CORBA::Boolean TAO_Operation_Details::argument_flag ( void   )  const

Return the flag that indicates whether the operation has any arguments

void TAO_Operation_Details::cac ( TAO::Collocated_Arguments_Converter *  cac  )

Name of the operation being invoked.

TAO::Collocated_Arguments_Converter * TAO_Operation_Details::cac ( void   )  const

Accessor for cac_ pointer.

CORBA::Exception * TAO_Operation_Details::corba_exception ( const char *  ex  )  const

Creates and returns a CORBA::Exception object whose repository id ex matches the exception list that this operation specified. This step is important to decode the exception that the client got from the server. If the exception received from the server is not found in the list of exceptions specified by the operation this call would raise an UNKNOWN exception.

bool TAO_Operation_Details::demarshal_args ( TAO_InputCDR cdr  )

Demarshals the list of <this->arg_> into the cdr.

CORBA::ULong TAO_Operation_Details::ex_count ( void   )  const

Exception count.

TAO::Exception_Data const * TAO_Operation_Details::ex_data ( void   )  const

Name of the operation being invoked.

TimeBase::TimeT TAO_Operation_Details::ft_expiration_time ( void   )  const

Name of the operation being invoked.

void TAO_Operation_Details::ft_expiration_time ( TimeBase::TimeT  time  )

Name of the operation being invoked.

CORBA::Long TAO_Operation_Details::ft_retention_id ( void   )  const

Name of the operation being invoked.

void TAO_Operation_Details::ft_retention_id ( CORBA::Long  request_id  )

Name of the operation being invoked.

bool TAO_Operation_Details::has_exception ( ::CORBA::Exception ex  )  const

Check whether exception ex is in the signature of this operation.

bool TAO_Operation_Details::marshal_args ( TAO_OutputCDR cdr  )

Marshals the list of <this->arg_> into the cdr.

const char * TAO_Operation_Details::opname ( void   )  const

Operation name.

CORBA::ULong TAO_Operation_Details::opname_len ( void   )  const

Length of the operation name.

void TAO_Operation_Details::reply_dispatcher ( TAO_Reply_Dispatcher rd  )

Name of the operation being invoked.

TAO_Reply_Dispatcher * TAO_Operation_Details::reply_dispatcher ( void   )  const

Name of the operation being invoked.

const TAO_Service_Context & TAO_Operation_Details::reply_service_context ( void   )  const

TAO_Service_Context & TAO_Operation_Details::reply_service_context ( void   )

const IOP::ServiceContextList & TAO_Operation_Details::reply_service_info ( void   )  const

IOP::ServiceContextList & TAO_Operation_Details::reply_service_info ( void   )

CORBA::ULong TAO_Operation_Details::request_id ( void   )  const

Return the request ID associated with the operation.

void TAO_Operation_Details::request_id ( CORBA::ULong  id  )

Cache the request id.

const TAO_Service_Context & TAO_Operation_Details::request_service_context ( void   )  const

TAO_Service_Context & TAO_Operation_Details::request_service_context ( void   )

Access the TAO_Service_Context.

const IOP::ServiceContextList & TAO_Operation_Details::request_service_info ( void   )  const

IOP::ServiceContextList & TAO_Operation_Details::request_service_info ( void   )

Accessors for the service context list.

void TAO_Operation_Details::reset_reply_service_info ( void   )

void TAO_Operation_Details::reset_request_service_info ( void   )

Reset the contents of the service context lists that we hold.

CORBA::Octet TAO_Operation_Details::response_flags ( void   )  const

Get the response flags.

void TAO_Operation_Details::response_flags ( CORBA::Octet  flags  )

Set the response flags.

void TAO_Operation_Details::use_stub_args ( CORBA::Boolean  use_stub_arguments  )

Name of the operation being invoked.

CORBA::Boolean TAO_Operation_Details::use_stub_args ( void   )  const

Name of the operation being invoked.


Friends And Related Function Documentation

friend class TAO::CSD::FW_Server_Request_Wrapper [friend]

Declare FW_Server_Request_Wrapper a friend This friendship makes the FW_Server_Request_Wrapper be able to clone the TAO_Operation_Details data member in TAO_ServerRequest.


Member Data Documentation

Addressing mode for this request.

TAO::Argument** TAO_Operation_Details::args_ [private]

The arguments of this operation. Note that the return value is also an argument

TAO::Collocated_Arguments_Converter* TAO_Operation_Details::cac_ [private]

The optional collocated arguments converter.

Count of the exceptions that operations can throw.

TAO::Exception_Data* TAO_Operation_Details::ex_data_ [private]

The type of exceptions that the operations can throw.

TimeBase::TimeT TAO_Operation_Details::ft_expiration_time_ [private]

FT request expiration time (absolute gregorian).

FT request retention id.

Number of arguments including the return value.

const char* TAO_Operation_Details::opname_ [private]

Name of the operation being invoked.

Precalculated length of opname_.

The optional reply dispatcher.

The ServiceContextList received from the server side. Only valid when sending a request.

Request ID of this operation.

The ServiceContextList sent to the server side. Only valid when sending a request.

Response flags.

Boolean flag to indicate whether in the skeletons the stub arguments stored in these operation details should be used or not.


The documentation for this class was generated from the following files:
